Exploded View: Disassembly

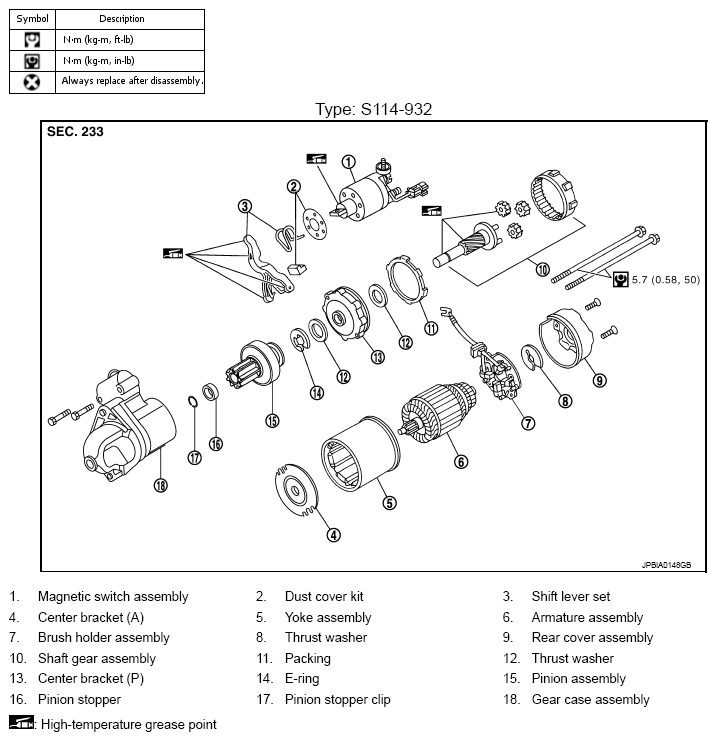

Fig 1: Disassembled View Of Starter Motor With Torque Specifications (Type - S114-932)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
