Exploded View

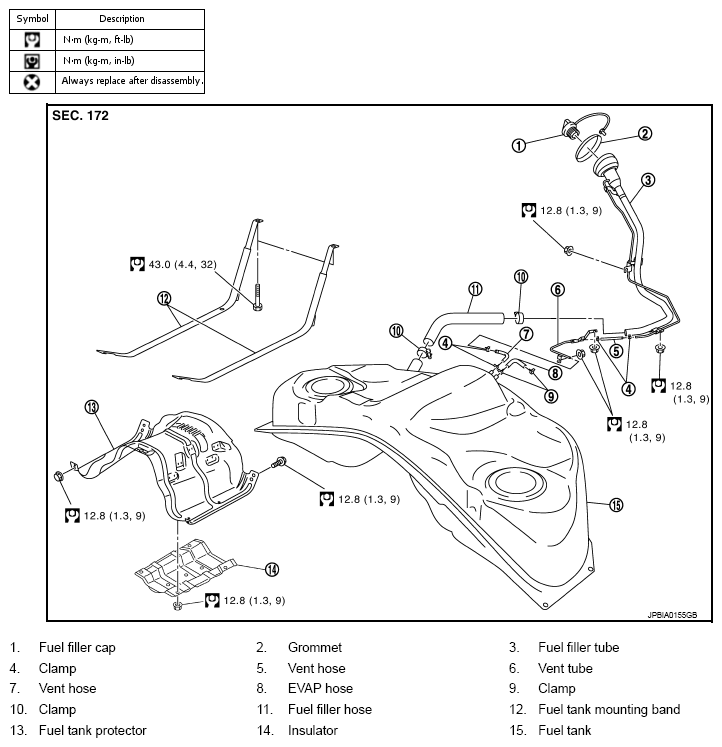

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
G07156524Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for to symbols in the figure.
