Component Parts Location

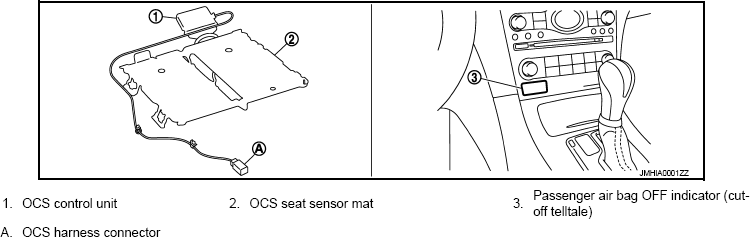

Fig 1: Identifying Occupant Classification System Component Parts Location
G07169190Courtesy of NISSAN MOTOR CO., U.S.A.
