Consult-III/GST Checking System: Description

When CONSULT-III/GST is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

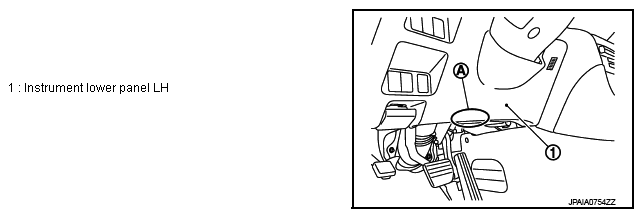

Fig 1: Identifying Data Link Connector And Instrument Lower Panel LH
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to the CONSULT-III Software Operation Instructions for more information.
