Exploded View

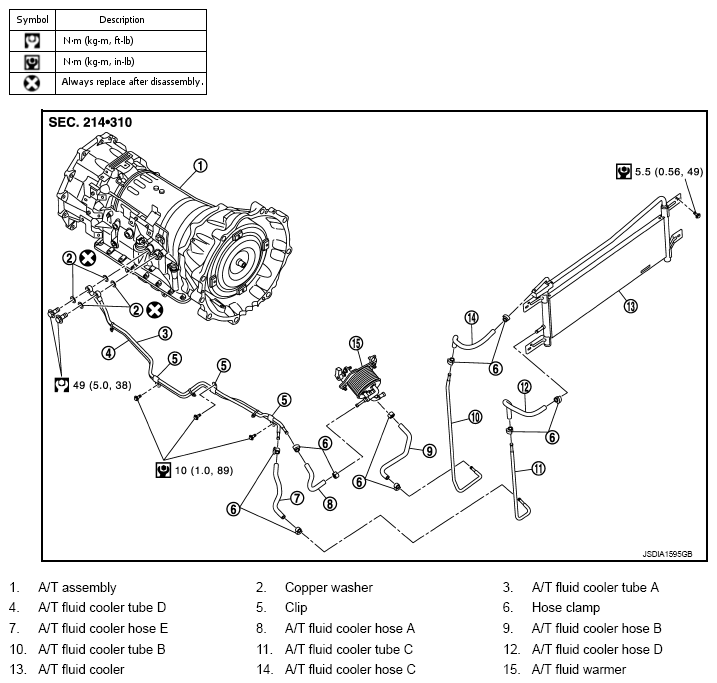

Fig 1: Fluid Cooler System Replacement Components With Torque Specifications
G07023101Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
