4WD : Exploded View

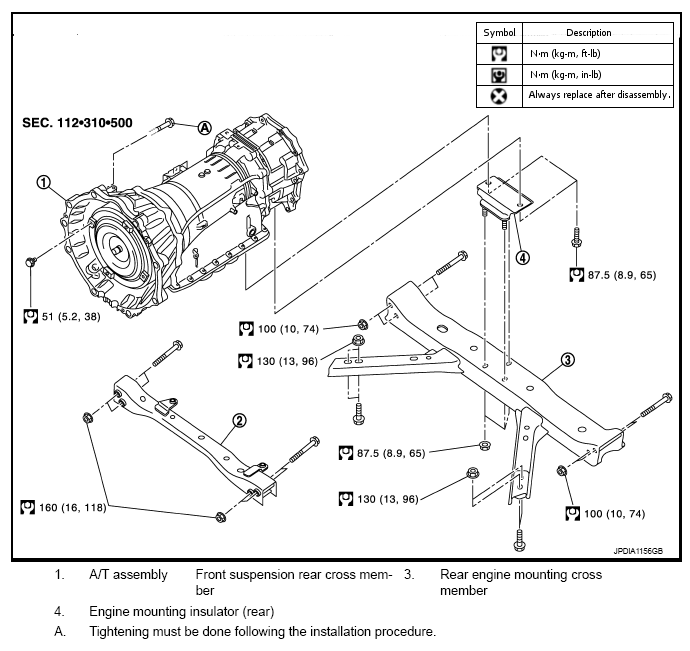

Fig 1: Identifying Transmission Assembly Components (4WD)
G07023111Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
