Driver Seat

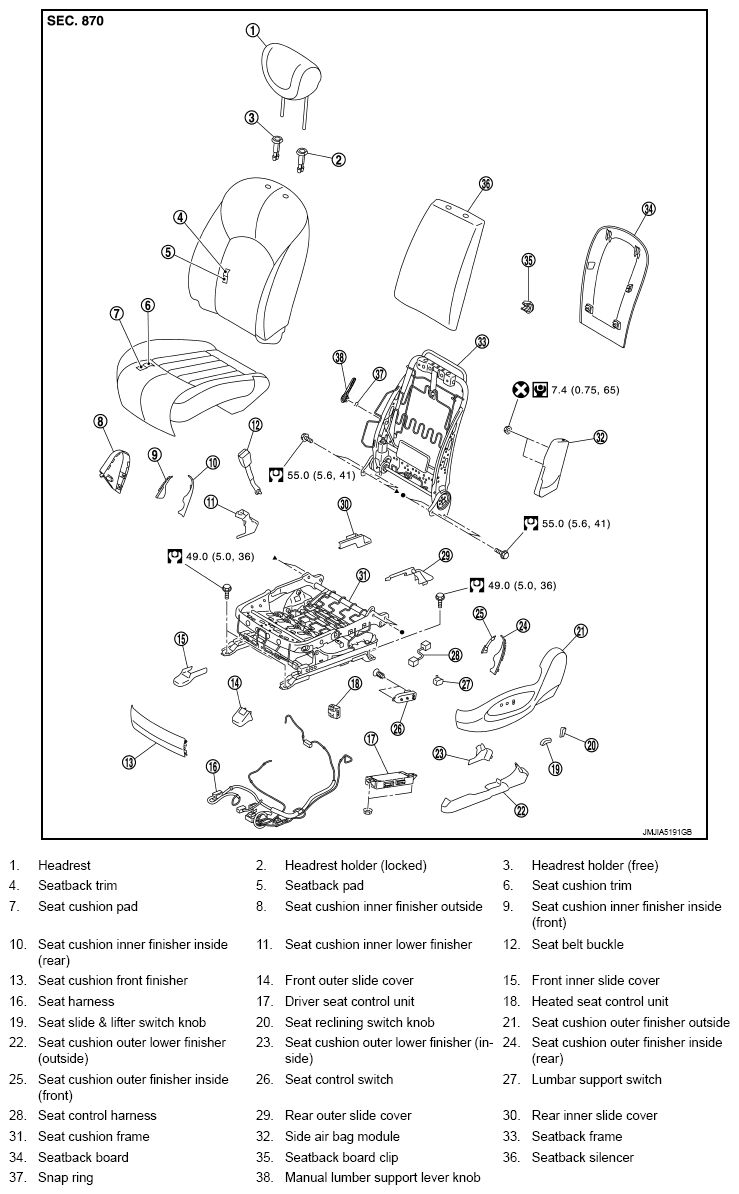

Fig 1: Exploded View Of Driver Seat With Torque Specifications
G08195708Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
