Fuse Circuits

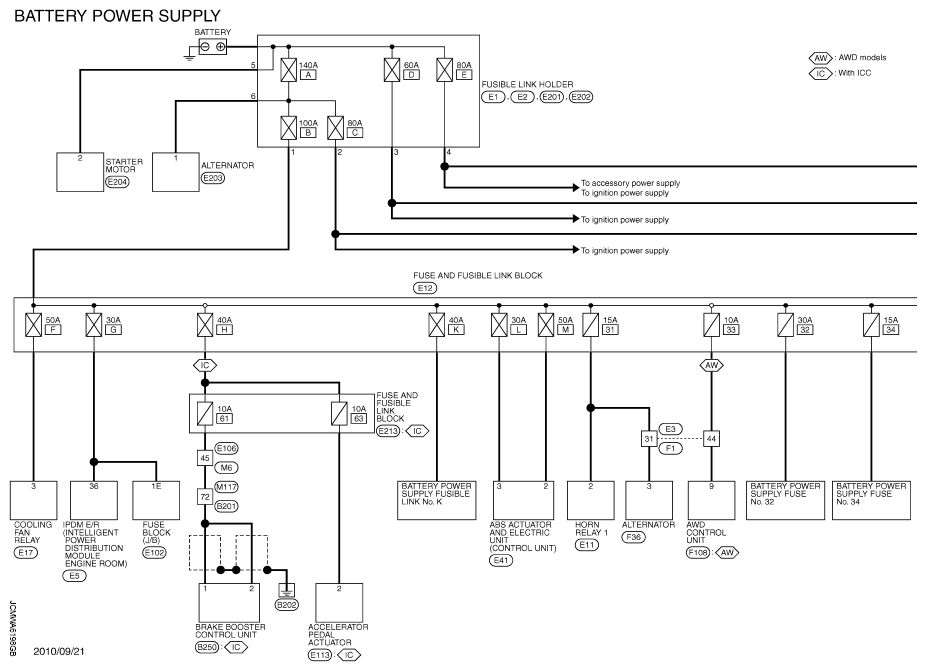

Fig 1: Battery Power Supply - Wiring Diagram (1 Of 4)

G07163605

Courtesy of NISSAN MOTOR CO., U.S.A.

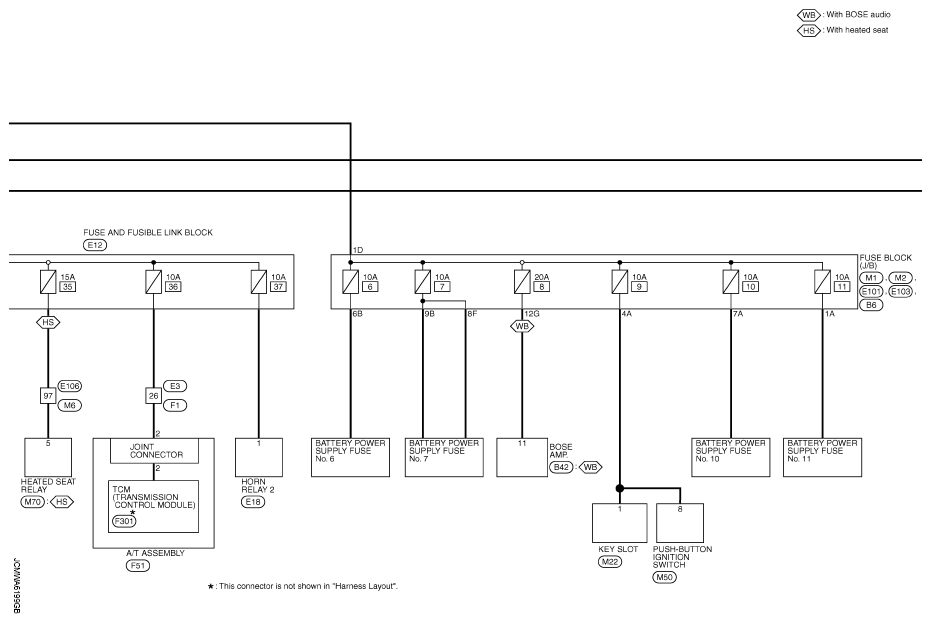

Fig 2: Battery Power Supply - Wiring Diagram (2 Of 4)

G07163606

Courtesy of NISSAN MOTOR CO., U.S.A.

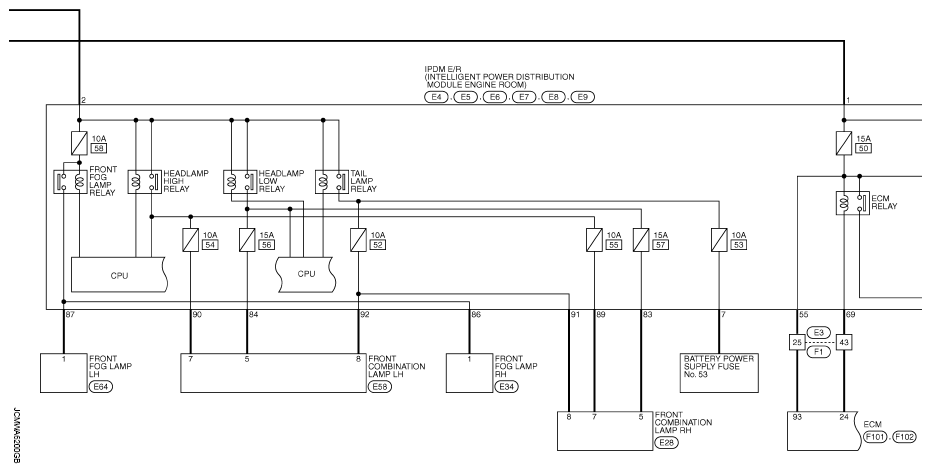

Fig 3: Battery Power Supply - Wiring Diagram (3 Of 4)

G07163607

Courtesy of NISSAN MOTOR CO., U.S.A.

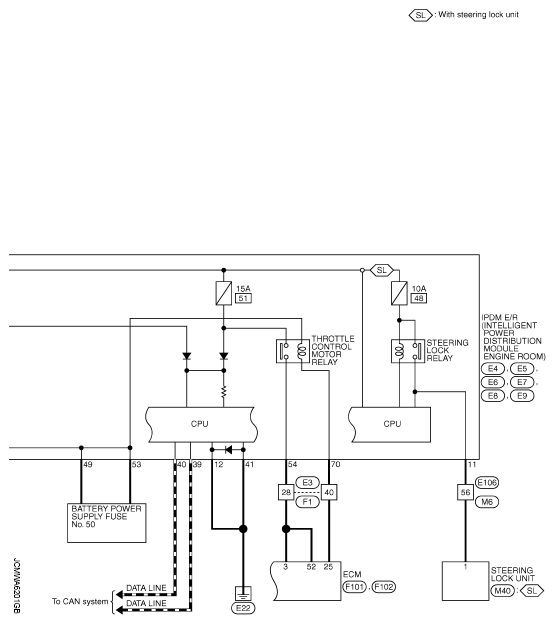

Fig 4: Battery Power Supply - Wiring Diagram (4 Of 4)

G07163608

Courtesy of NISSAN MOTOR CO., U.S.A.

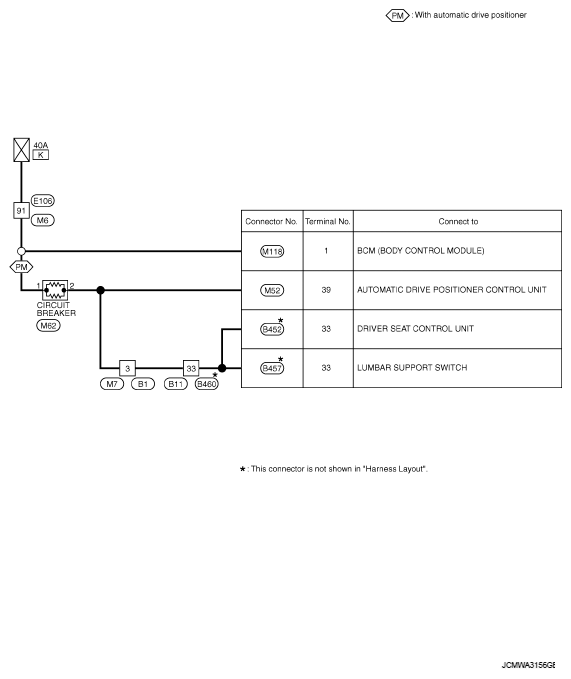

Fig 5: Battery Power Supply Fusible Link No. K - Wiring Diagram

G06296007

Courtesy of NISSAN MOTOR CO., U.S.A.

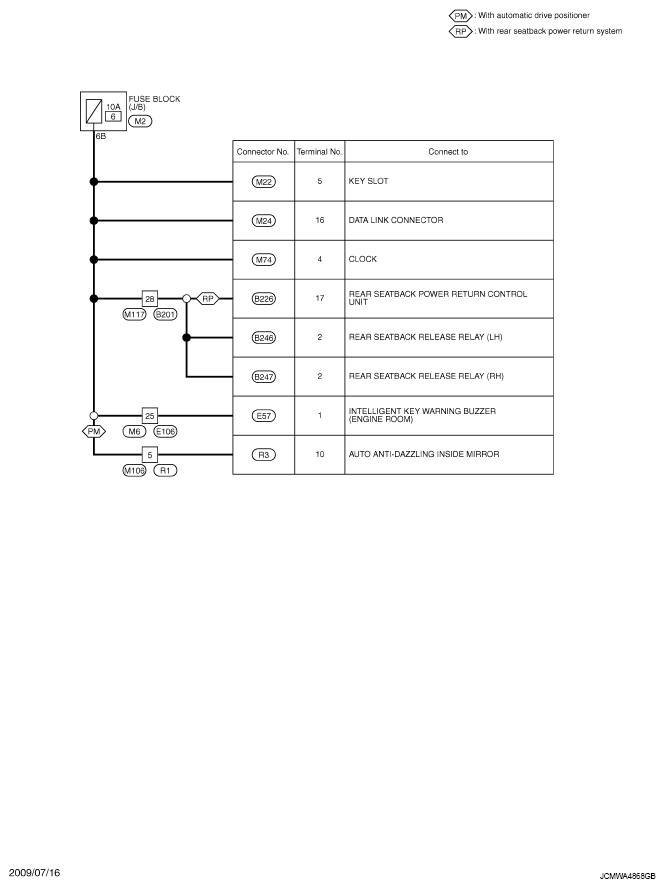

Fig 6: Battery Power Supply Fuse No. 6 - Wiring Diagram

G07163622

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Battery Power Supply Fuse No. 7 - Wiring Diagram

G07163627

Courtesy of NISSAN MOTOR CO., U.S.A.

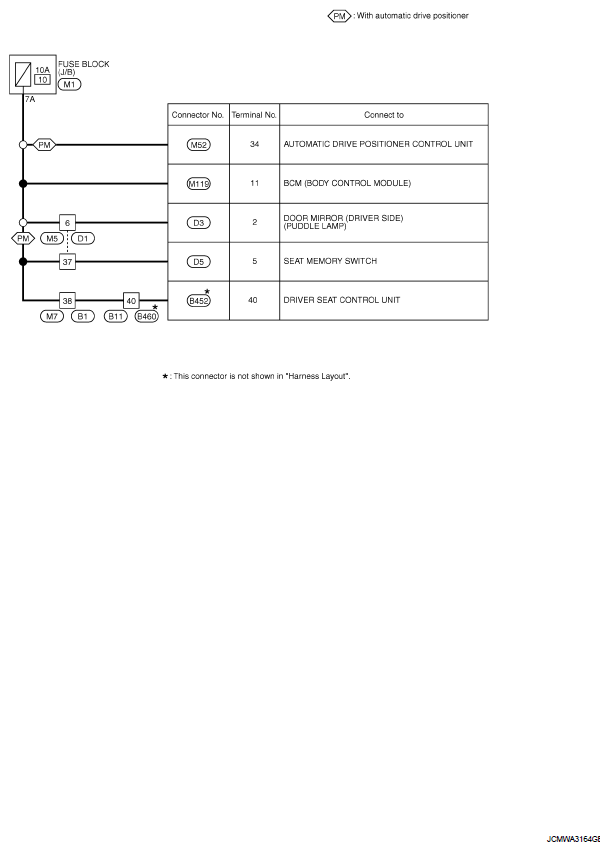

Fig 8: Battery Power Supply Fuse No. 10 - Wiring Diagram

G06296015

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Battery Power Supply Fuse No. 11 - Wiring Diagram

G07163634

Courtesy of NISSAN MOTOR CO., U.S.A.

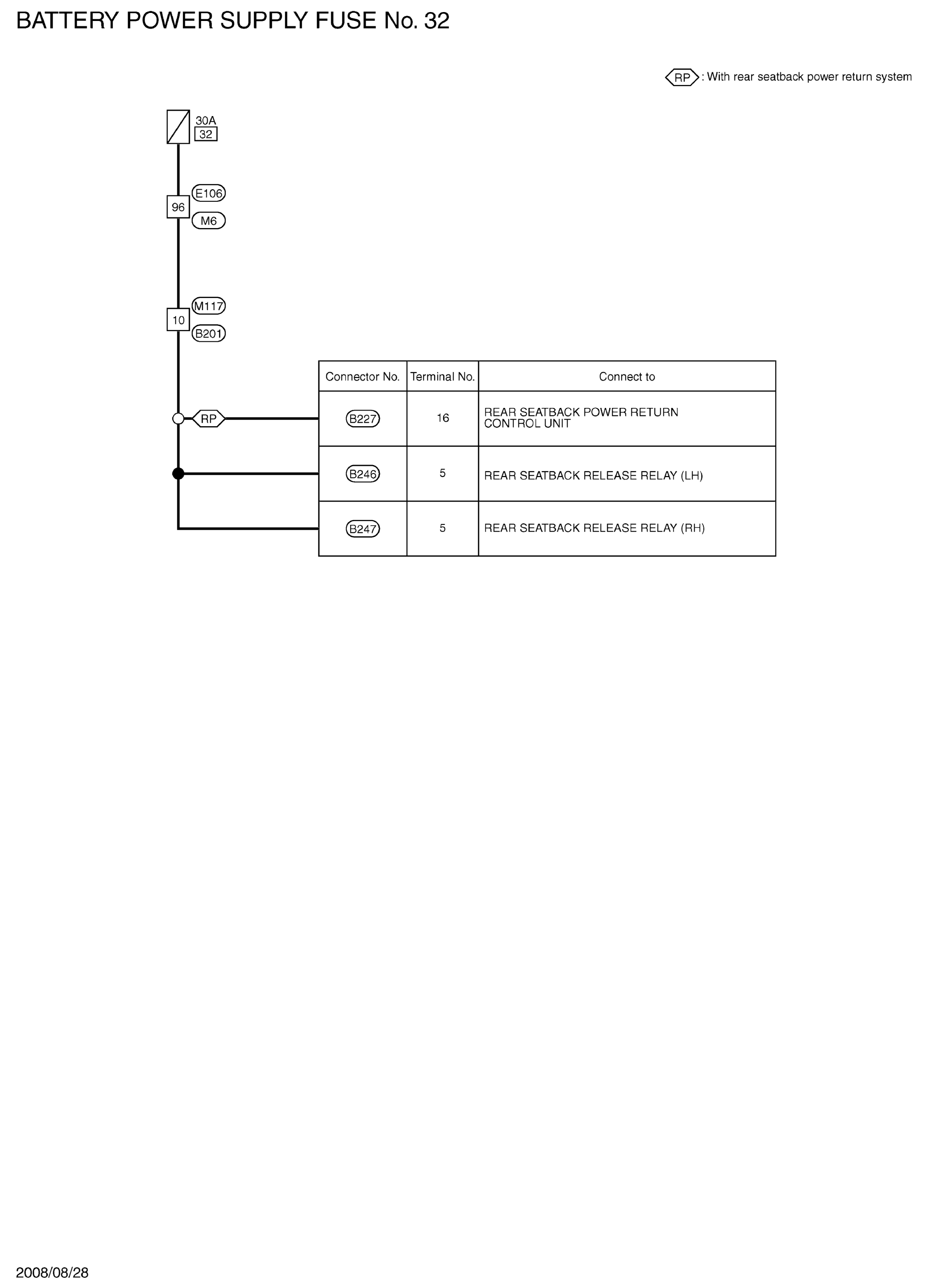

Fig 10: Battery Power Supply Fuse No. 32 - Wiring Diagram

G06296018

Courtesy of NISSAN MOTOR CO., U.S.A.

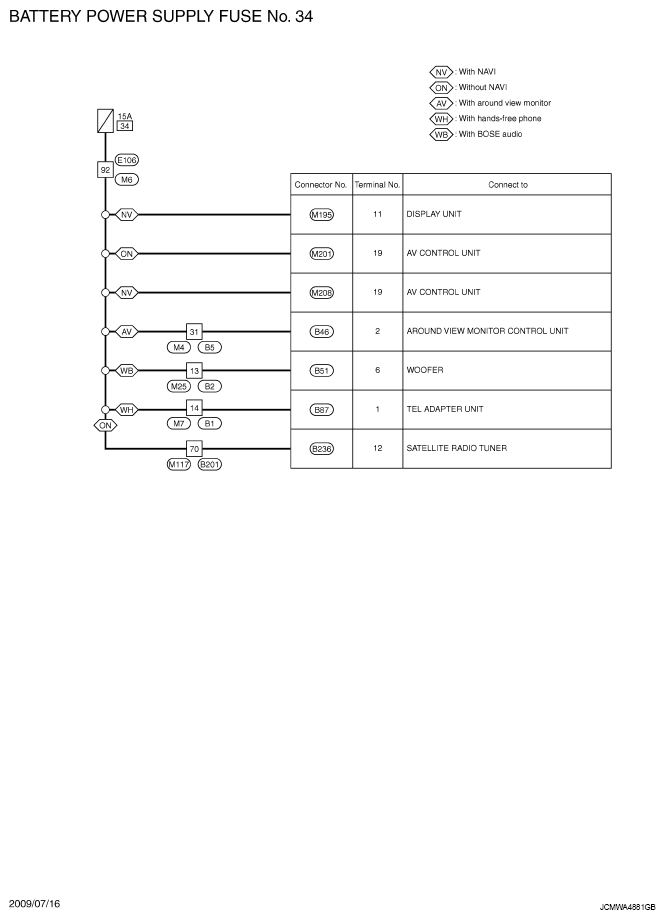

Fig 11: Battery Power Supply Fuse No. 34 - Wiring Diagram

G07163640

Courtesy of NISSAN MOTOR CO., U.S.A.

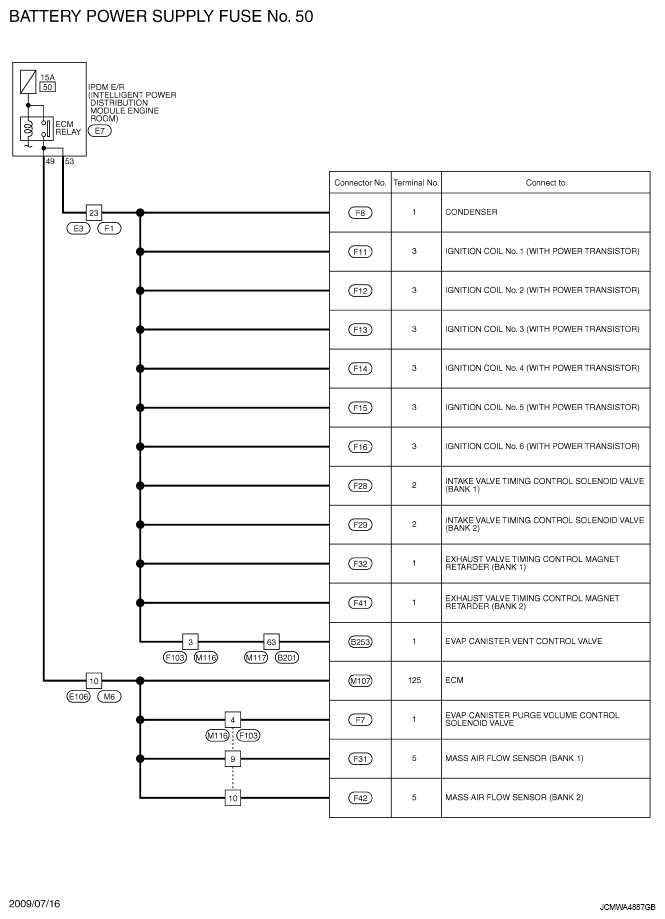

Fig 12: Battery Power Supply Fuse No. 50 - Wiring Diagram

G07163646

Courtesy of NISSAN MOTOR CO., U.S.A.

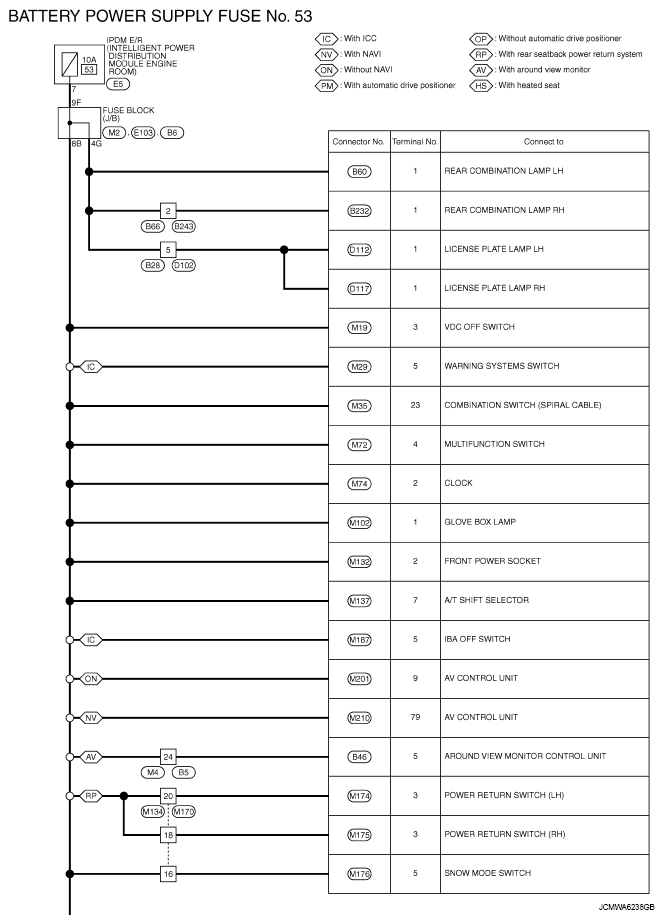

Fig 13: Battery Power Supply Fuse No. 53 - Wiring Diagram (1 Of 2)

G07163652

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Battery Power Supply Fuse No. 53 - Wiring Diagram (2 Of 2)

G07163653

Courtesy of NISSAN MOTOR CO., U.S.A.

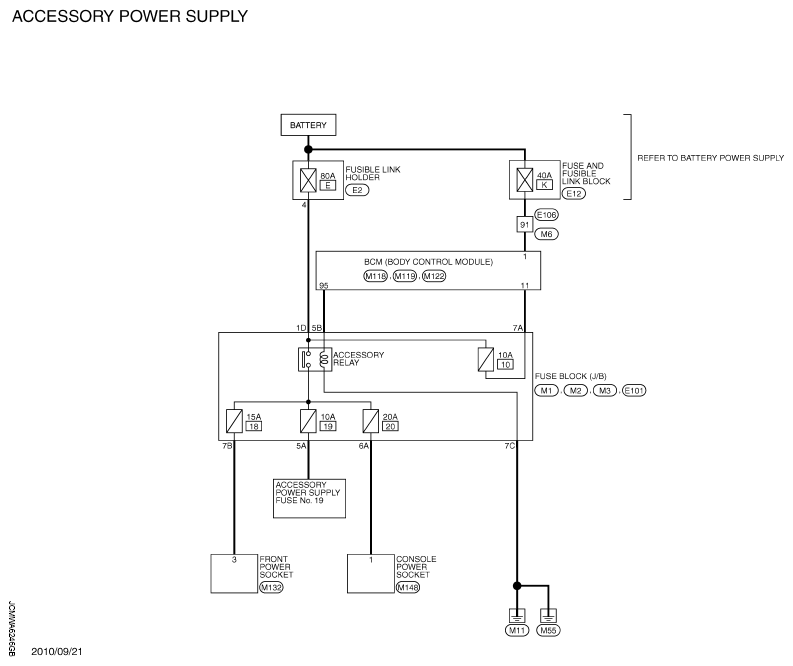

Fig 15: Accessory Power Supply - Wiring Diagram

G07163660

Courtesy of NISSAN MOTOR CO., U.S.A.

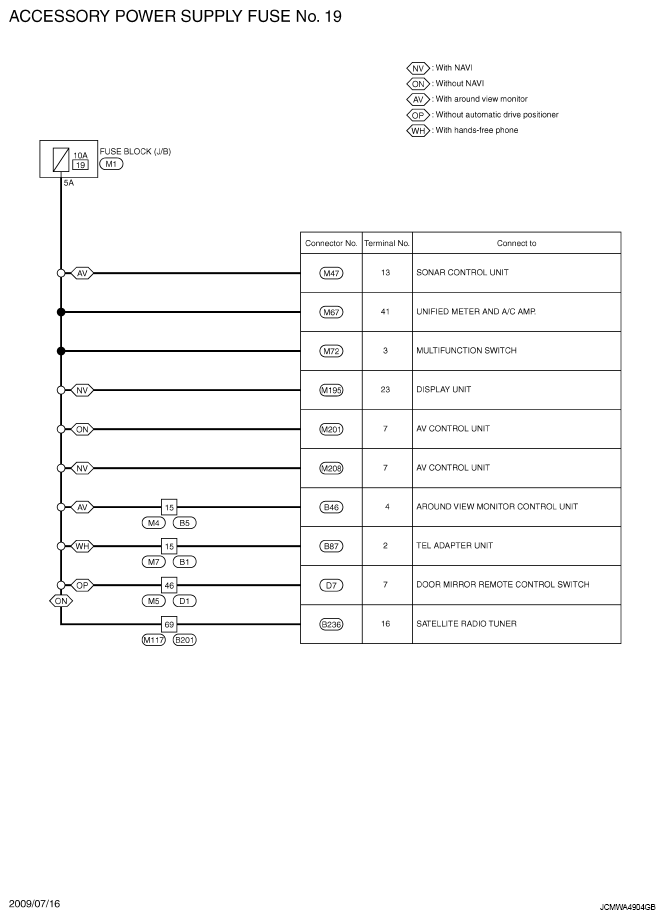

Fig 16: Accessory Power Supply Fuse No. 19 - Wiring Diagram

G07163664

Courtesy of NISSAN MOTOR CO., U.S.A.

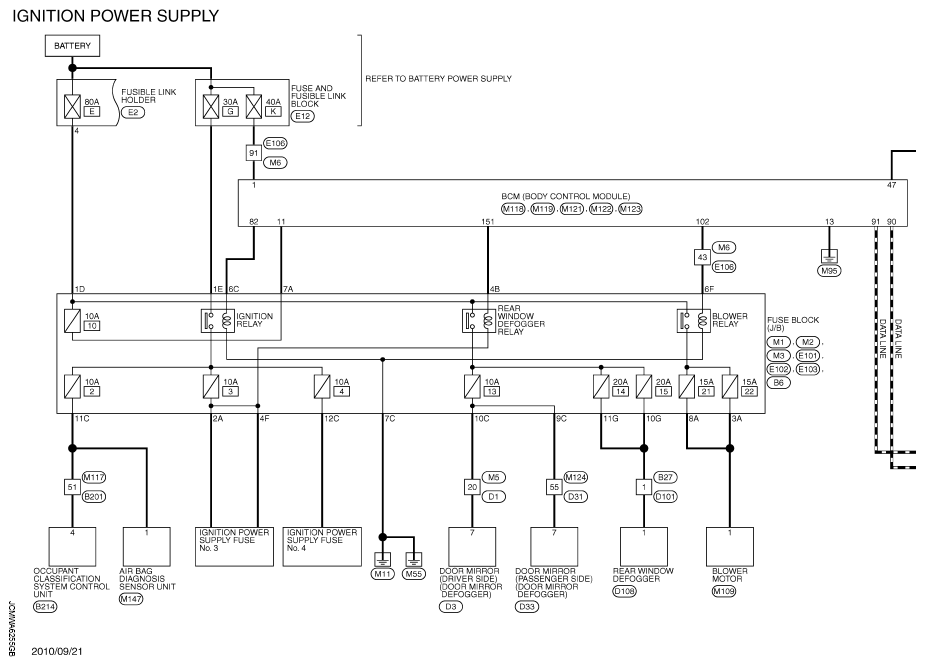

Fig 17: Ignition Power Supply - Wiring Diagram (1 Of 3)

G07163670

Courtesy of NISSAN MOTOR CO., U.S.A.

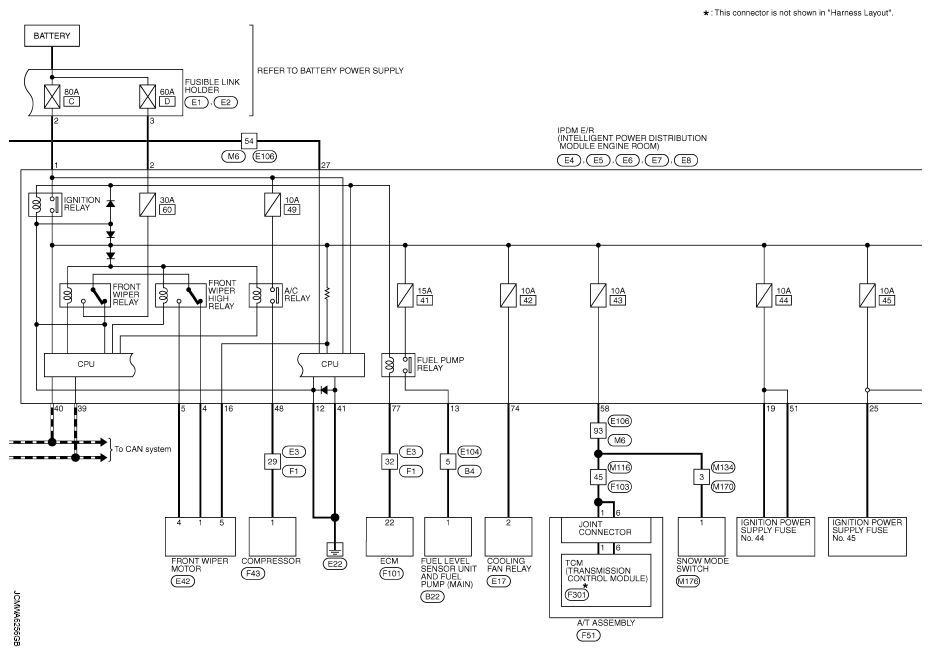

Fig 18: Ignition Power Supply - Wiring Diagram (2 Of 3)

G07163671

Courtesy of NISSAN MOTOR CO., U.S.A.

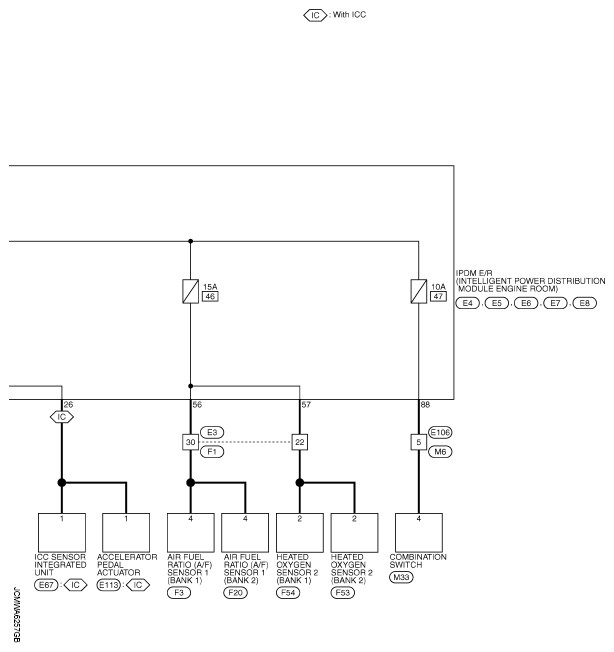

Fig 19: Ignition Power Supply - Wiring Diagram (3 Of 3)

G07163672

Courtesy of NISSAN MOTOR CO., U.S.A.

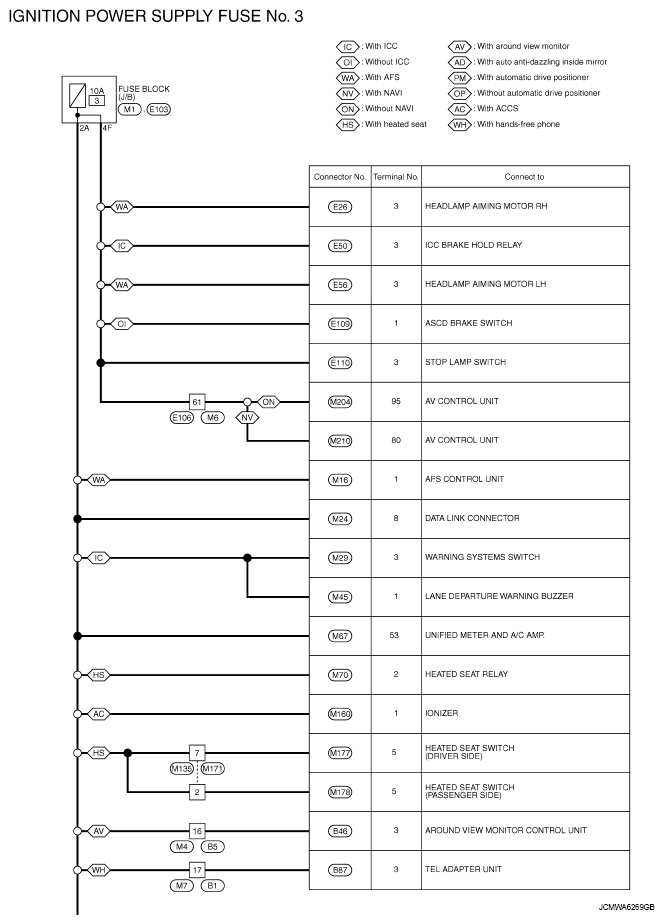

Fig 20: Ignition Power Supply Fuse No. 3 - Wiring Diagram (1 Of 2)

G07163684

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Ignition Power Supply Fuse No. 3 - Wiring Diagram (2 Of 2)

G07163685

Courtesy of NISSAN MOTOR CO., U.S.A.

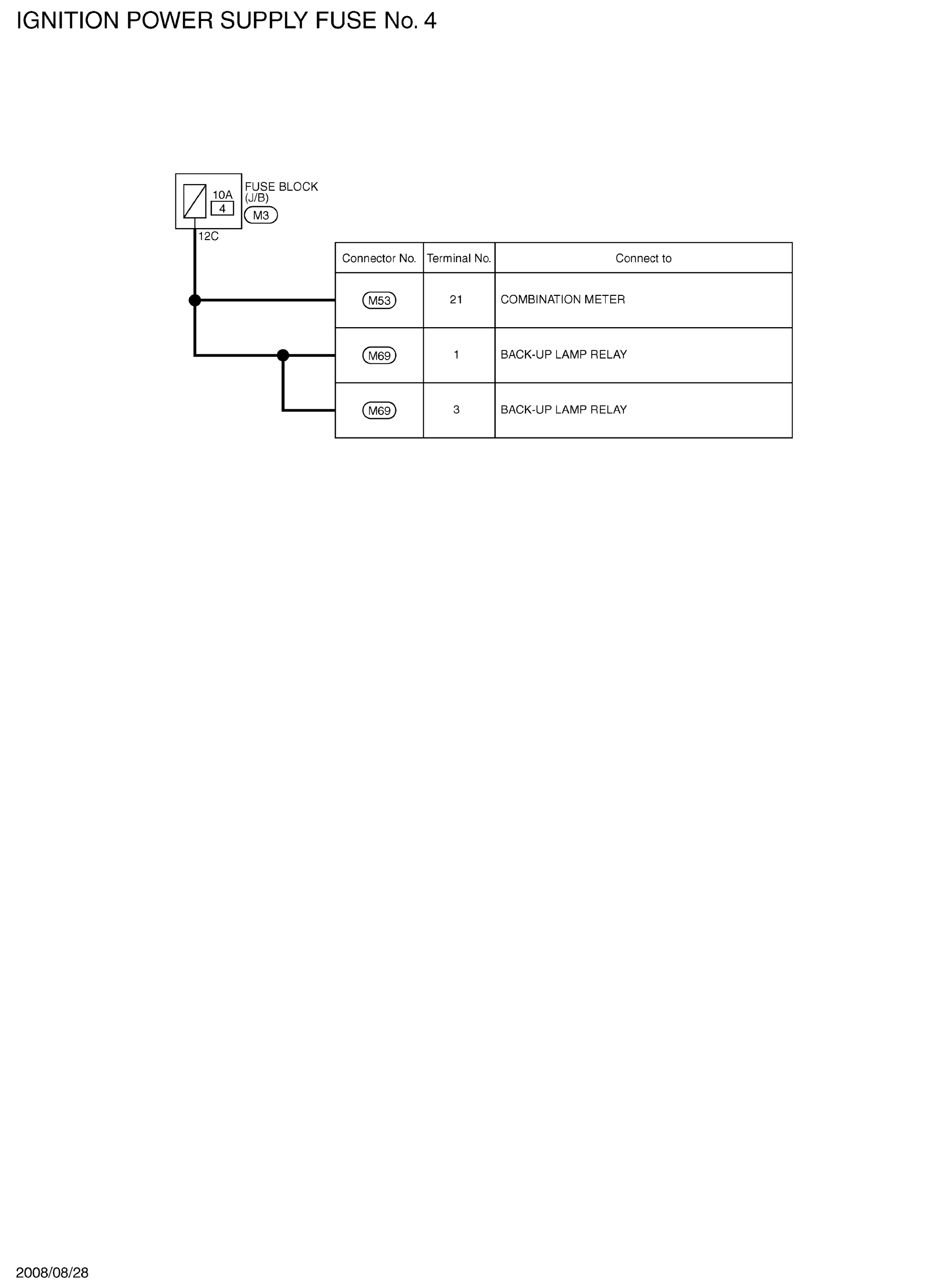

Fig 22: Ignition Power Supply Fuse No. 4 - Wiring Diagram

G06296061

Courtesy of NISSAN MOTOR CO., U.S.A.

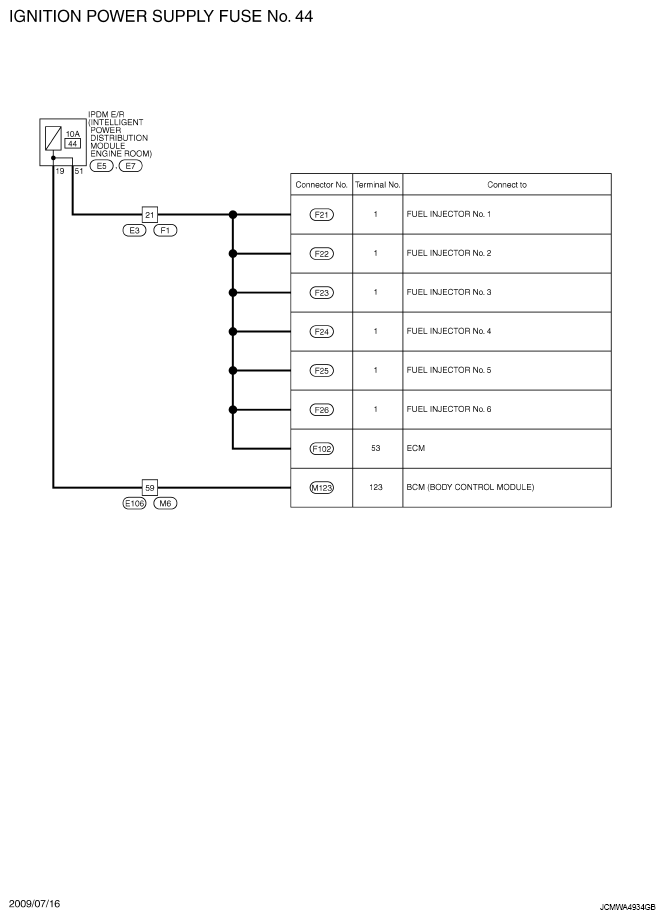

Fig 23: Ignition Power Supply Fuse No. 44 - Wiring Diagram

G07163696

Courtesy of NISSAN MOTOR CO., U.S.A.

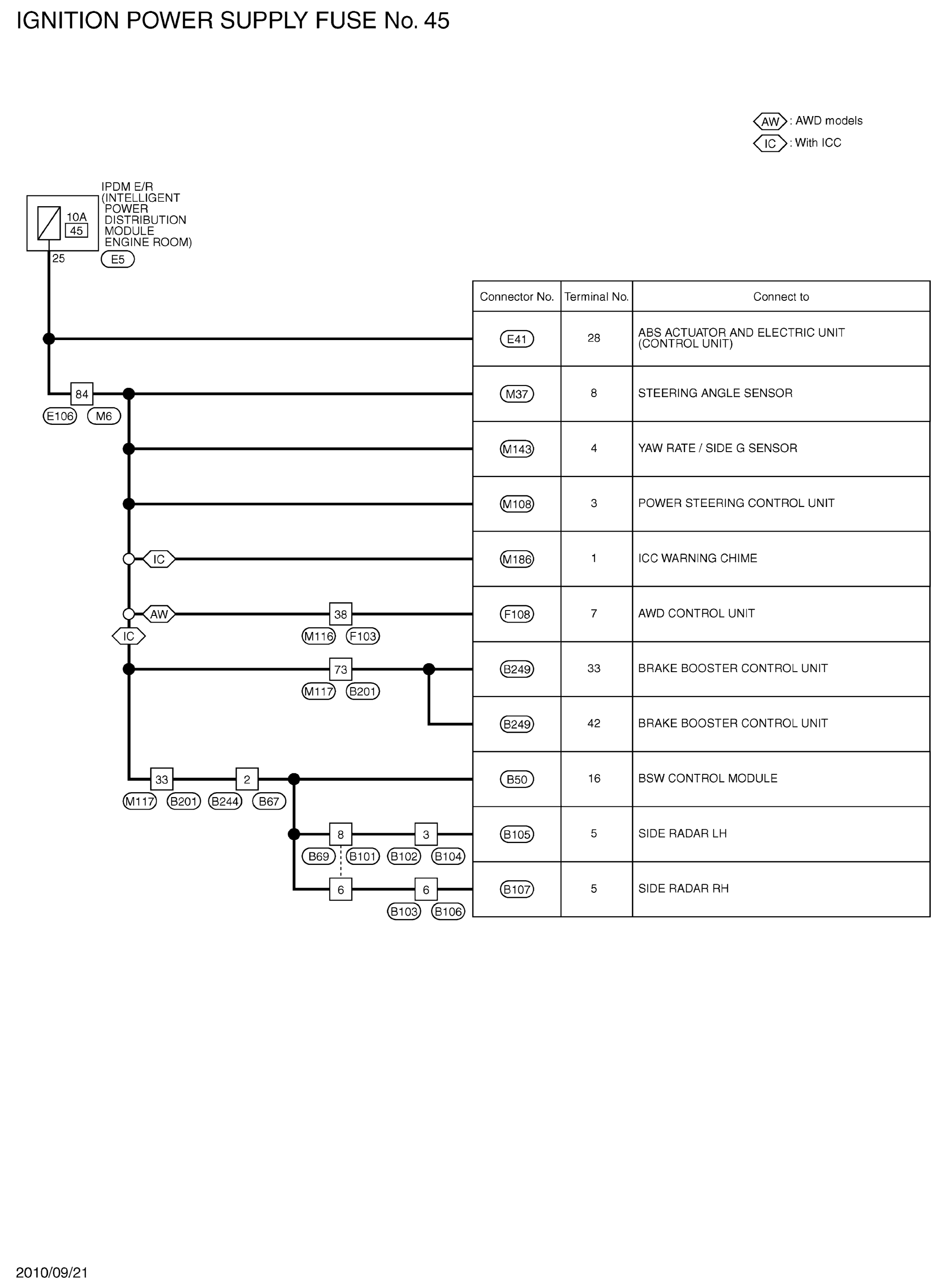

Fig 24: Ignition Power Supply Fuse No. 45 - Wiring Diagram

G07163701

Courtesy of NISSAN MOTOR CO., U.S.A.
