Connecting Rod Bearing Selection Table

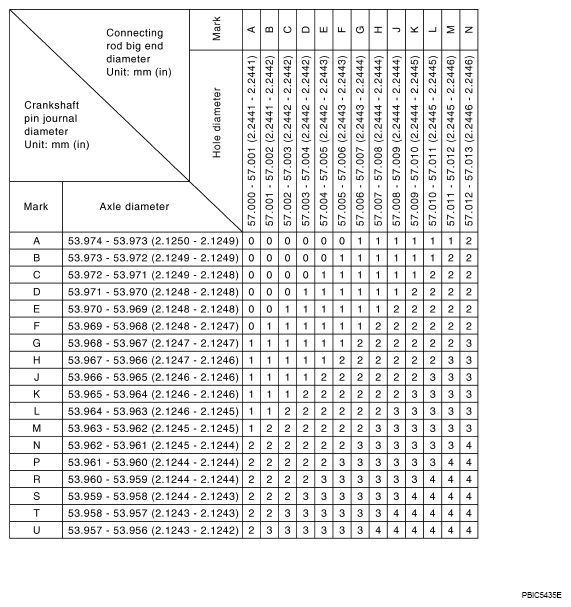

Fig 1: Connecting Rod Bearing Selection Chart
G08193509Courtesy of NISSAN NORTH AMERICA, INC.
