Exploded View

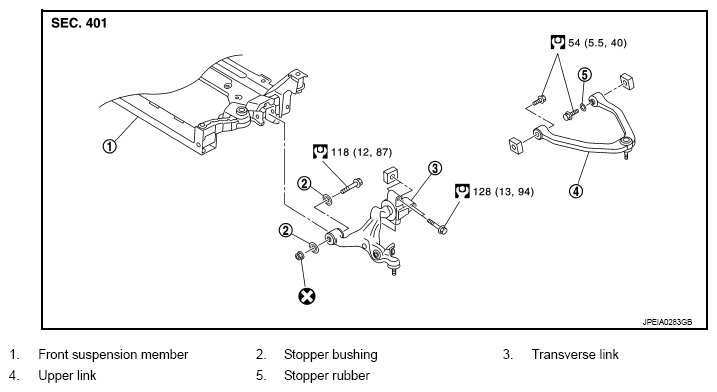

Fig 1: Exploded View Of Upper Link With Torque Specifications
G08194221Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
