Component Parts Location

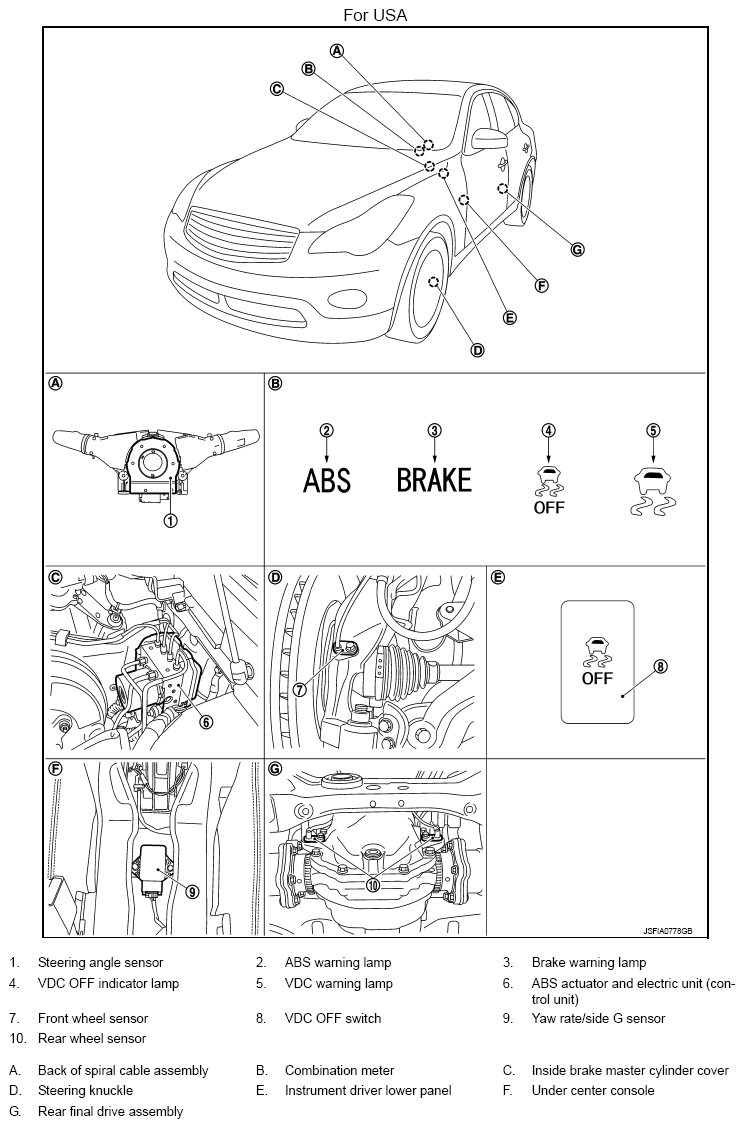

Fig 1: TCS Components Location (For USA)
G08194261Courtesy of NISSAN NORTH AMERICA, INC.

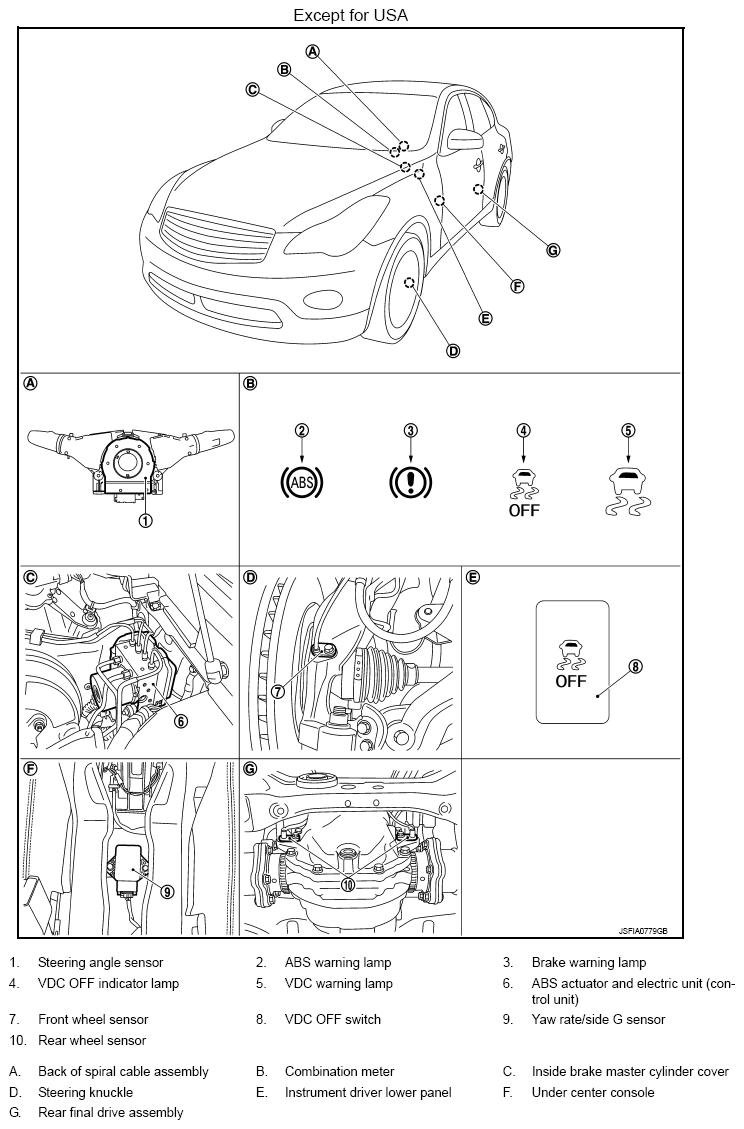

Fig 2: TCS Components Location (Except For USA)
G08194262Courtesy of NISSAN NORTH AMERICA, INC.
