AWD Models

Fig 1: Exploded View Of Transmission Assembly (AWD Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

*: Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Refer to "COMPONENTS " for symbols not described on the above.

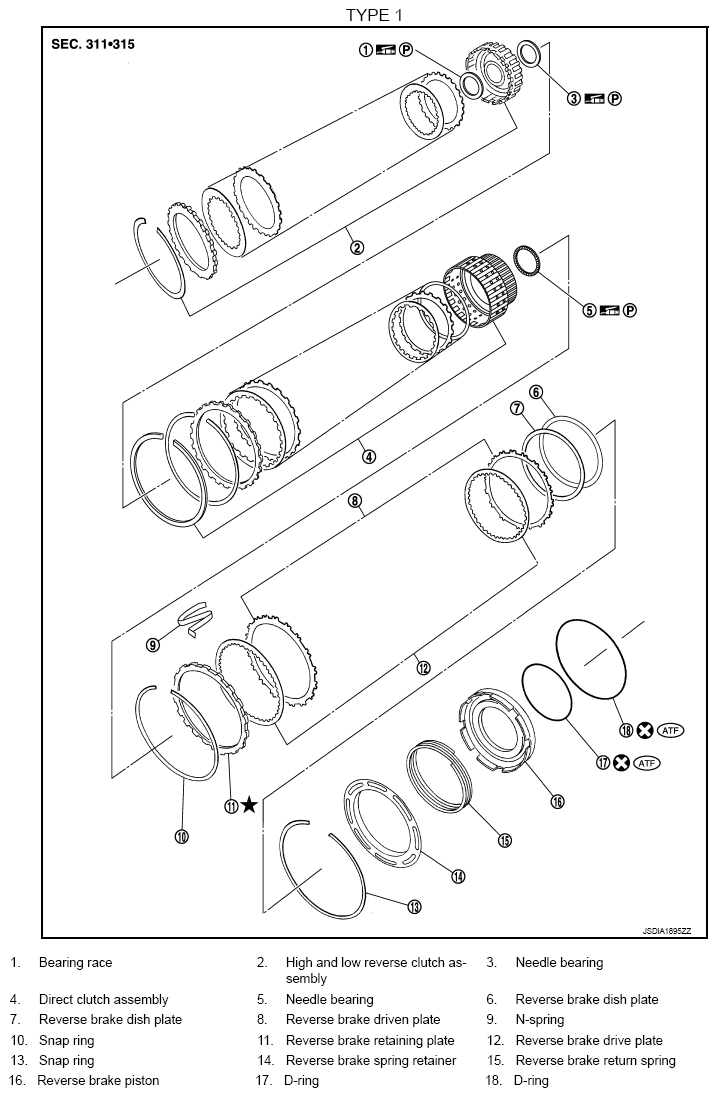

Fig 2: Exploded View Of Transmission Assembly Components (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

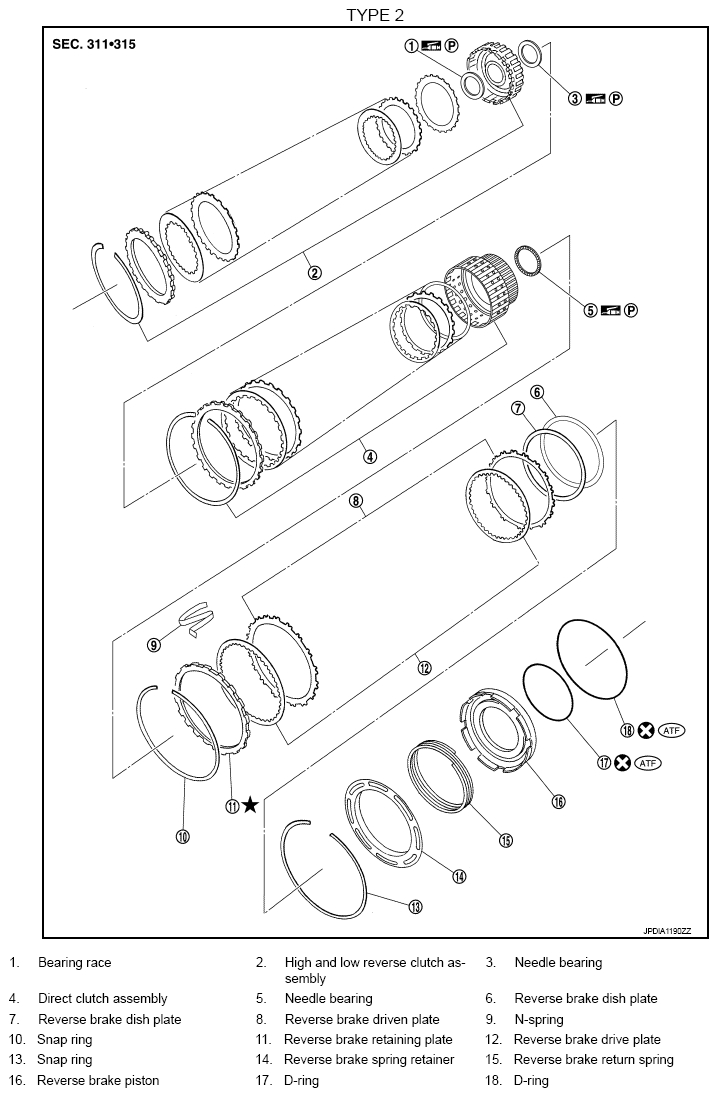

Fig 3: Exploded View Of Transmission Assembly Components (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

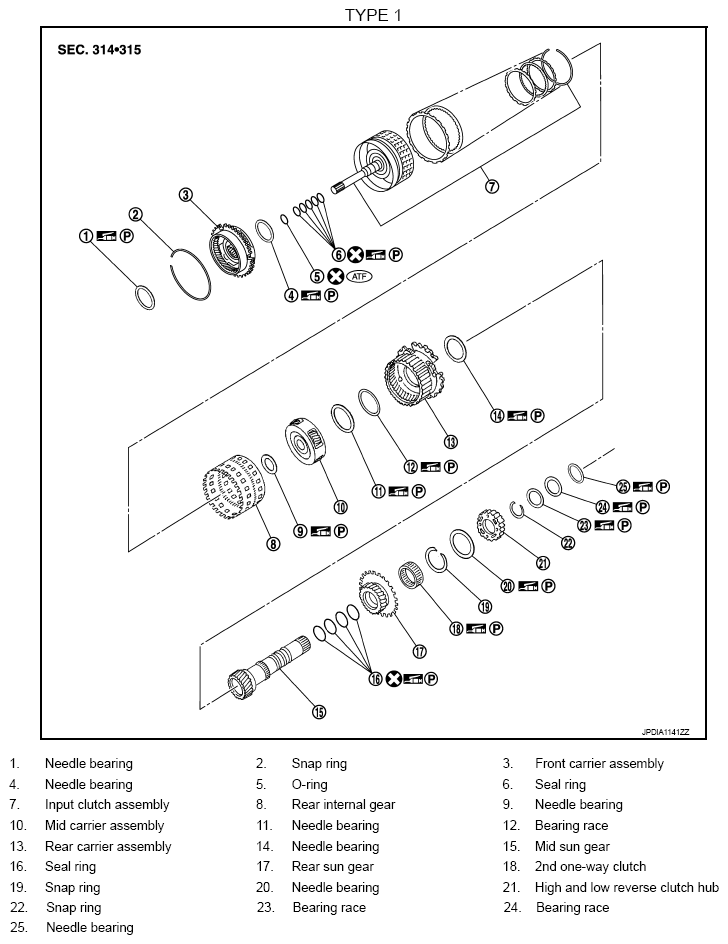

Fig 4: Exploded View Of Transmission Assembly Components (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

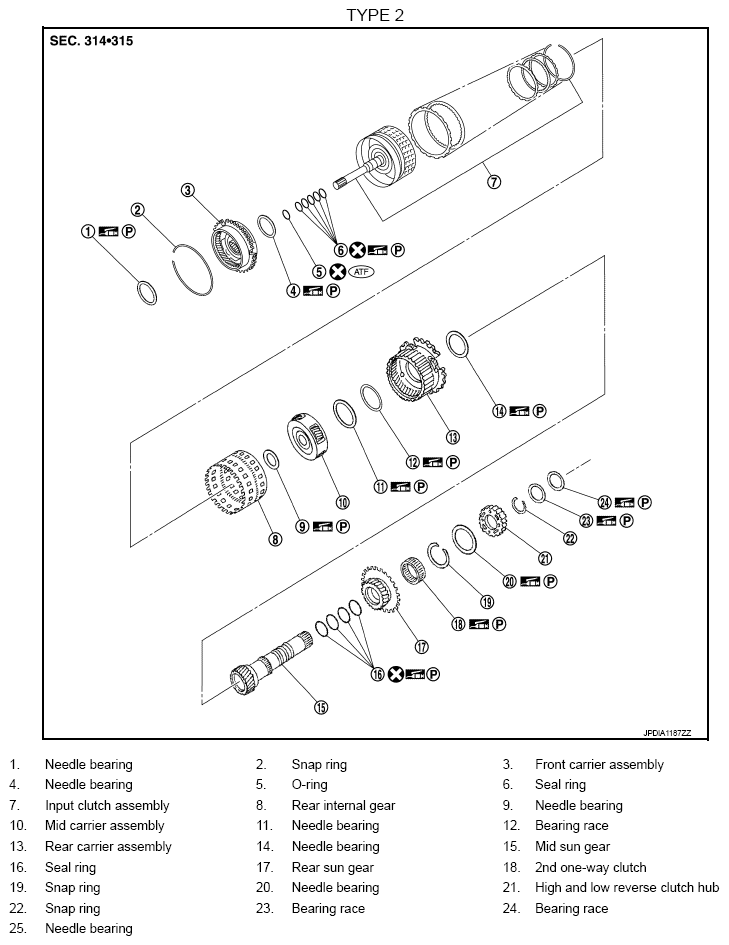

Fig 5: Exploded View Of Transmission Assembly Components (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

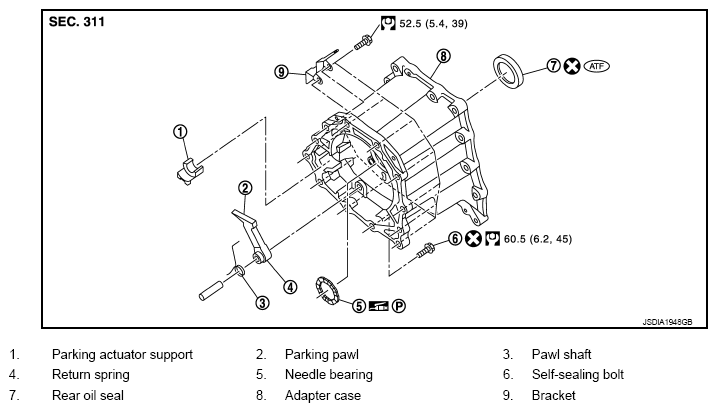

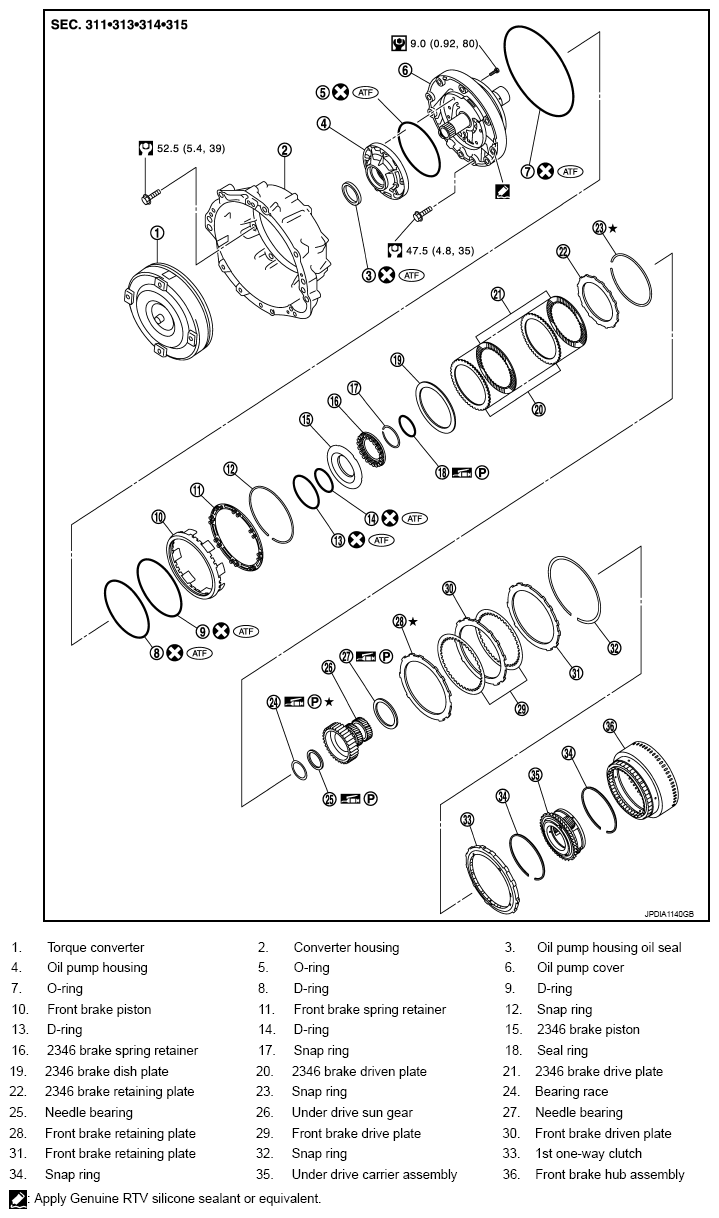

Fig 6: Exploded View Of Transmission Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

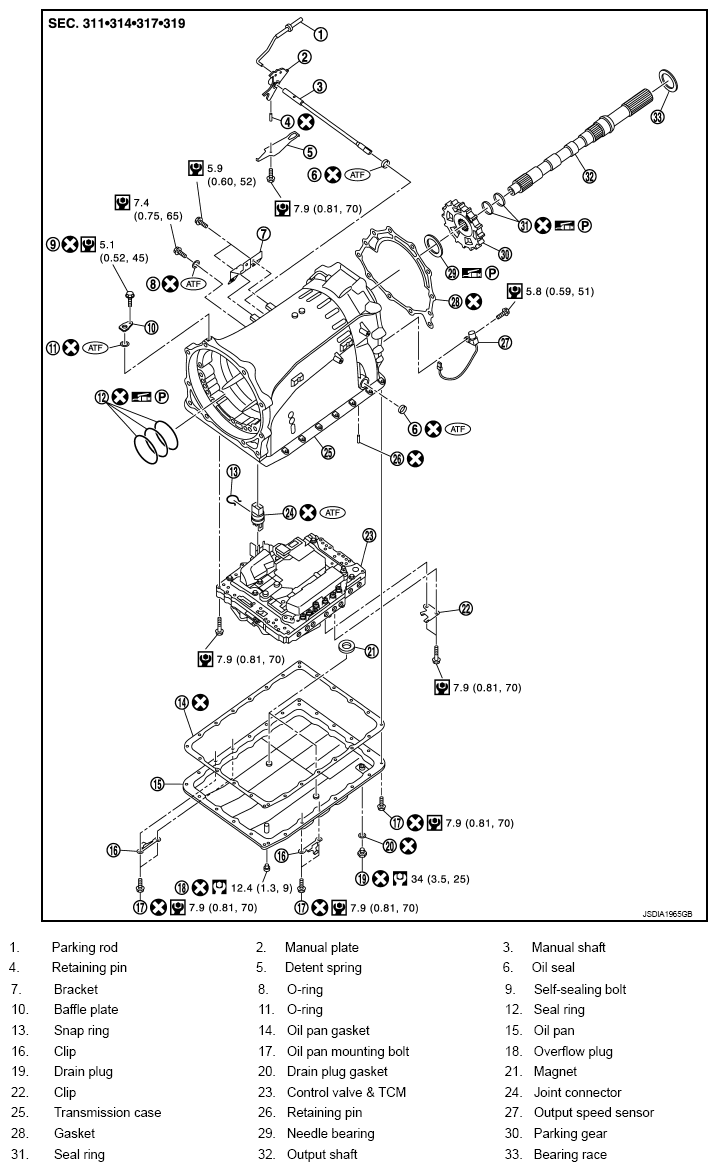

Fig 7: Exploded View Of Transmission Assembly Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
