ZOOM function

The ZOOM ratio of camera can be changed when calibrating the camera.
It shifts to ZOOM function mode by shifting the selector lever to a position other than the "R" position → "R" position → other than "R" position in the "Fine Tuning of Birds-Eye View" mode.
The changing of ZOOM ratio can be performed for each camera. Move the "+"-mark to select the camera by pressing "CAMERA" switch and press the left/right switch to change the ZOOM ratio.

NOTE:

When the position is not correct in "Fine Tuning of Birds-Eye View" mode, use this "ZOOM" function to adjust it.
If this function is used, always adjust the upper/lower/left/right position again on the "Fine Tuning of Birds-Eye View" screen.

Fig 1: Display - Zoom Function

Courtesy of NISSAN NORTH AMERICA, INC.

Correct Draw Line of Wide View

The display position of guiding lines when displayed on the rear-wide view can be changed.

Adjustment range

Rotating direction: 7 patterns

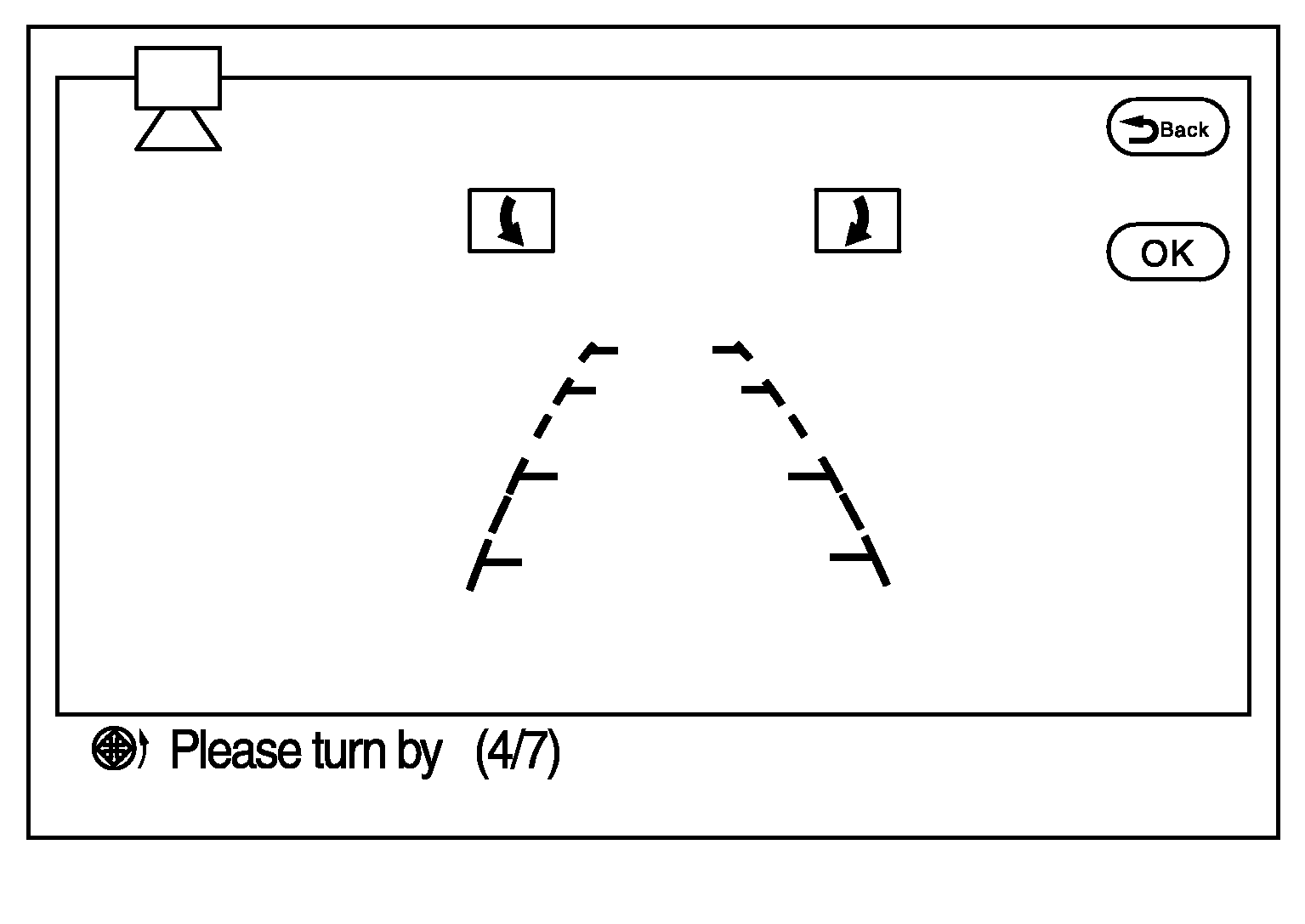

Fig 2: Display - Guiding Line Positions

Courtesy of NISSAN NORTH AMERICA, INC.

CORRECT DRAW LINE OF CAMERA IMAGE ITEM LIST

Items	Description
Rear-Wide View	The position of rear wide view guideline can be changed.
