Component Parts Location

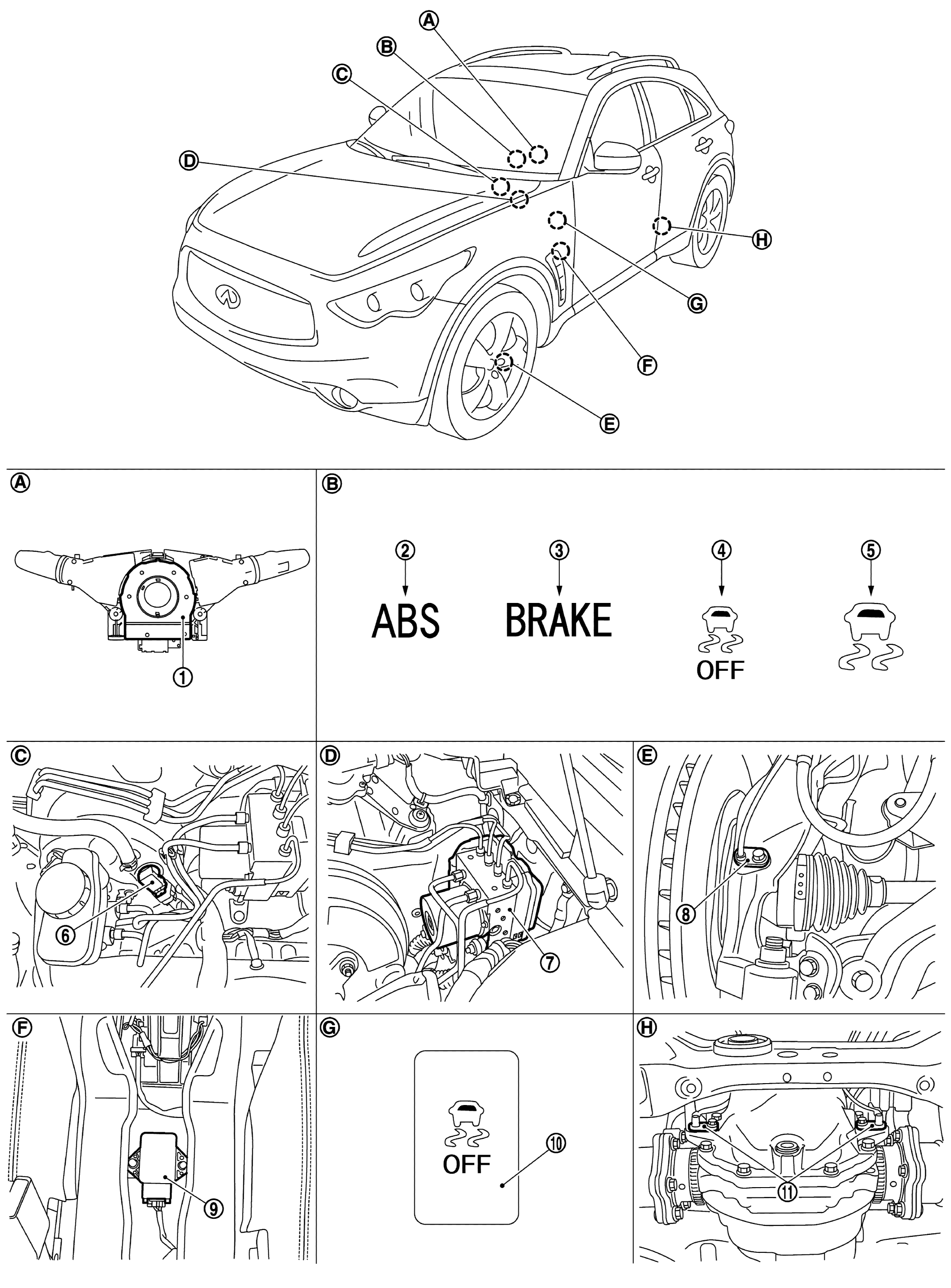

Fig 1: TCS System Components Location For USA (VK50VE Models)

Courtesy of NISSAN NORTH AMERICA, INC.

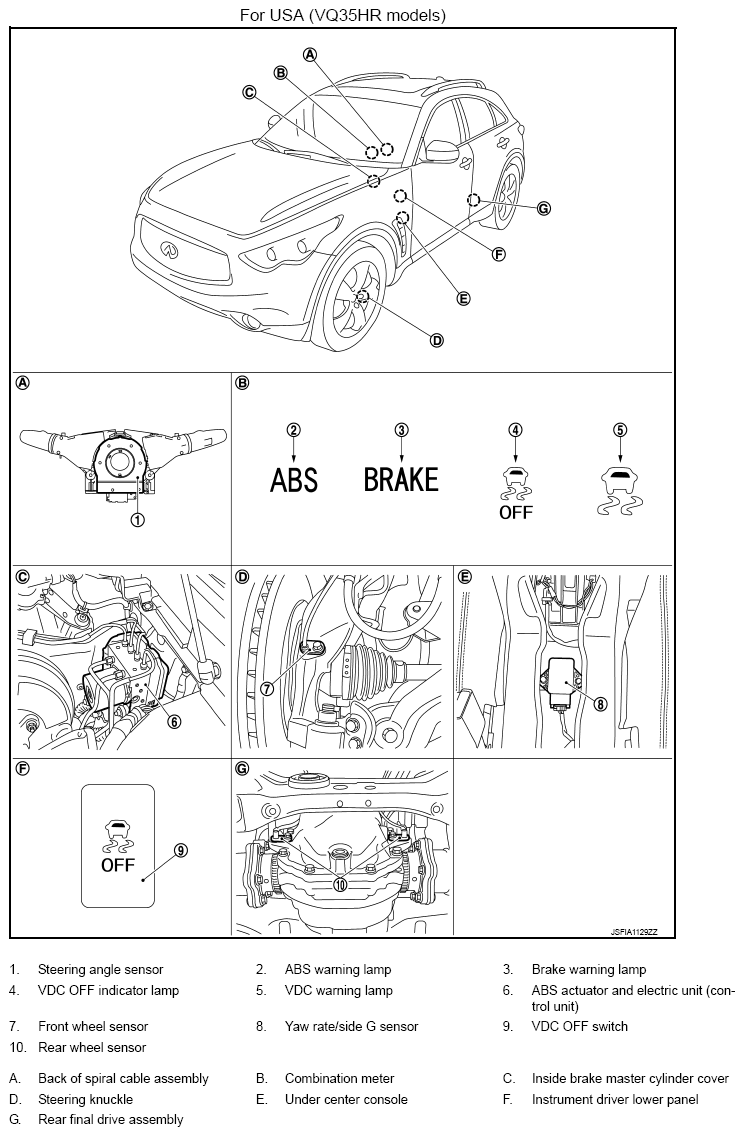

Fig 2: TCS System Components Location For USA (VQ35HR Models)

Courtesy of NISSAN NORTH AMERICA, INC.

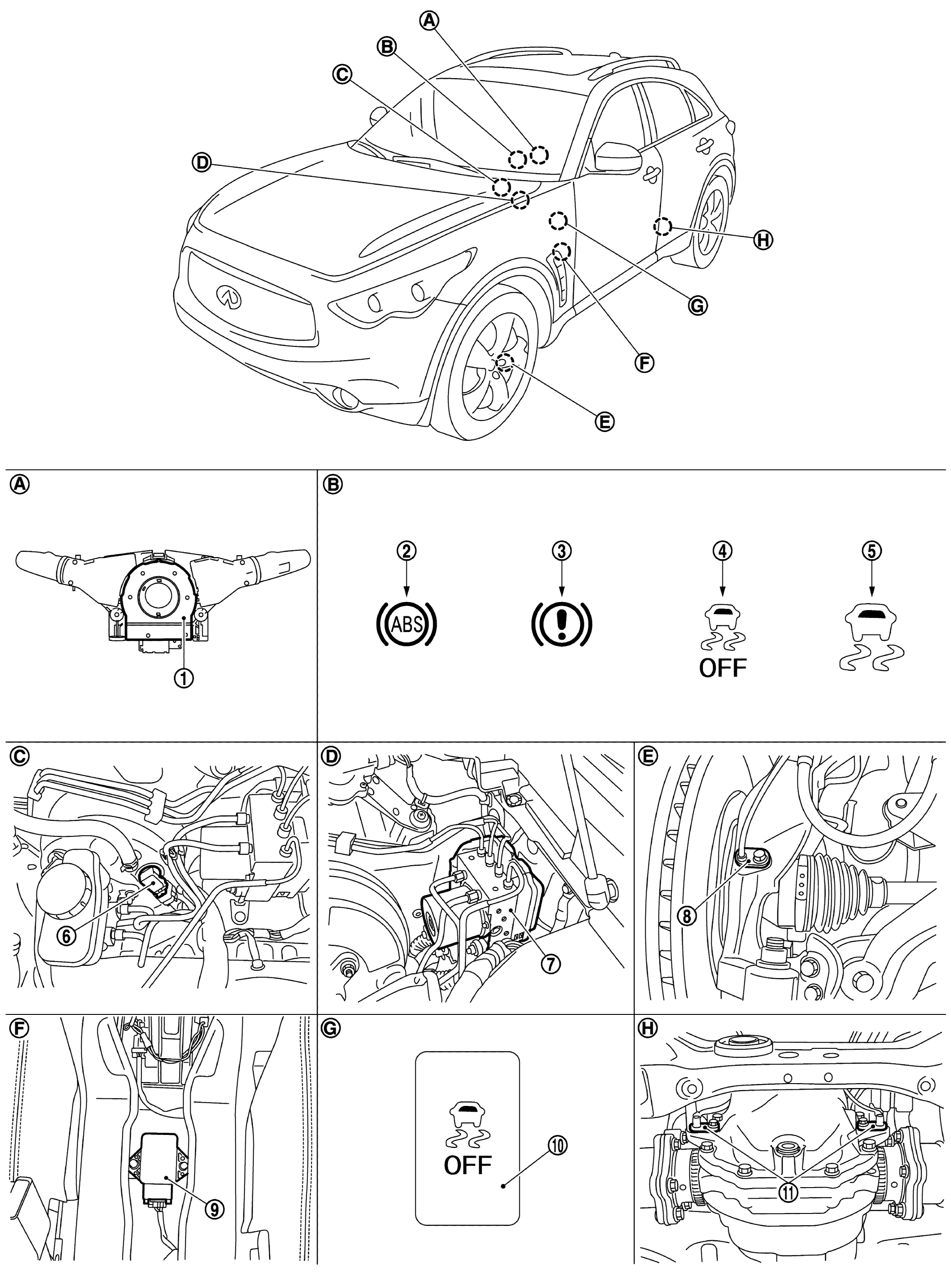

Fig 3: TCS System Components Location Except For USA (VK50VE Models)

Courtesy of NISSAN NORTH AMERICA, INC.

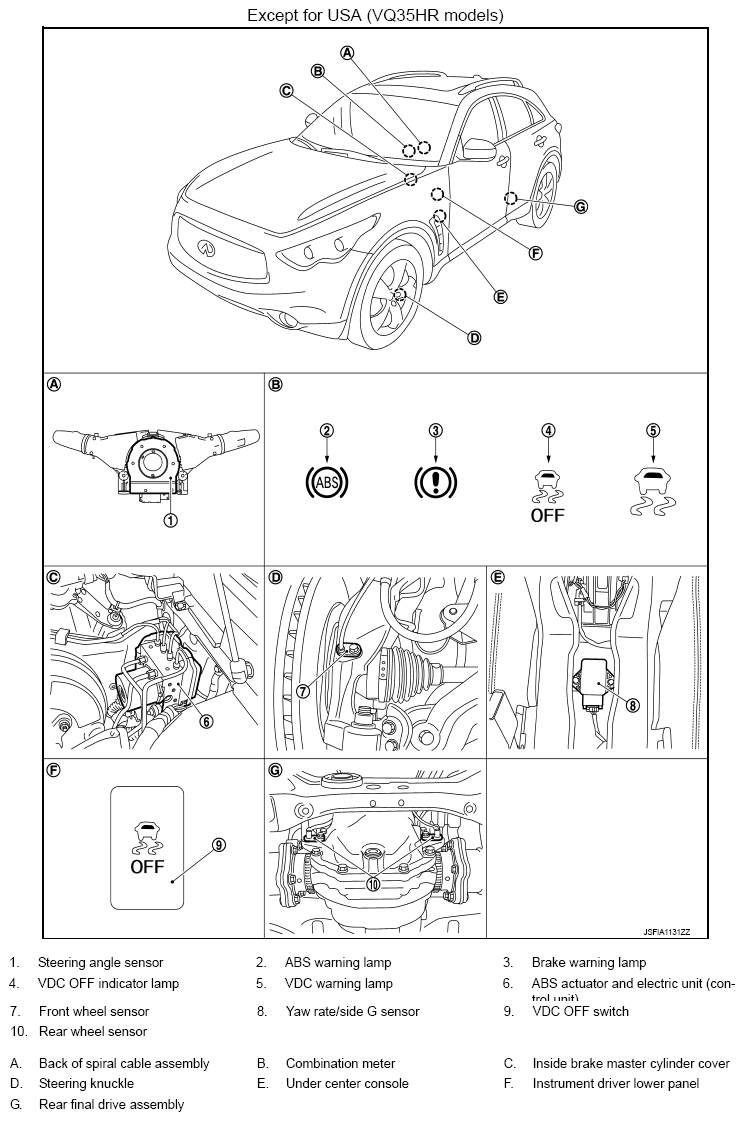

Fig 4: TCS System Components Location Except For USA (VQ35HR Models)

Courtesy of NISSAN NORTH AMERICA, INC.
