Component Parts Location

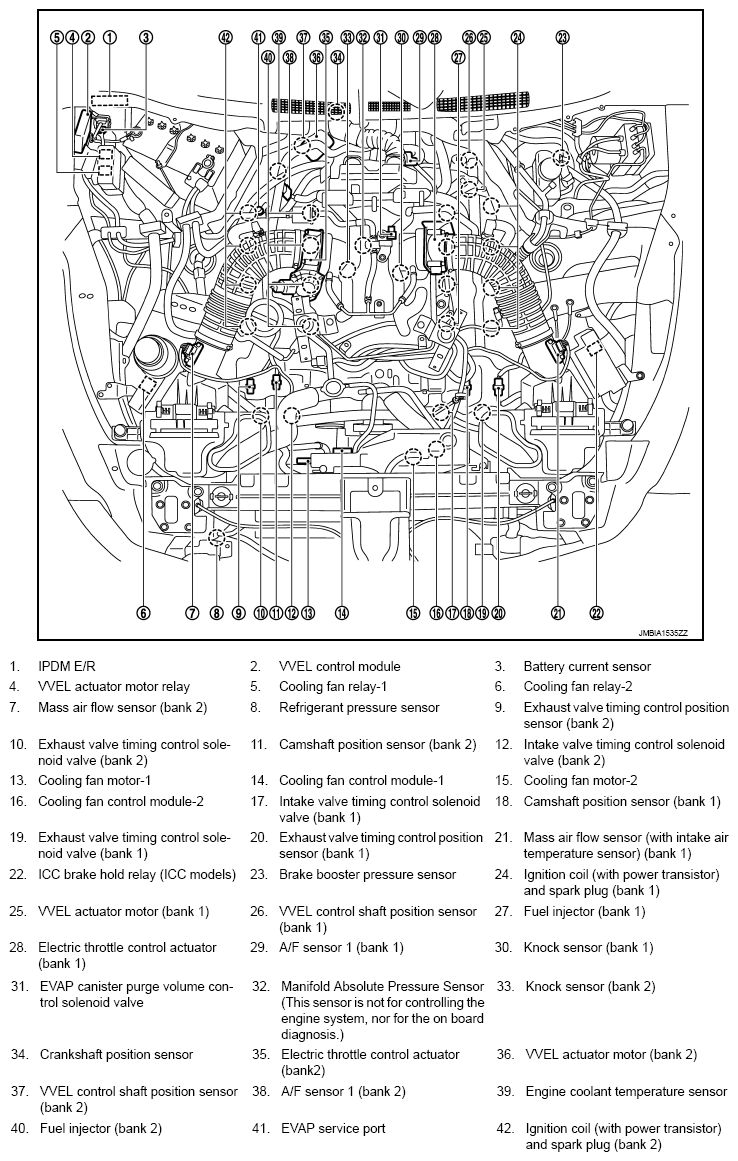

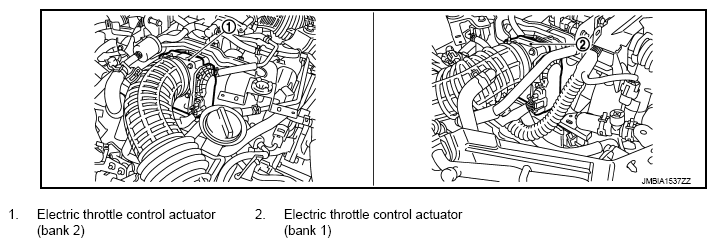

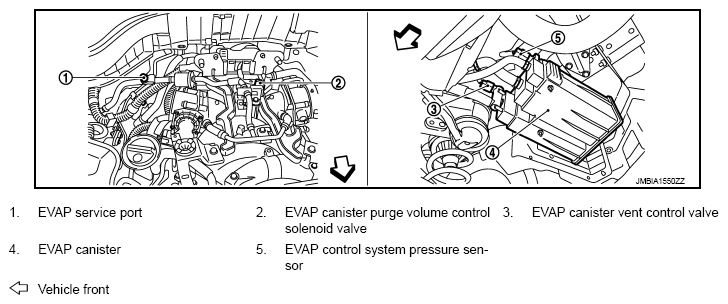

Fig 1: Electric Ignition System Components Location (1 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

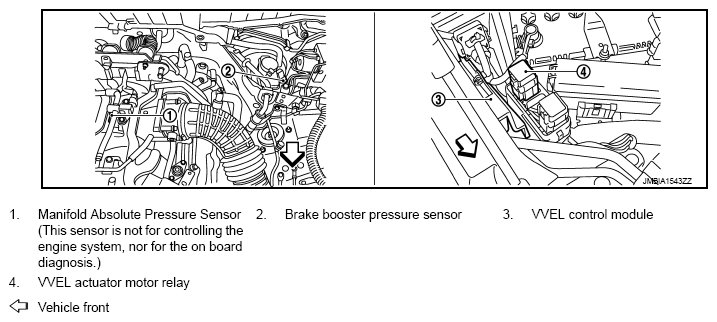

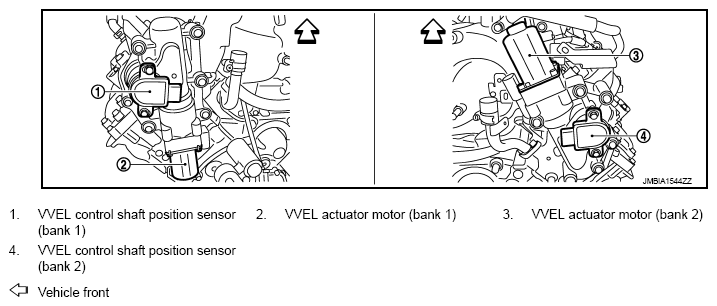

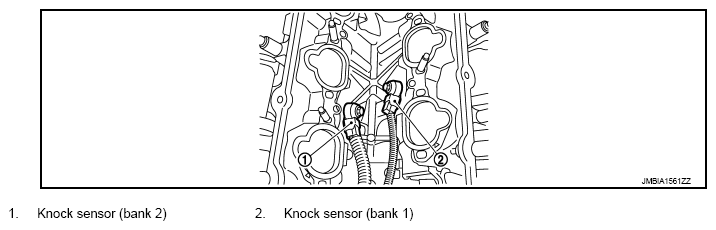

Fig 2: Electric Ignition System Components Location (2 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

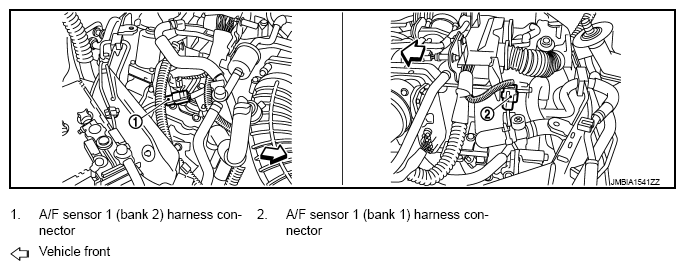

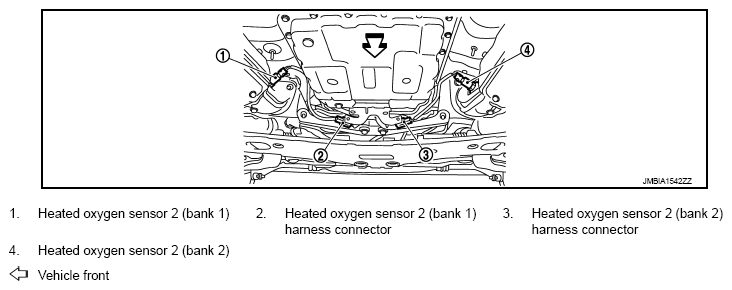

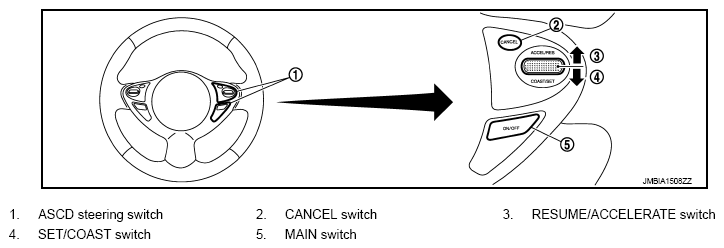

Fig 3: Electric Ignition System Components Location (3 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

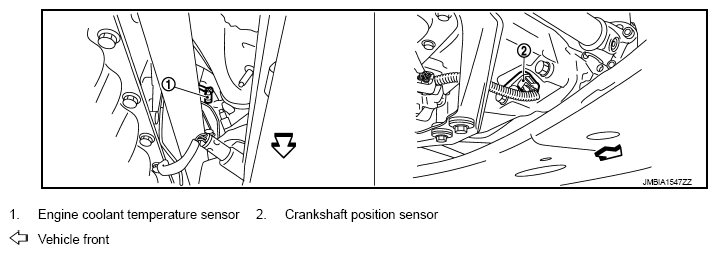

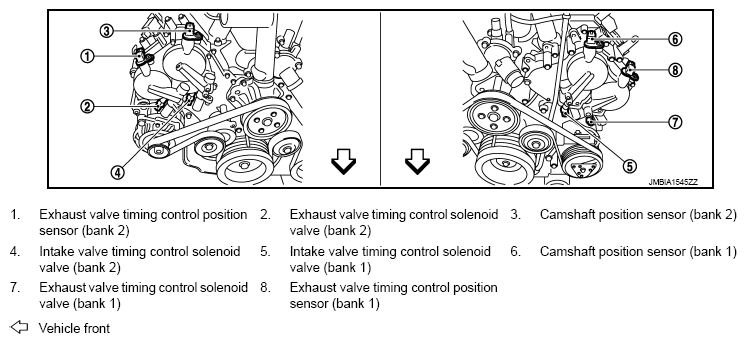

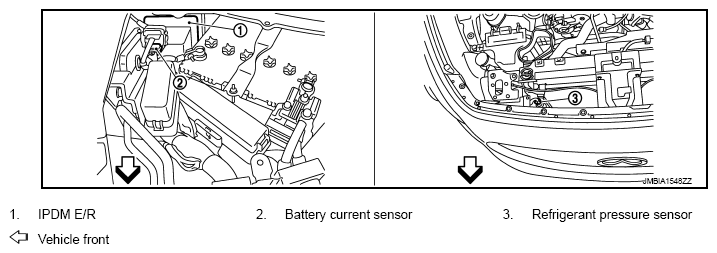

Fig 4: Electric Ignition System Components Location (4 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

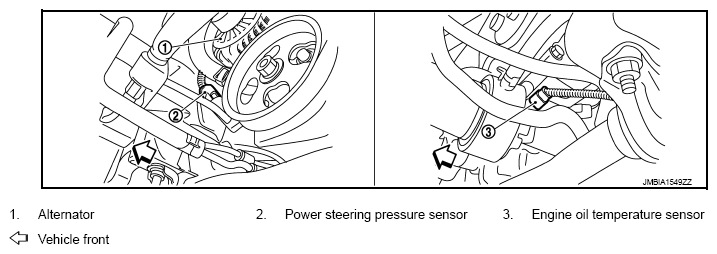

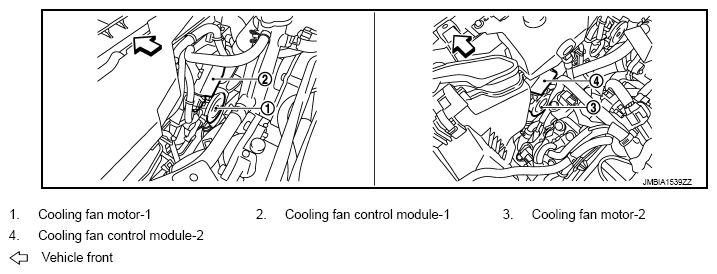

Fig 5: Electric Ignition System Components Location (5 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

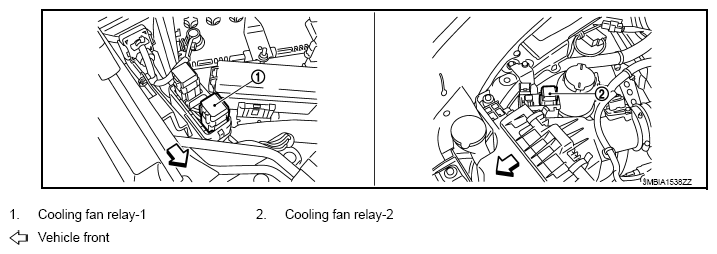

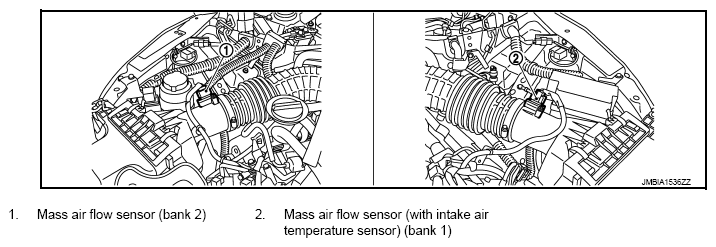

Fig 6: Electric Ignition System Components Location (6 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

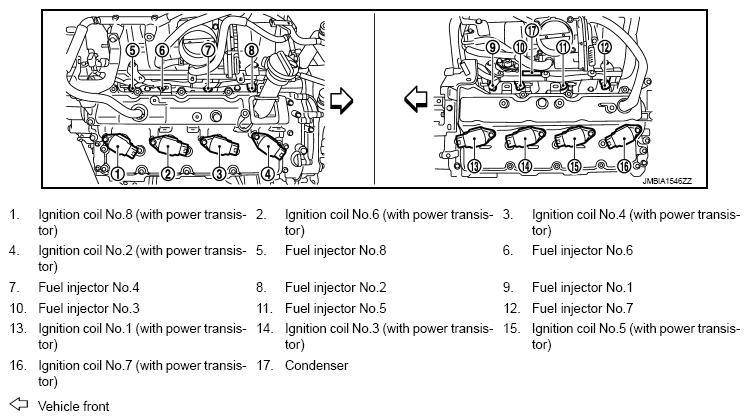

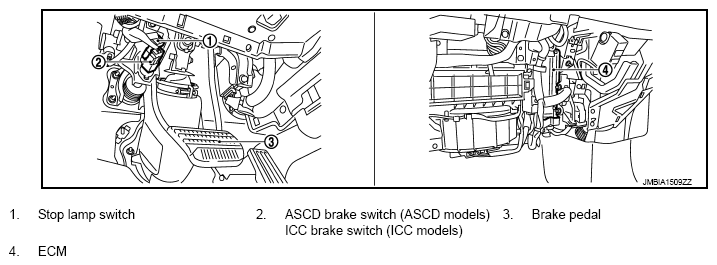

Fig 7: Electric Ignition System Components Location (7 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.

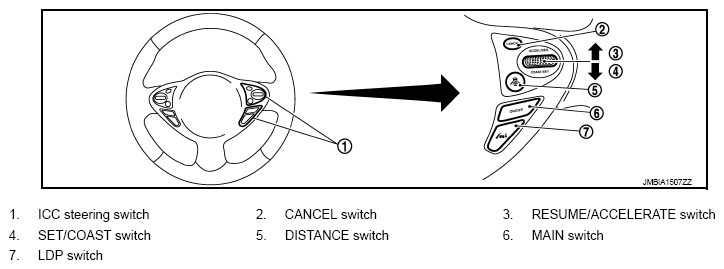

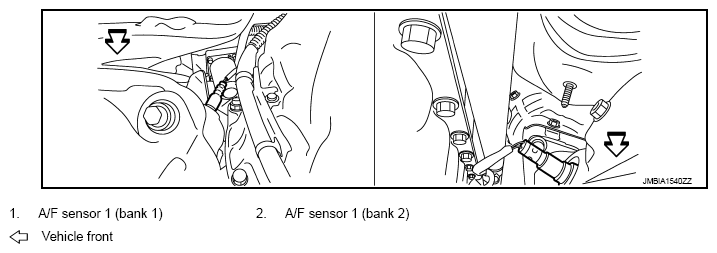

Fig 8: Electric Ignition System Components Location (8 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Electric Ignition System Components Location (9 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Electric Ignition System Components Location (10 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Electric Ignition System Components Location (11 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Electric Ignition System Components Location (12 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: Electric Ignition System Components Location (13 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Electric Ignition System Components Location (14 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 15: Electric Ignition System Components Location (15 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 16: Electric Ignition System Components Location (16 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 17: Electric Ignition System Components Location (17 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 18: Electric Ignition System Components Location (18 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 19: Electric Ignition System Components Location (19 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 20: Electric Ignition System Components Location (20 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 21: Electric Ignition System Components Location (21 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 22: Electric Ignition System Components Location (22 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 23: Electric Ignition System Components Location (23 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 24: Electric Ignition System Components Location (24 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 25: Electric Ignition System Components Location (25 Of 25)
Courtesy of NISSAN NORTH AMERICA, INC.
