Li-ion Battery Controller: Notes

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

Li-ion battery controller (LBC) is included in the battery pack and installed on the left surface of the rear module stack.

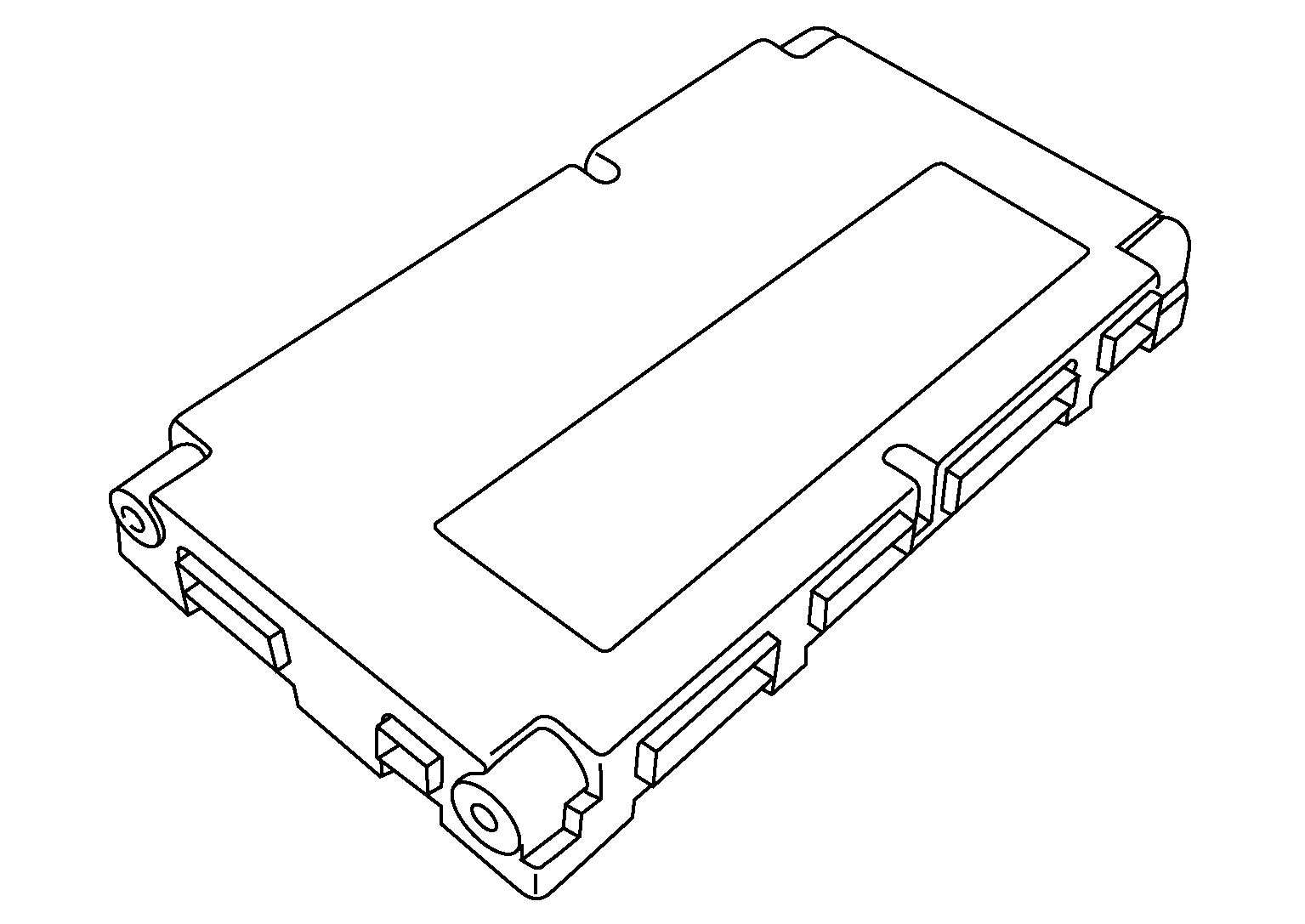

Fig 1: Identifying Li-ion Battery Controller (LBC)
Courtesy of NISSAN MOTOR CO., U.S.A.
The Li-ion battery controller is the core of battery control. This Li-ion battery controller detects the voltage and current of the assembled battery, the temperature of each module, and the voltage of each cell to judge SOC (state of charge) and calculates possible input/output values, meter indication value, and chargeable value to send these data to VCM (vehicle control module). VCM controls the vehicle, according to the battery state.
