Front Module Stack: Disassembly

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figure indicates front RH.

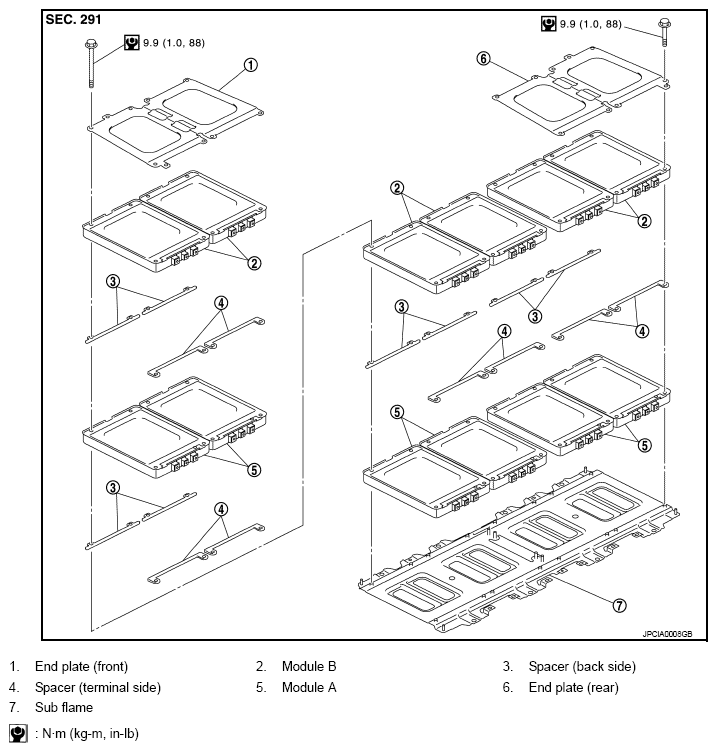

Fig 1: Exploded View Of Front Module Stack With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Front Module Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

FRONT MODULE REFERENCE CHART

LH front module stack			RH front module stack
Module No.	Module name	Cell No.	Module No.	Module name	Cell No.
MD25	Module B	49&50	MD37	Module B	73&74
MD26	Module B	51&52	MD38	Module B	75&76
MD27	Module A	53&54	MD39	Module A	77&78
MD28	Module A	55&56	MD40	Module A	79&80
MD29	Module A	57&58	MD41	Module B	81&82
MD30	Module A	59&60	MD42	Module B	83&84
MD31	Module B	61&62	MD43	Module A	85&86
MD32	Module B	63&64	MD44	Module A	87&88
MD33	Module A	65&66	MD45	Module A	89&90
MD34	Module A	67&68	MD46	Module A	91&92
MD35	Module B	69&70	MD47	Module B	93&94
MD36	Module B	71&72	MD48	Module B	95&96
