WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Figure indicates front RH.

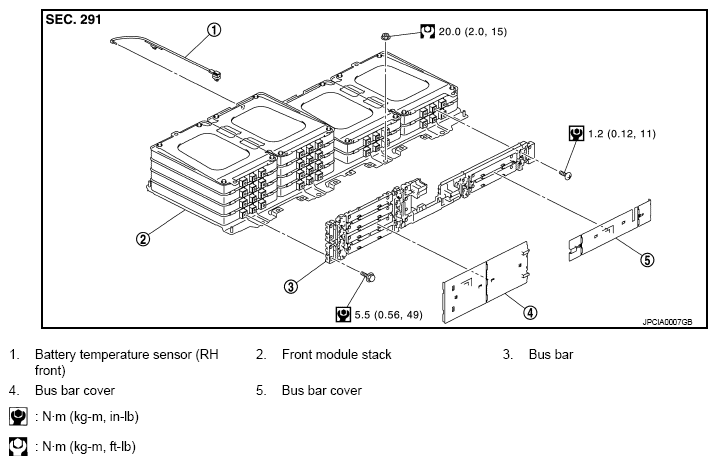

Fig 1: Exploded View Of Front Module Stack With Torque Specifications
