Rear Module Stack: Disassembly

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

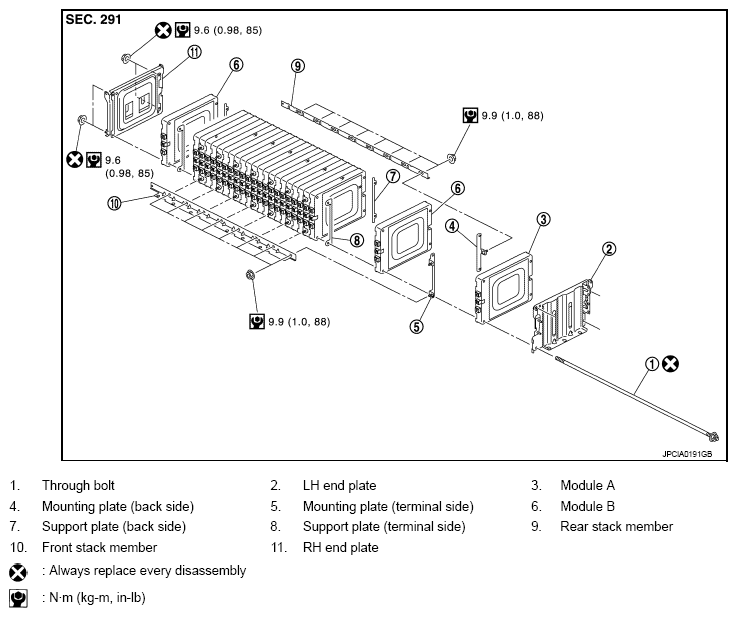

Fig 1: Exploded View Of Rear Module Stack With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Rear Module Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

REAR MODULE REFERENCE CHART

Rear module stack
Module No.	Module name	Cell No.	Module No.	Module name	Cell No.
MD1	Module B	1&2	MD13	Module B	25&26
MD2	Module A	3&4	MD14	Module A	27&28
MD3	Module B	5&6	MD15	Module B	29&30
MD4	Module A	7&8	MD16	Module A	31&32
MD5	Module B	9&10	MD17	Module B	33&34
MD6	Module A	11&12	MD18	Module A	35&36
MD7	Module B	13&14	MD19	Module B	37&38
MD8	Module A	15&16	MD20	Module A	39&40
MD9	Module B	17&18	MD21	Module B	41&42
MD10	Module A	19&20	MD22	Module A	43&44
MD11	Module B	21&22	MD23	Module B	45&46
MD12	Module A	23&24	MD24	Module A	47&48
