Rear Module Stack: Removal

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

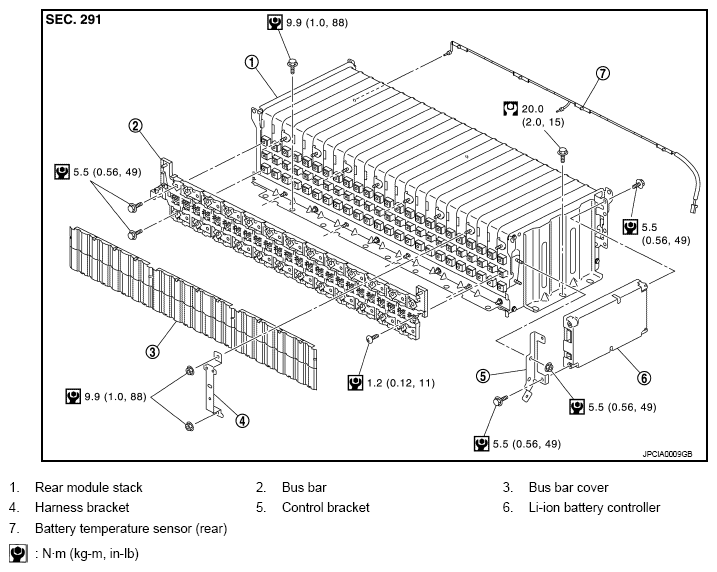

Fig 1: Exploded View Of Rear Module Stack With Torque Specifications
G07084299Courtesy of NISSAN MOTOR CO., U.S.A.
