FRONT MODULE STACK: Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2011 Nissan Leaf. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery junction box. Refer to "LI-ION BATTERY CONTROLLER: DISASSEMBLY AND ASSEMBLY ".

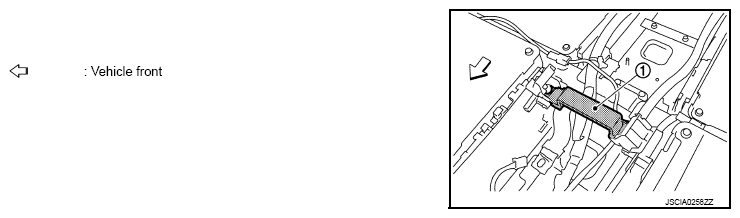

Remove bus bar (1) that connects service plug switch and left front module stack.
DANGER:

Touching high voltage components with using the appropriate protective equipment will cause electrocution.

WARNING: After removing, close bus bar cover.

Fig 1: Identifying Bus Bar
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mounting bolts (A) and nuts (B) of service plug switch bracket (1).
WARNING: To prevent shock hazards, be sure to put on insulated protective gear and use insulated tools.

Fig 2: Identifying Service Plug Switch Bracket Mounting Bolts And Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect high voltage harness (A) and connector (B) on reverse side of service plug switch bracket, then remove service plug switch bracket (1).
DANGER:

Touching high voltage components with using the appropriate protective equipment will cause electrocution.

WARNING: To prevent shock hazards, immediately wrap insulating tape around disconnected high voltage connector terminals.

Fig 3: Identifying Service Plug Switch Bracket With High Voltage Harness And Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove harness bracket (1).
WARNING: To prevent shock hazards, be sure to put on insulated protective gear and use insulated tools.

Fig 4: Identifying Harness Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bus bar (1) that connects left and right front module stacks.
DANGER:

Touching high voltage components with using the appropriate protective equipment will cause electrocution.

Fig 5: Identifying Bus Bar
Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: To prevent shock hazards, immediately wrap insulating tape around disconnected high voltage connector terminals.

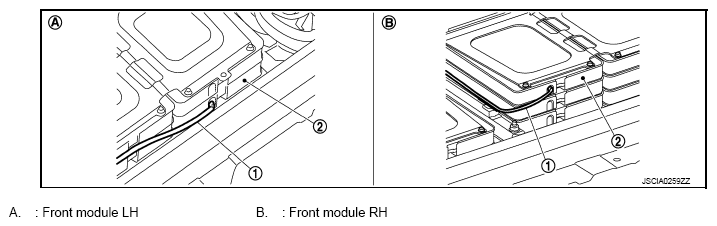

Remove battery temperature sensor (1) from module (2).

Fig 6: Identifying Battery Temperature Sensor And Module
Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: To prevent shock hazards, be sure to put on insulated protective gear and use insulated tools.
Remove battery member pipe (1).
WARNING: To prevent shock hazards, be sure to put on insulated protective gear and use insulated tools.

Fig 7: Identifying Battery Member Pipe
Courtesy of NISSAN MOTOR CO., U.S.A.

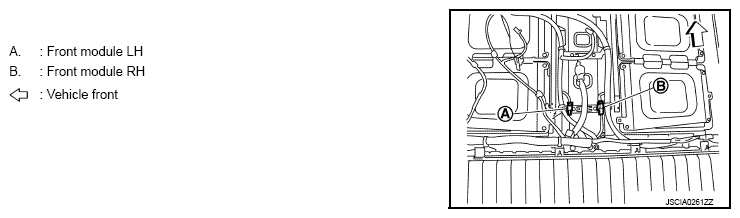

Remove vehicle communication harness connector.
WARNING: To prevent shock hazards, be sure to wear protective gear.

Fig 8: Identifying Vehicle Communication Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

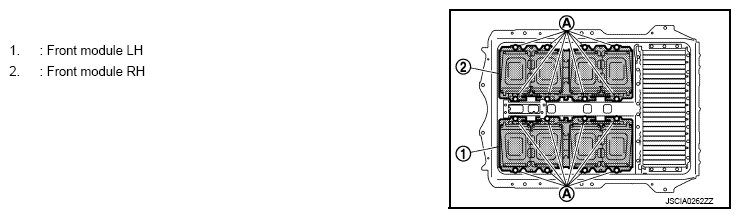

Remove front module stack mounting bolts (A).
WARNING: To prevent shock hazards, be sure to put on insulated protective gear and use insulated tools.

Fig 9: Identifying Front Module Stack Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Place front module stack (1) onto work bench.
WARNING:
- To prevent shock hazards, be sure to wear protective gear.
- Be sure to place an insulating rubber sheet on the work bench.
NOTE: Figure indicates front RH.

Fig 10: Identifying Front Module Stack
Courtesy of NISSAN MOTOR CO., U.S.A.
Follow the procedure below and remove bus bar from front module stack.
1. Remove bus bar (1).
  DANGER:

  Touching high voltage components with using the appropriate protective equipment will cause electrocution.

  WARNING: To prevent shock hazards, immediately wrap insulating tape around disconnected high voltage connector terminals.

  Fig 11: Identifying Bus Bar
  Courtesy of NISSAN MOTOR CO., U.S.A.

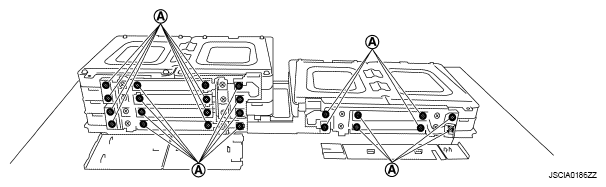

2. Remove bus bar cover and remove module terminal mounting bolts (A).

  Fig 12: Identifying Module Terminal Mounting Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

  DANGER:
  - Touching high voltage components with using the appropriate protective equipment will cause electrocution.
  - Work alone. Failure to do this may cause shock hazards.

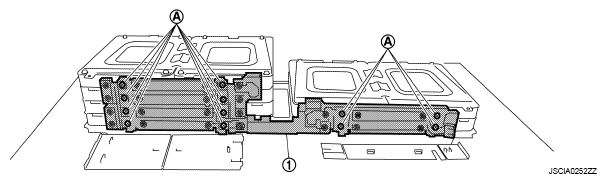

3. Remove voltage detection terminal mounting screws (A) and remove bus bar (1) from front module stack.

  Fig 13: Identifying Voltage Detection Terminal Mounting Screws And Bus Bar
  Courtesy of NISSAN MOTOR CO., U.S.A.

  DANGER:
  - Touching high voltage components with using the appropriate protective equipment will cause electrocution.
  - Work alone. Failure to do this may cause shock hazards.

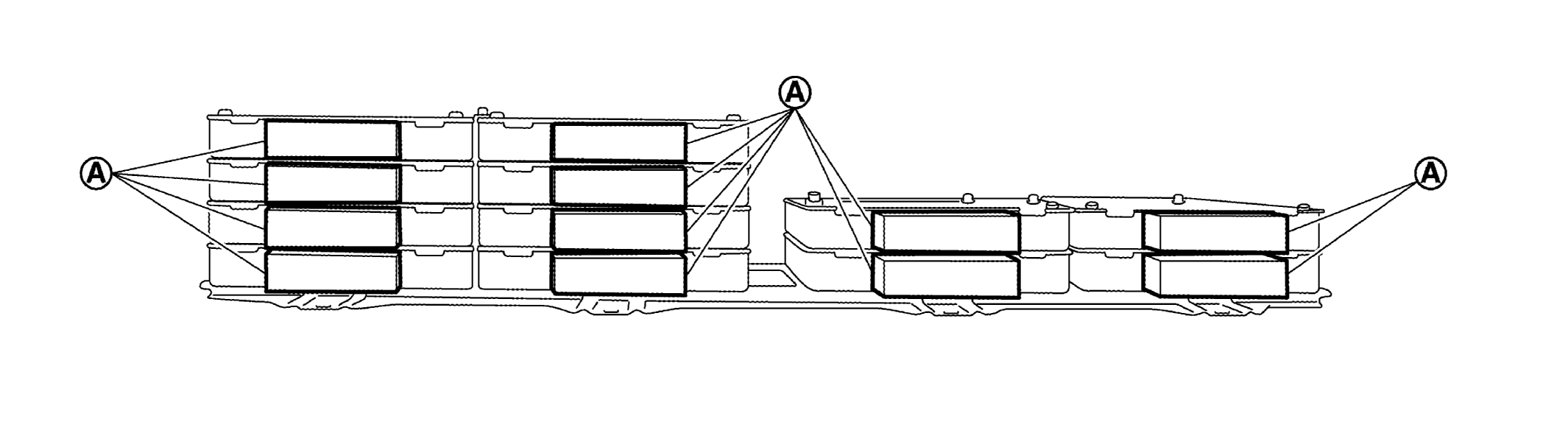

4. Attach module terminal covers [SST: KV99111500] (A) to all module terminals.

  Fig 14: Identifying Module Terminal Covers (KV99111500)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  WARNING: To prevent shock hazards, be sure to wear protective gear.
5. Remove end plate and disassembly front module stack.
  WARNING: To prevent shock hazards, be sure to put on insulated protective gear and use insulated tools.
