Exploded View

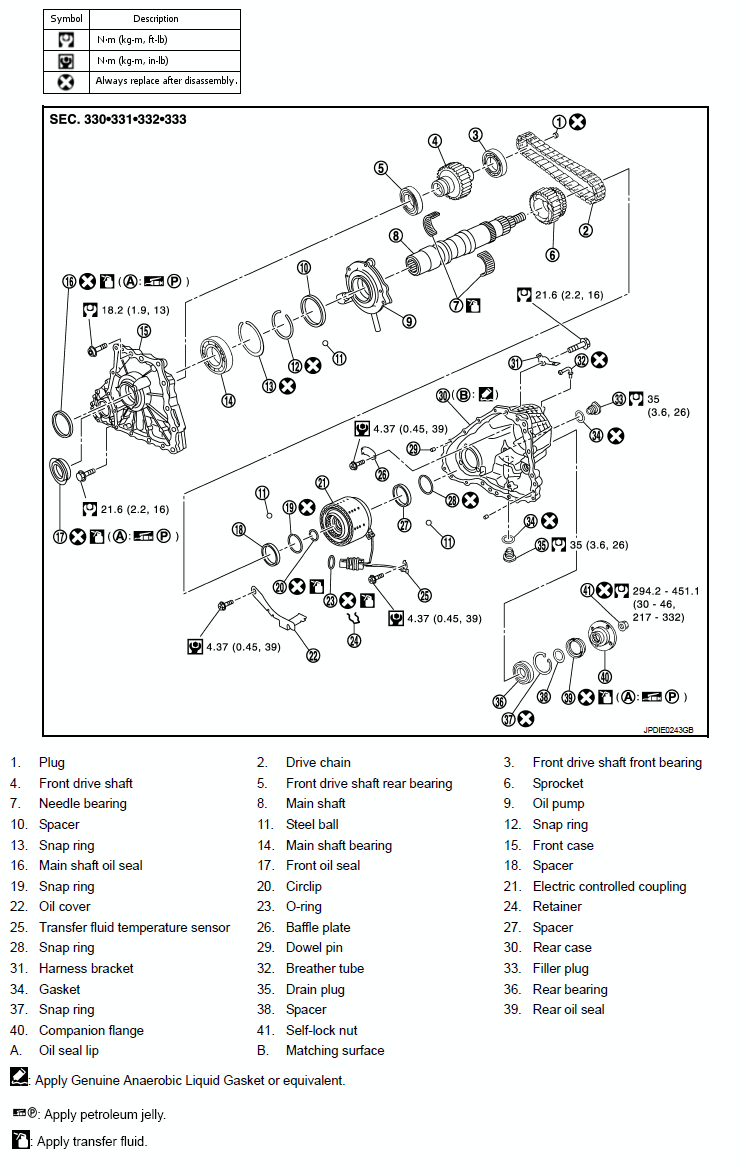

Fig 1: Exploded View Of Main Shaft With Torque Specifications
G08457239Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols not described above.
