Infiniti
>>
2012
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (Convertible)
>>
IPDM E/R
>>
System Description
>>
Relay Control System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

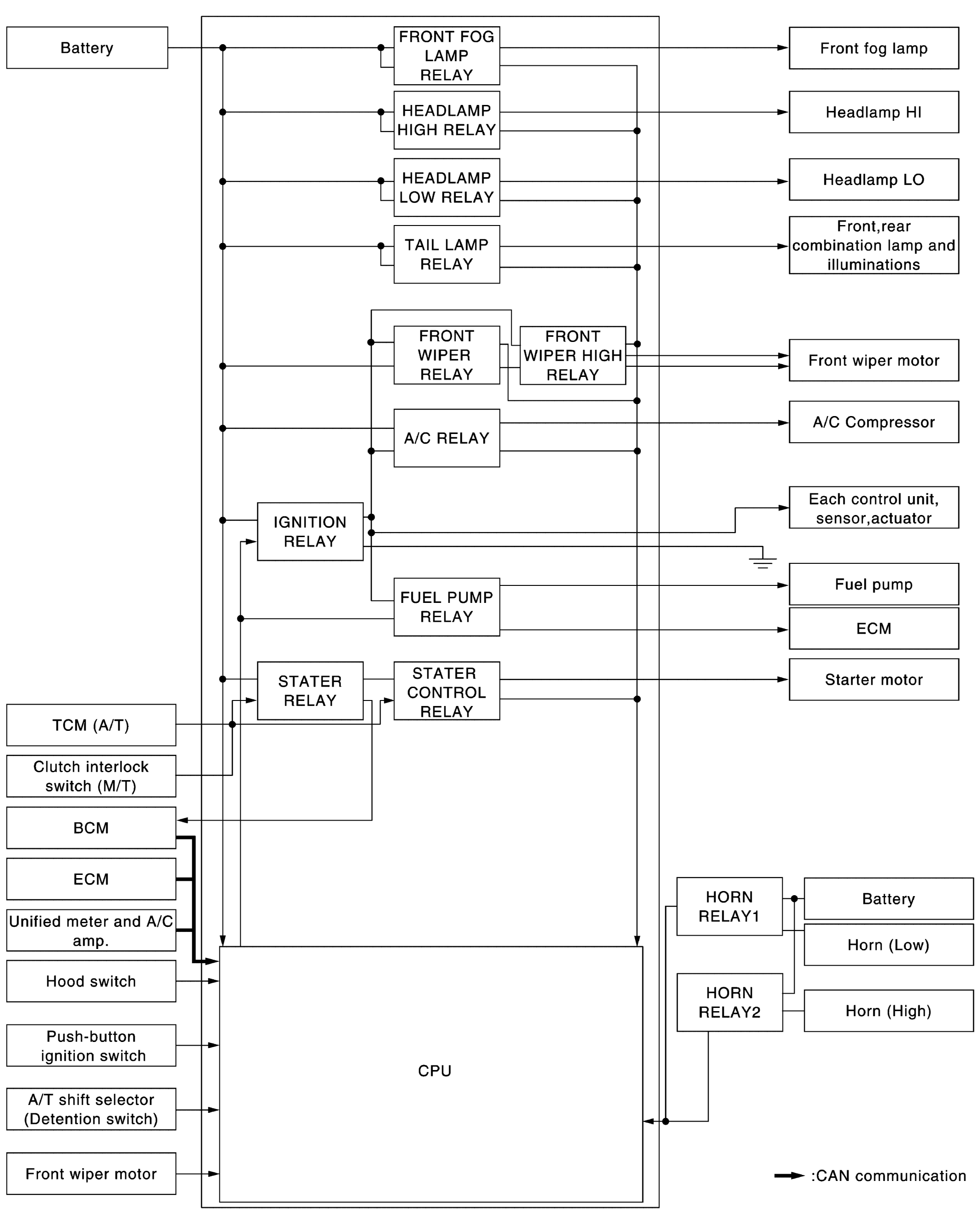

Fig 1: Relay Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
