Exploded View

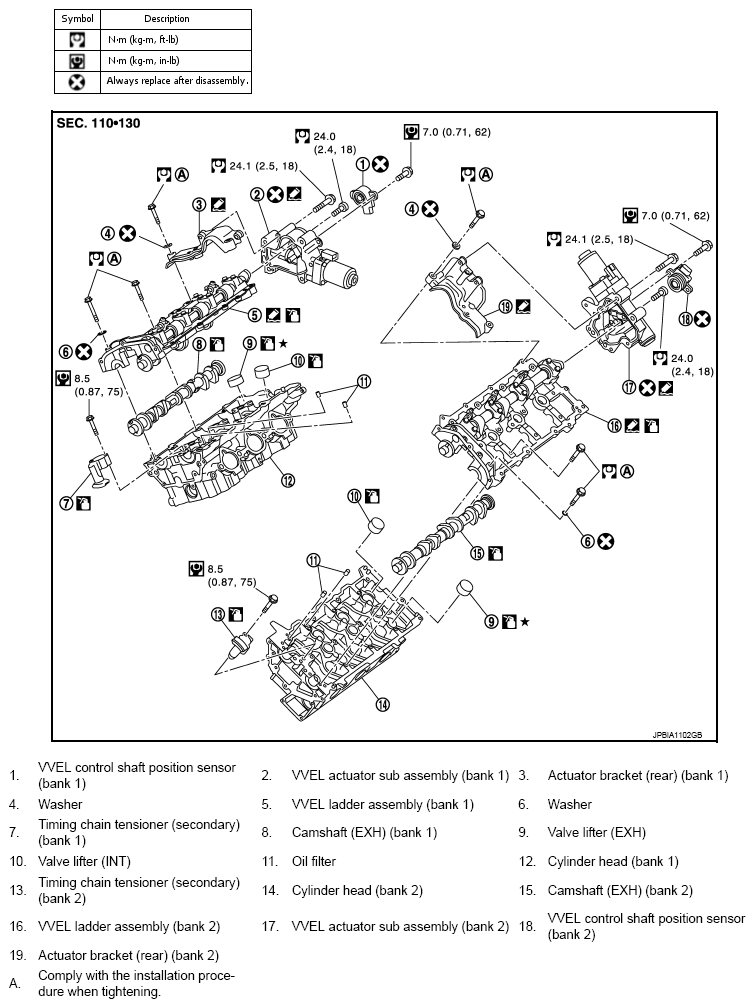

Fig 1: Exploded View Of Camshaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

CAUTION: A high degree of precision is required for a valve on the intake side. Never remove the valve related-parts unless necessary.

NOTE:

As for replacement of parts on the intake side as shown in the exploded view, replace VVEL ladder assembly and cylinder head assembly.
VVEL ladder assembly cannot be replaced as a single part, because it is machined together with cylinder head assembly.

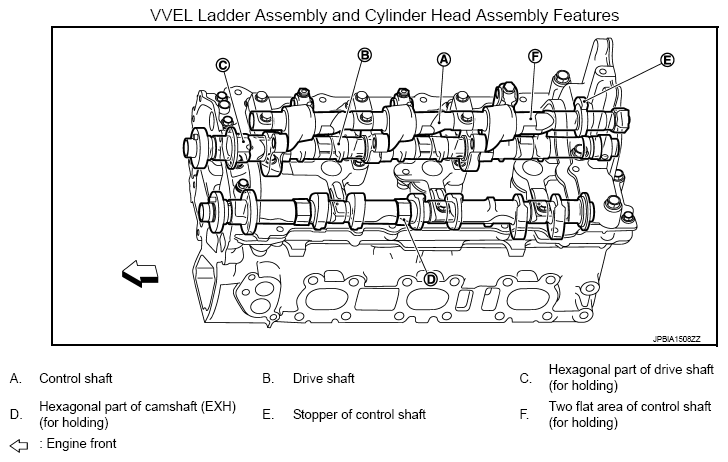

Fig 2: VVEL Ladder Assembly And Cylinder Head Assembly Features

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The figure shows an example of bank 2.
