A/T MODELS: Exploded View

WARNING: This page is about a different variant/trim than selected.

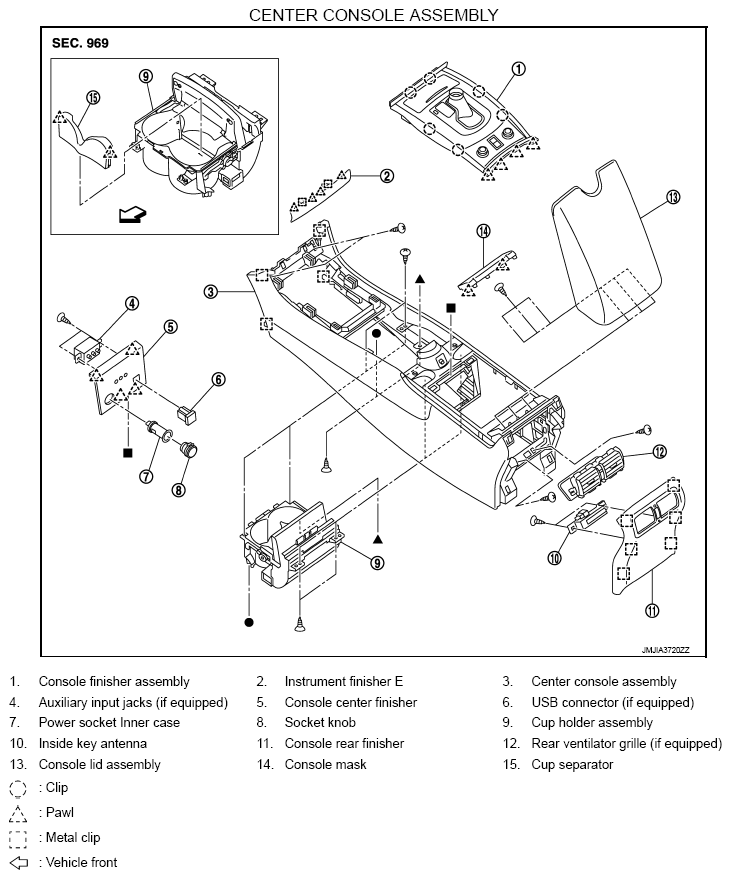

Fig 1: Exploded View Of Center Console Assembly (A/T Models)
G08459145Courtesy of NISSAN NORTH AMERICA, INC.

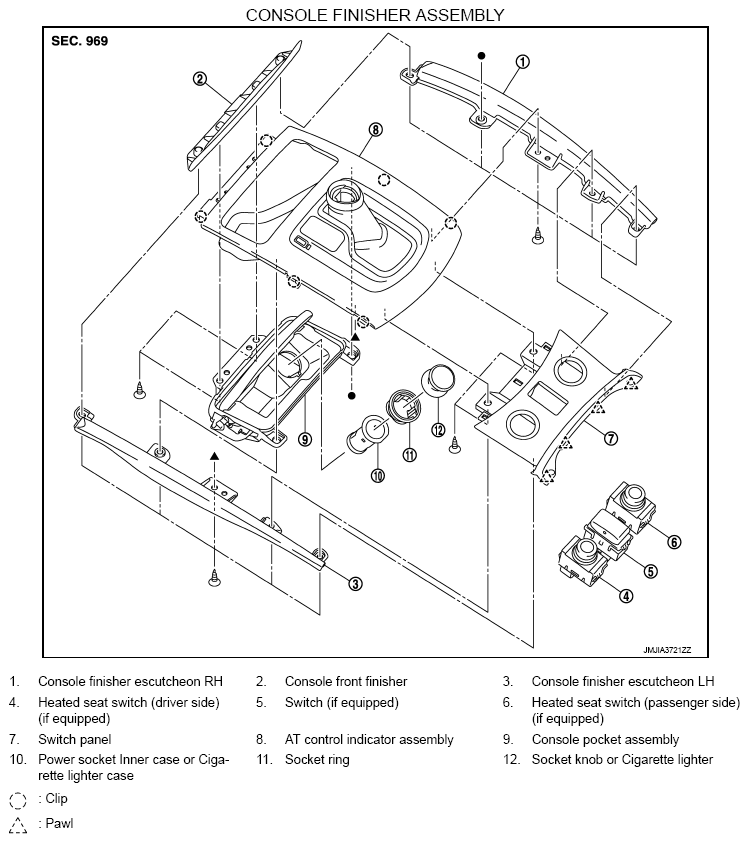

Fig 2: Exploded View Of Console Finisher Assembly
G08459146Courtesy of NISSAN NORTH AMERICA, INC.
