Front Door Glass
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

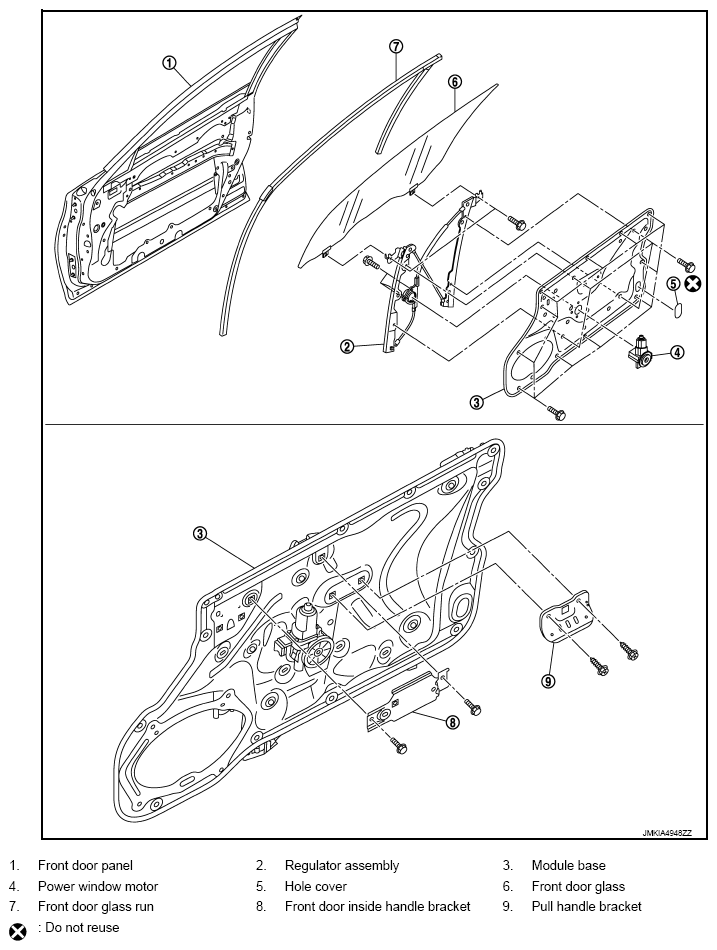

Fig 1: Exploded View Of Front Door Glass With Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
