Installation (M/T Models)

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal after the following.
- Be sure the dowel pin is installed in the crankshaft.
- When installing the flywheel (3) to the crankshaft (2), be sure to correctly align crankshaft side dowel pin (1) to the flywheel side dowel pin hole (A) as shown below.
  - Oil seal (4)

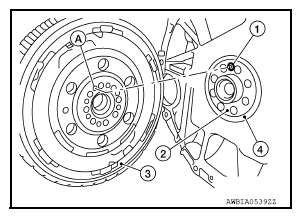

    Fig 1: Identifying Flywheel, Crankshaft, Oil Seal, Dowel Pin And Hole
    Courtesy of NISSAN NORTH AMERICA, INC.
- There is a locator mark (B) on the clutch cover side of the flywheel (4). Refer to this for ease of installation.
  - Crankshaft dowel pin (1)
  - Oil seal (2)
  - Crankshaft (3)
  - Flywheel (4)
  - Dowel pin hole (A)
  - Dowel pin locator mark (B)

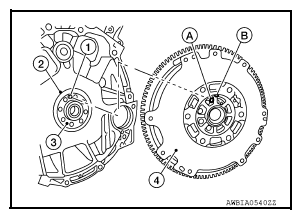

    Fig 2: Identifying Flywheel, Crankshaft, Oil Seal, Dowel Pin And Hole With Locator Mark
    Courtesy of NISSAN NORTH AMERICA, INC.
- Tighten the flywheel bolts in a diagonal pattern in two steps. Refer to "DISASSEMBLY AND ASSEMBLY ".
