System Description

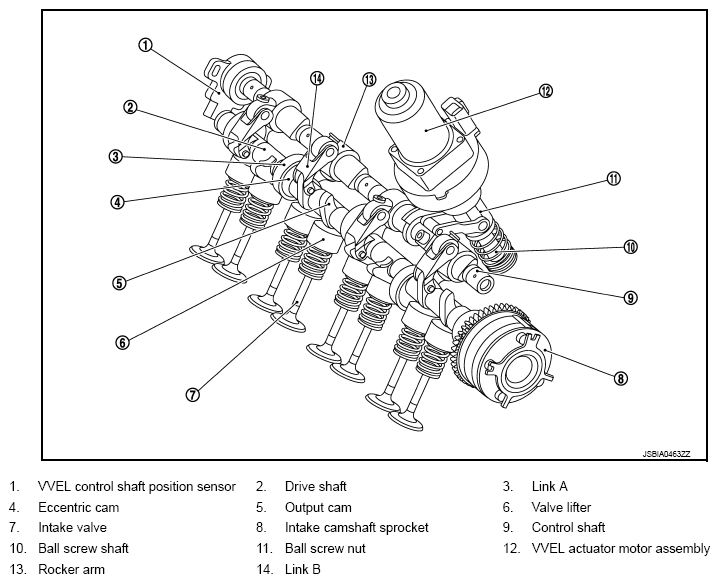

Fig 1: Identifying VVEL System And Related Components

Courtesy of NISSAN NORTH AMERICA, INC.

VVEL (Variable Valve Event & Lift) is a system that controls valve event and valve lift continuously.

ECM decides the target valve lift according to the driving condition and sends the command signal to the VVEL control module via ENG communication line.
