Overall Sequence

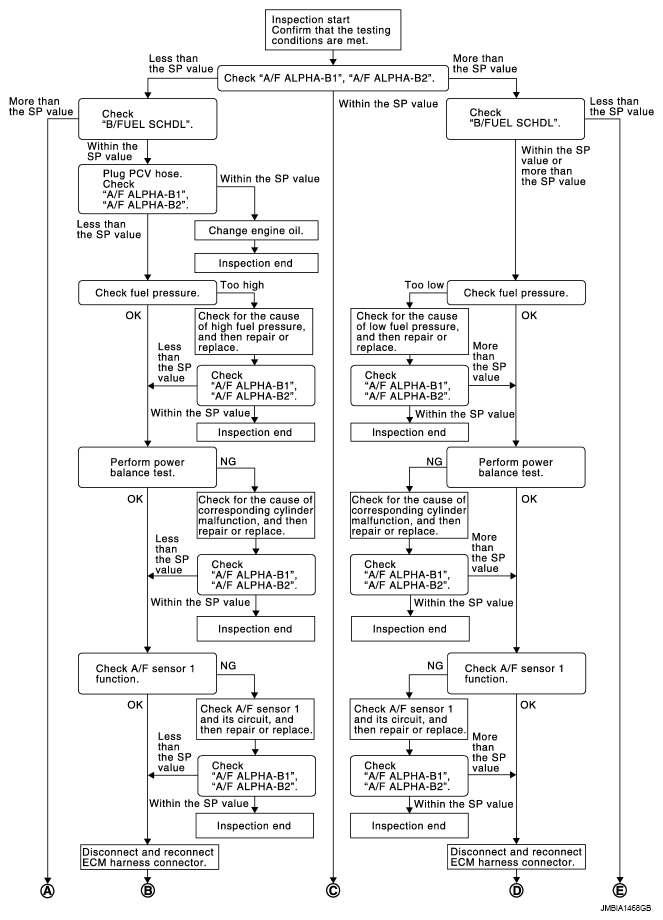

Fig 1: Diagnostic Procedure Flowchart (1 Of 2)
G08985908Courtesy of NISSAN NORTH AMERICA, INC.

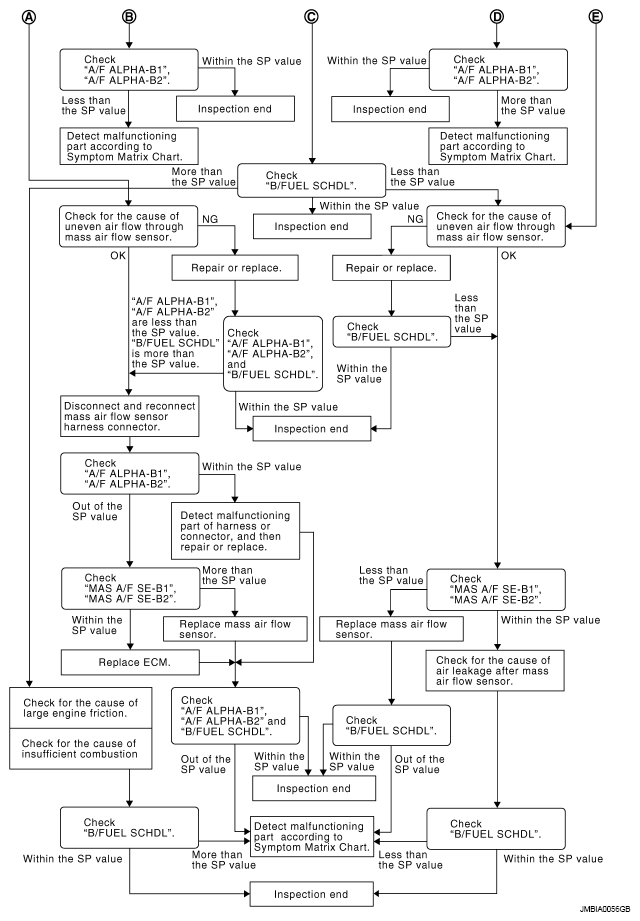

Fig 2: Diagnostic Procedure Flowchart (2 Of 2)
G08985909Courtesy of NISSAN NORTH AMERICA, INC.
