Exploded View

Refer to "COMPONENTS " for symbols in the figure.

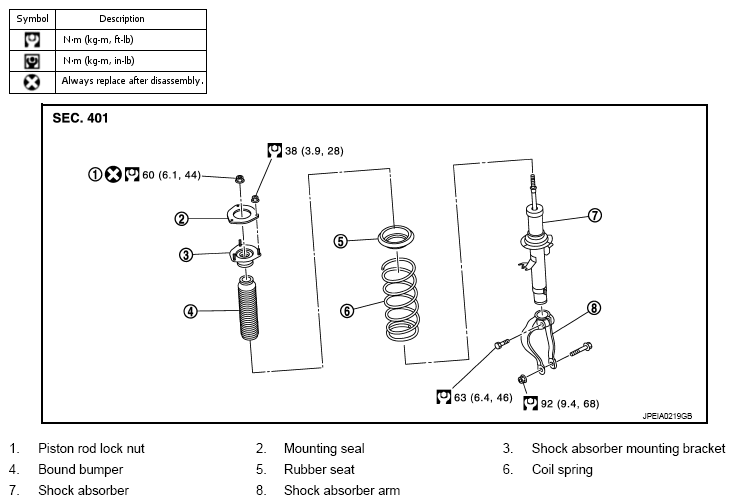

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications
G08993742Courtesy of NISSAN NORTH AMERICA, INC.
