Exploded View

Refer to "COMPONENTS " for symbols in the figure.

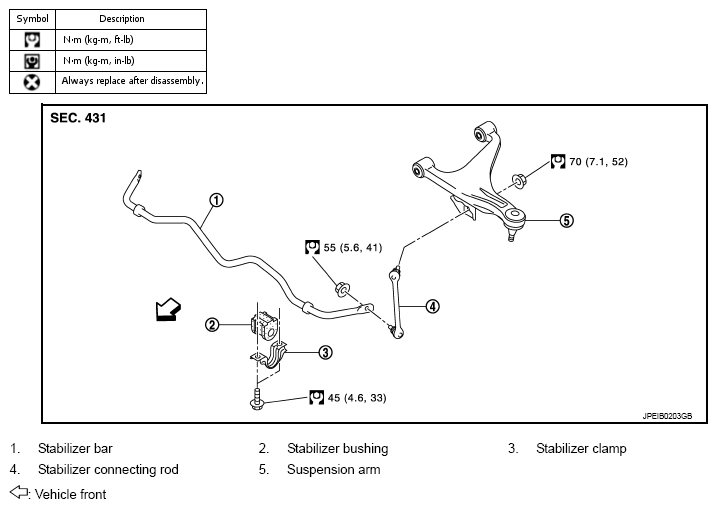

Fig 1: Exploded View Of Rear Stabilizer With Torque Specifications
G08993774Courtesy of NISSAN NORTH AMERICA, INC.
