Exploded View

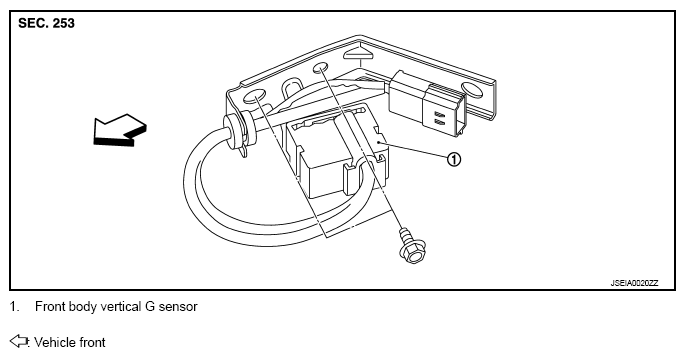

Fig 1: Identifying Front Body Vertical G Sensor
G09003799Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: The above figure shows left side. Right side is the mirror image.
