Component Parts Location

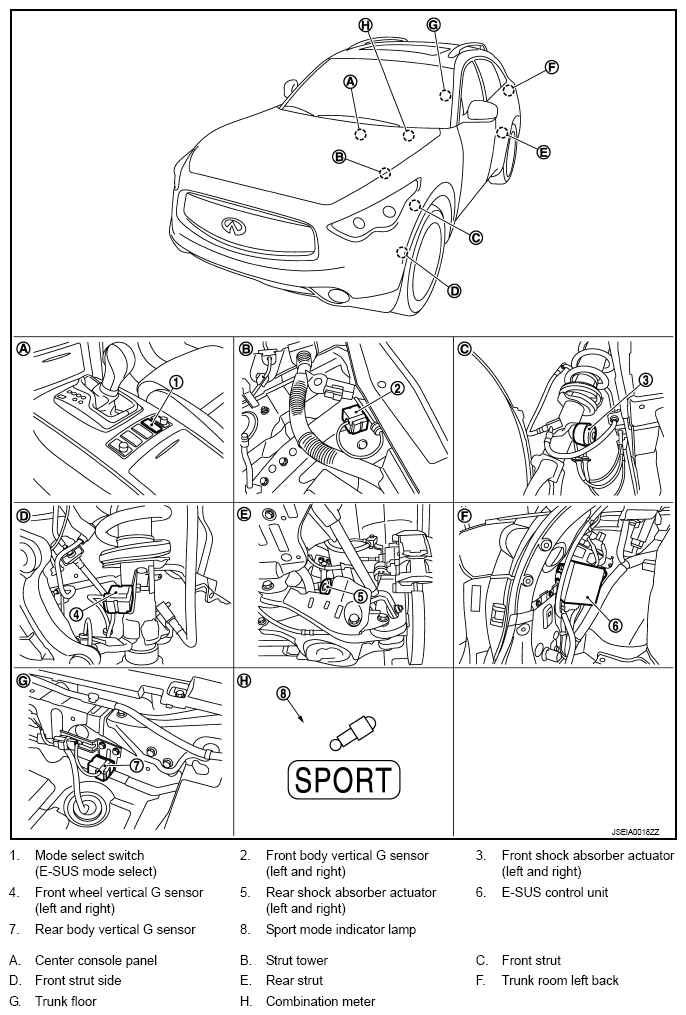

Fig 1: Continuous Damping Control System Components Location
G09003795Courtesy of NISSAN NORTH AMERICA, INC.
