Exploded View

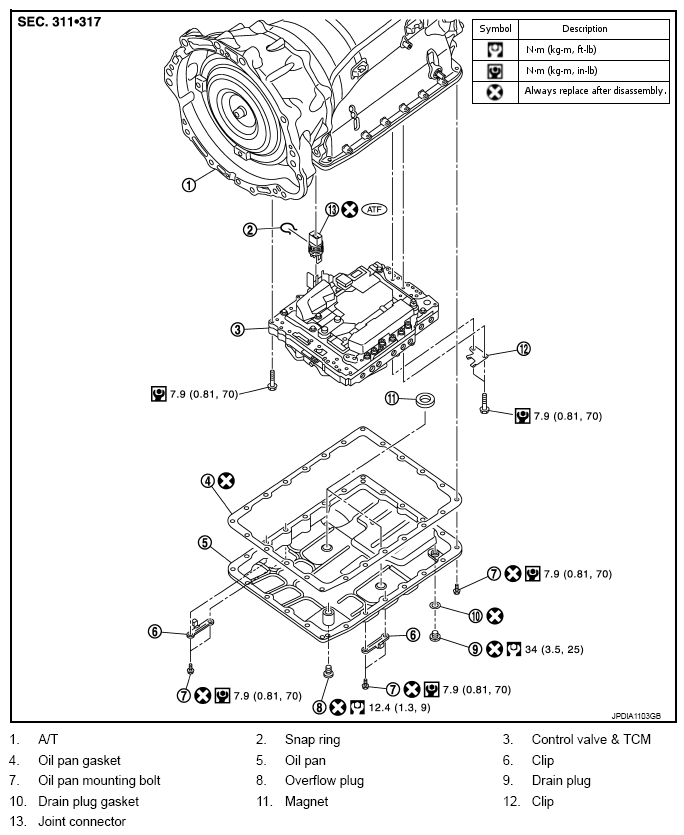

Fig 1: Exploded View Of Control Valve And TCM With Torque Specifications
G09002220Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
