Oil Channel

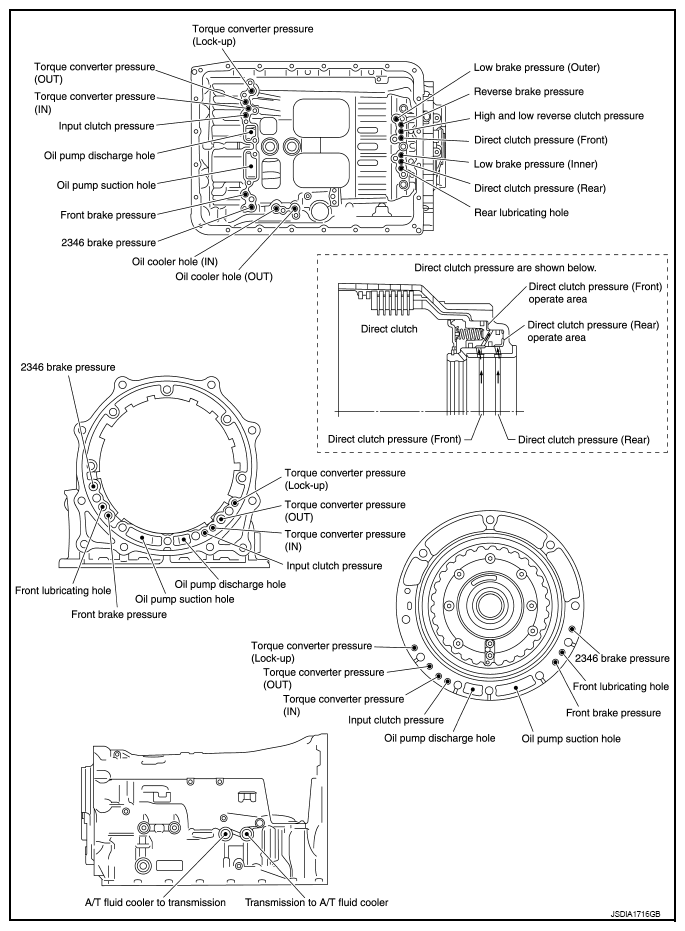

Fig 1: Identifying Oil Channel Related Components
Courtesy of NISSAN NORTH AMERICA, INC.
