Exploded View

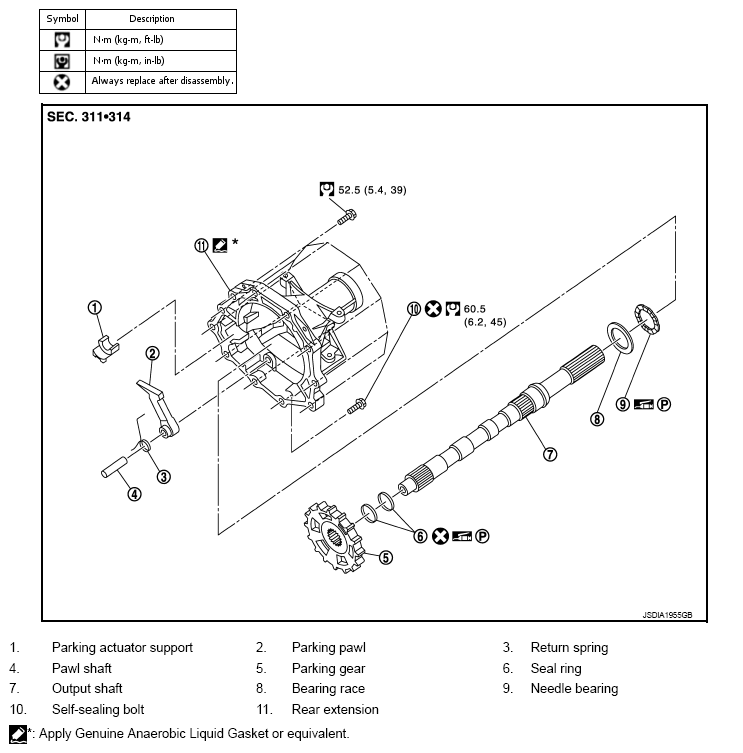

Fig 1: Exploded View Of Parking Components With Torque Specifications
G08740204Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
