Component Parts Location

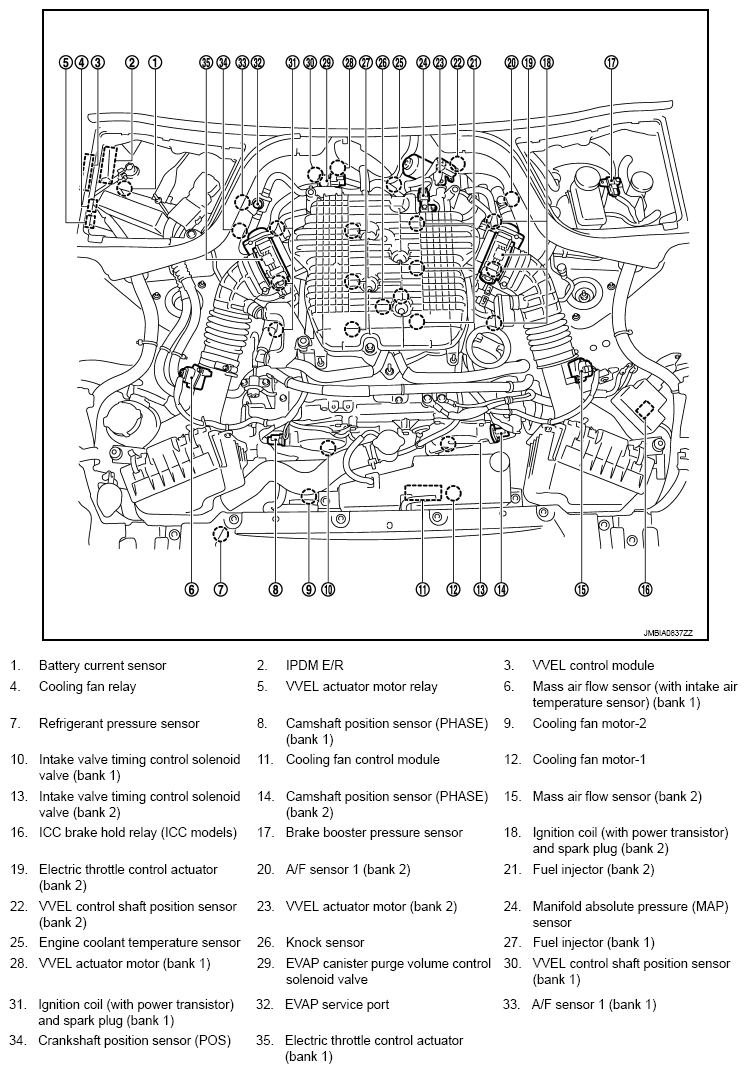

Fig 1: Identifying Automatic Speed Control Device Components Location (1 Of 22)

G08757629

Courtesy of NISSAN NORTH AMERICA, INC.

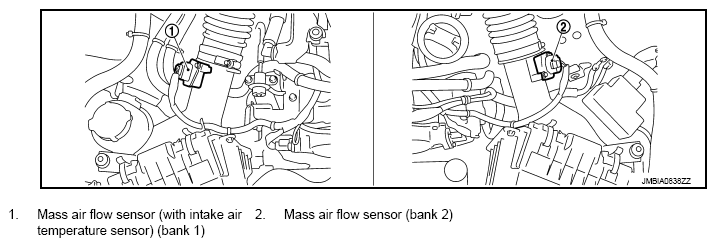

Fig 2: Identifying Automatic Speed Control Device Components Location (2 Of 22)

G08757630

Courtesy of NISSAN NORTH AMERICA, INC.

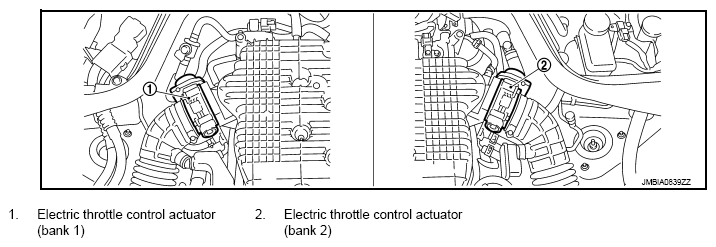

Fig 3: Identifying Automatic Speed Control Device Components Location (3 Of 22)

G08757631

Courtesy of NISSAN NORTH AMERICA, INC.

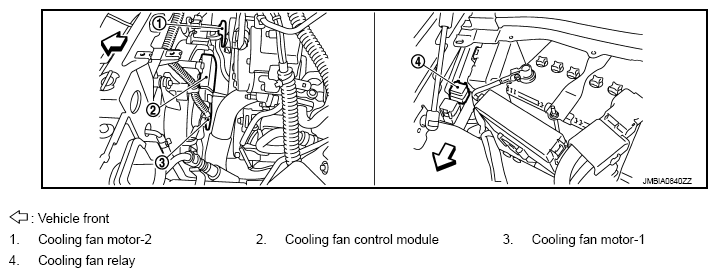

Fig 4: Identifying Automatic Speed Control Device Components Location (4 Of 22)

G08757632

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Automatic Speed Control Device Components Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

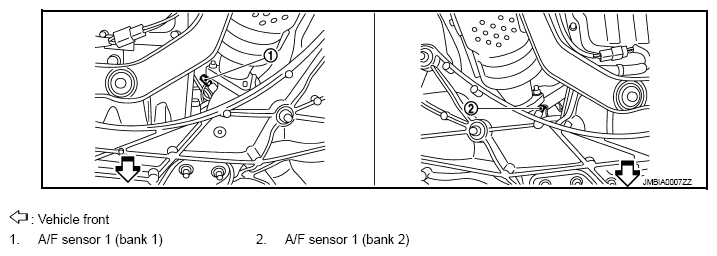

Fig 6: Identifying Automatic Speed Control Device Components Location (6 Of 22)

G08757634

Courtesy of NISSAN NORTH AMERICA, INC.

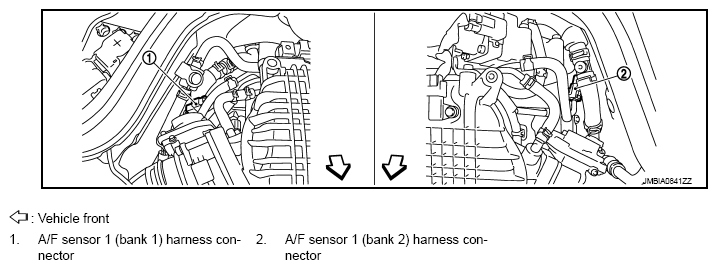

Fig 7: Identifying Automatic Speed Control Device Components Location (7 Of 22)

G08757635

Courtesy of NISSAN NORTH AMERICA, INC.

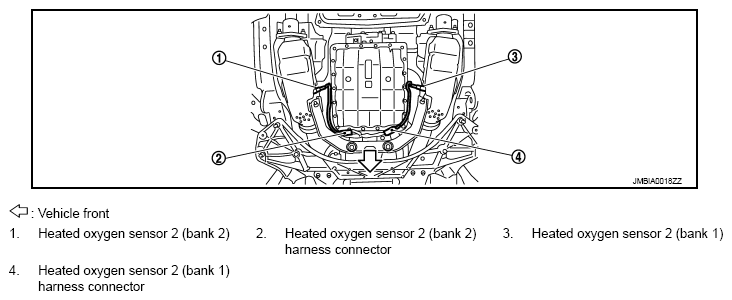

Fig 8: Identifying Automatic Speed Control Device Components Location (8 Of 22)

G08757636

Courtesy of NISSAN NORTH AMERICA, INC.

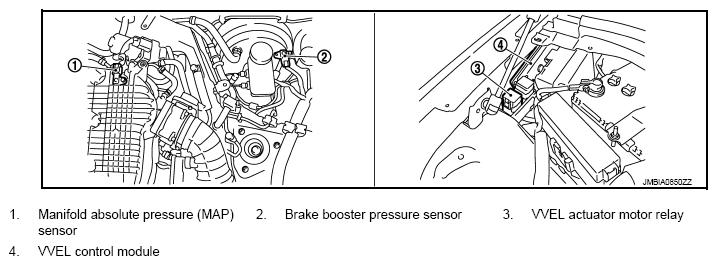

Fig 9: Identifying Automatic Speed Control Device Components Location (9 Of 22)

G08757637

Courtesy of NISSAN NORTH AMERICA, INC.

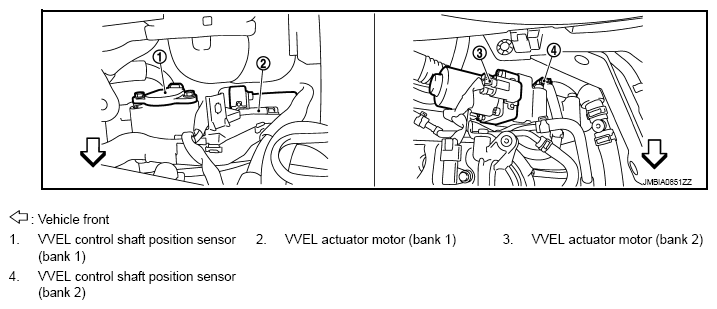

Fig 10: Identifying Automatic Speed Control Device Components Location (10 Of 22)

G08757638

Courtesy of NISSAN NORTH AMERICA, INC.

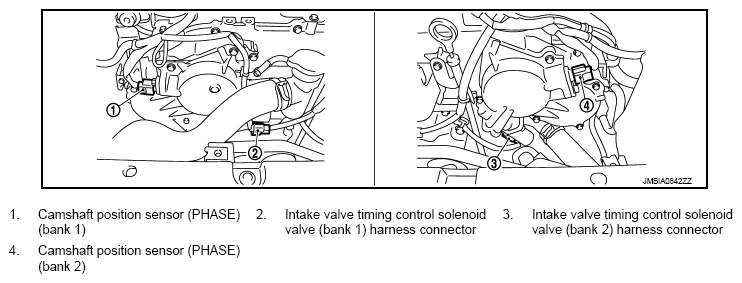

Fig 11: Identifying Automatic Speed Control Device Components Location (11 Of 22)

G08757639

Courtesy of NISSAN NORTH AMERICA, INC.

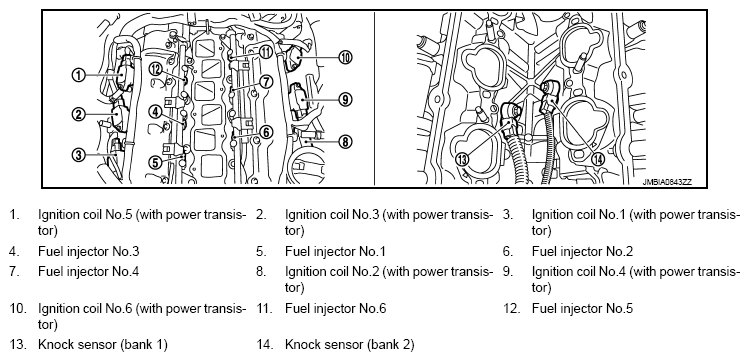

Fig 12: Identifying Automatic Speed Control Device Components Location (12 Of 22)

G08757640

Courtesy of NISSAN NORTH AMERICA, INC.

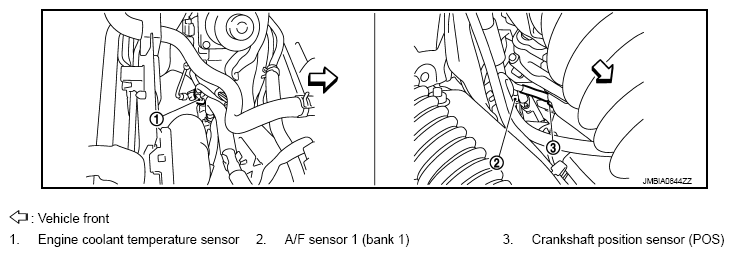

Fig 13: Identifying Automatic Speed Control Device Components Location (13 Of 22)

G08757641

Courtesy of NISSAN NORTH AMERICA, INC.

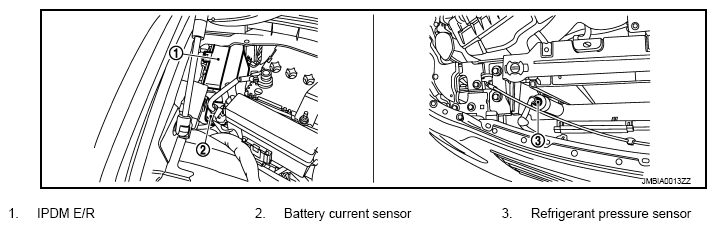

Fig 14: Identifying Automatic Speed Control Device Components Location (14 Of 22)

G08757642

Courtesy of NISSAN NORTH AMERICA, INC.

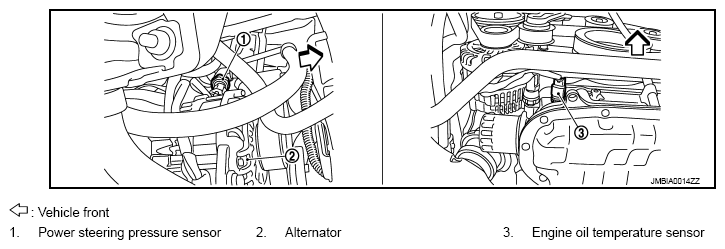

Fig 15: Identifying Automatic Speed Control Device Components Location (15 Of 22)

G08757643

Courtesy of NISSAN NORTH AMERICA, INC.

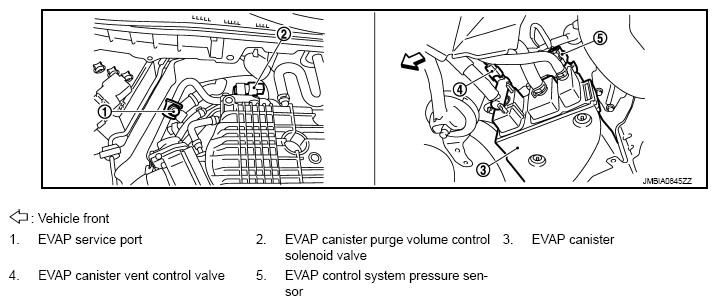

Fig 16: Identifying Automatic Speed Control Device Components Location (16 Of 22)

G08757644

Courtesy of NISSAN NORTH AMERICA, INC.

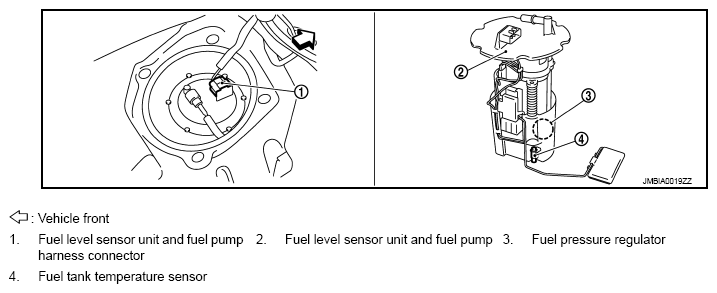

Fig 17: Identifying Automatic Speed Control Device Components Location (17 Of 22)

G08757645

Courtesy of NISSAN NORTH AMERICA, INC.

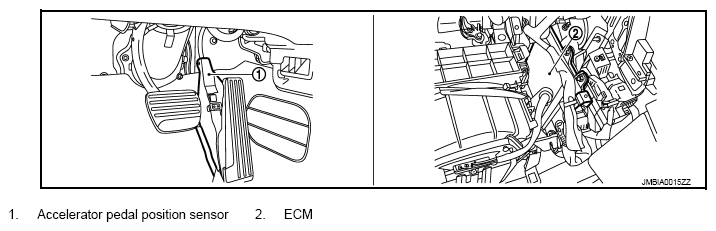

Fig 18: Identifying Automatic Speed Control Device Components Location (18 Of 22)

G08757646

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Automatic Speed Control Device Components Location (19 Of 22)

G08757647

Courtesy of NISSAN NORTH AMERICA, INC.

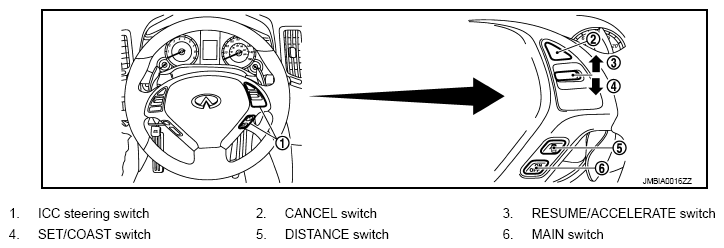

Fig 20: Identifying Automatic Speed Control Device Components Location (20 Of 22)

G08757648

Courtesy of NISSAN NORTH AMERICA, INC.

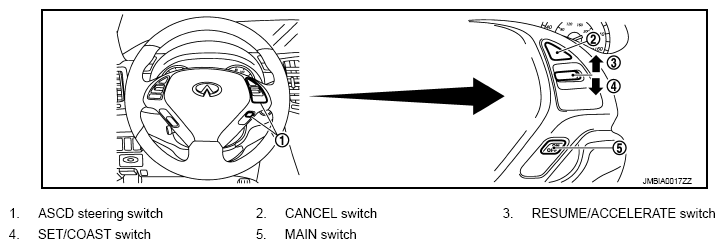

Fig 21: Identifying Automatic Speed Control Device Components Location (21 Of 22)

G08757649

Courtesy of NISSAN NORTH AMERICA, INC.

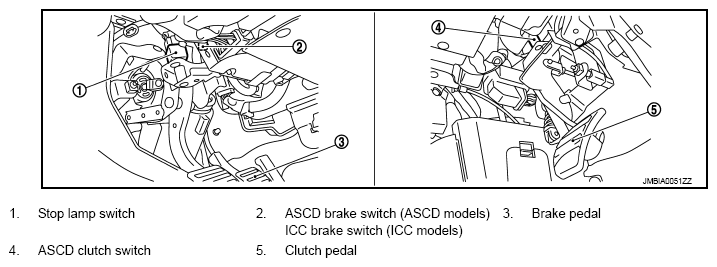

Fig 22: Identifying Automatic Speed Control Device Components Location (22 Of 22)

G08757650

Courtesy of NISSAN NORTH AMERICA, INC.
