Component Parts Location

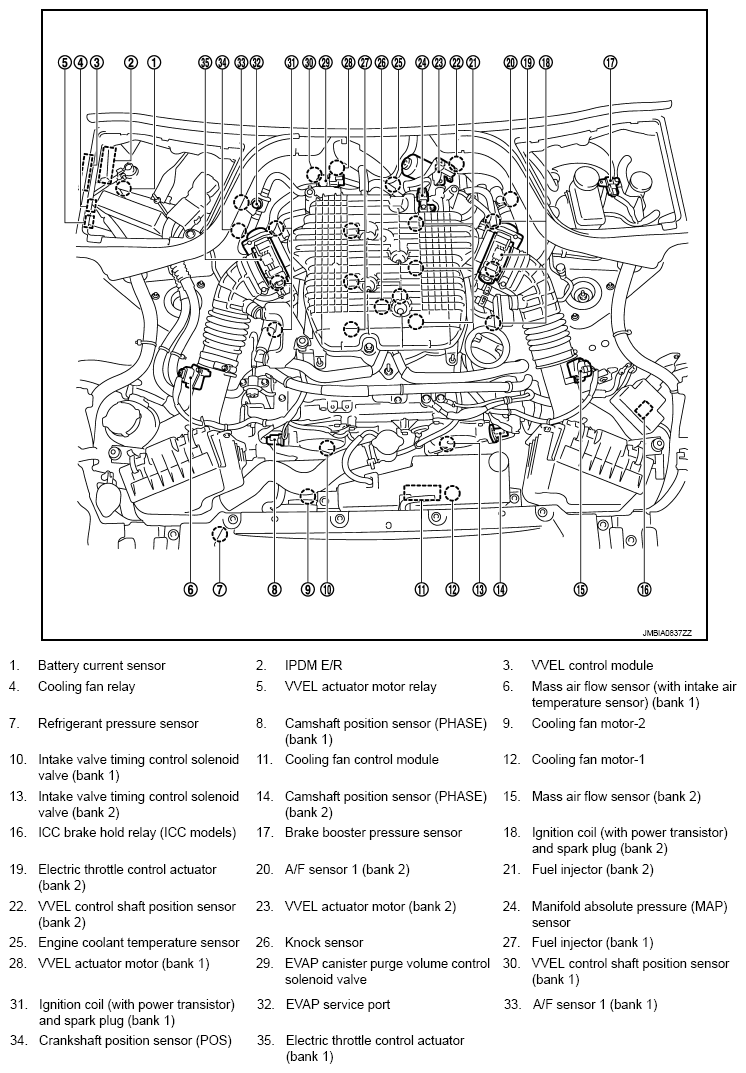

Fig 1: Identifying Intake Valve Timing Control Components Location (1 Of 22)

G08757725

Courtesy of NISSAN NORTH AMERICA, INC.

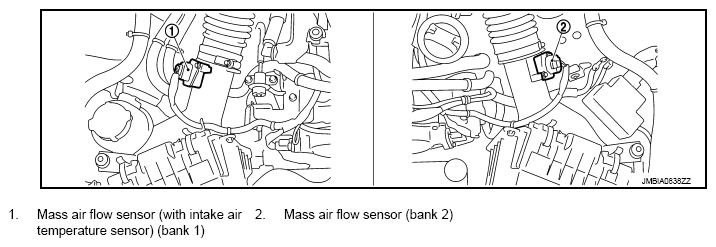

Fig 2: Identifying Intake Valve Timing Control Components Location (2 Of 22)

G08757726

Courtesy of NISSAN NORTH AMERICA, INC.

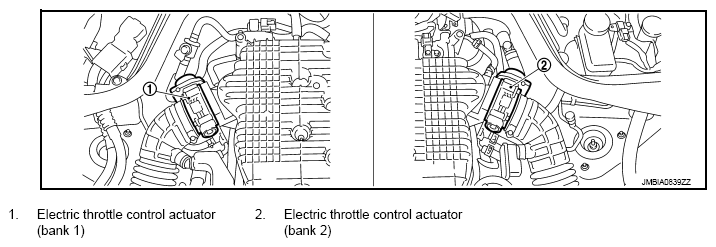

Fig 3: Identifying Intake Valve Timing Control Components Location (3 Of 22)

G08757727

Courtesy of NISSAN NORTH AMERICA, INC.

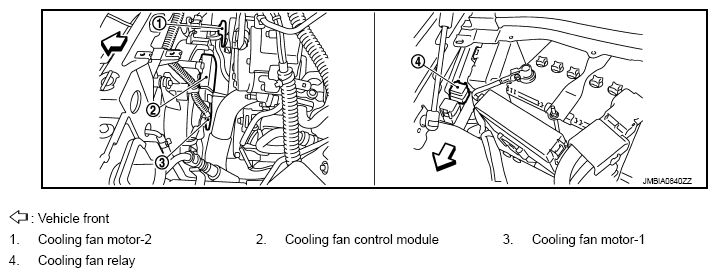

Fig 4: Identifying Intake Valve Timing Control Components Location (4 Of 22)

G08757728

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Intake Valve Timing Control Components Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

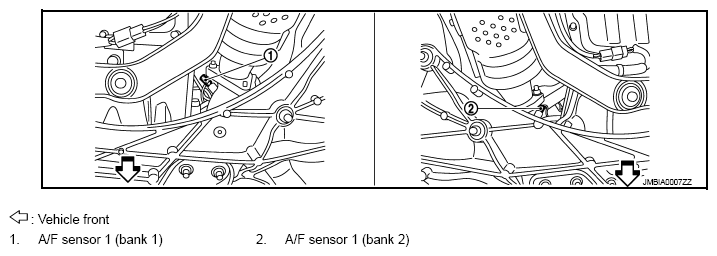

Fig 6: Identifying Intake Valve Timing Control Components Location (6 Of 22)

G08757730

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Intake Valve Timing Control Components Location (7 Of 22)

G08757731

Courtesy of NISSAN NORTH AMERICA, INC.

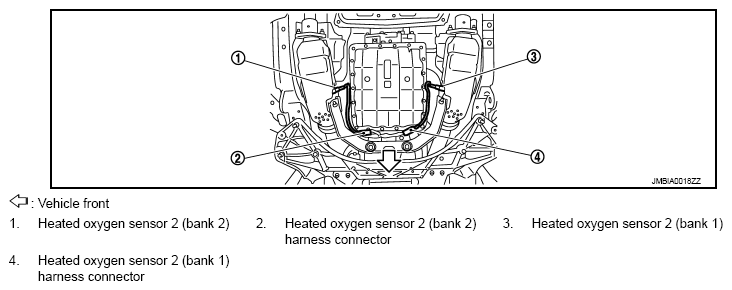

Fig 8: Identifying Intake Valve Timing Control Components Location (8 Of 22)

G08757732

Courtesy of NISSAN NORTH AMERICA, INC.

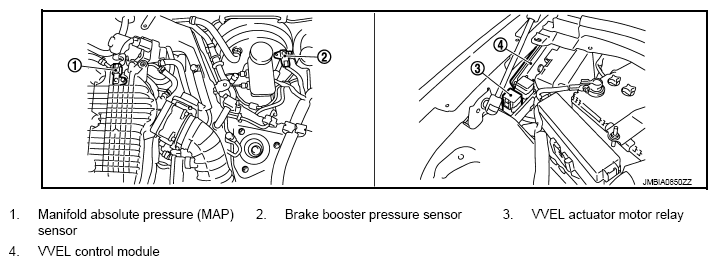

Fig 9: Identifying Intake Valve Timing Control Components Location (9 Of 22)

G08757733

Courtesy of NISSAN NORTH AMERICA, INC.

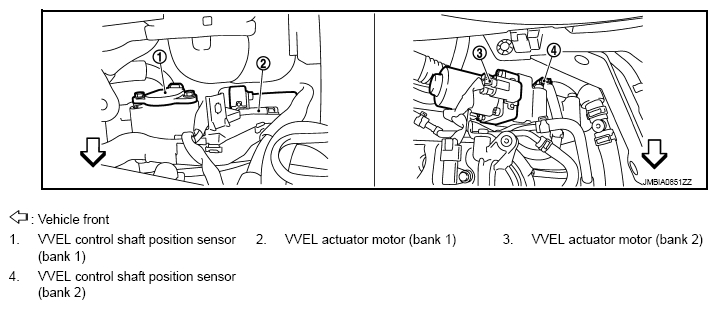

Fig 10: Identifying Intake Valve Timing Control Components Location (10 Of 22)

G08757734

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Intake Valve Timing Control Components Location (11 Of 22)

G08757735

Courtesy of NISSAN NORTH AMERICA, INC.

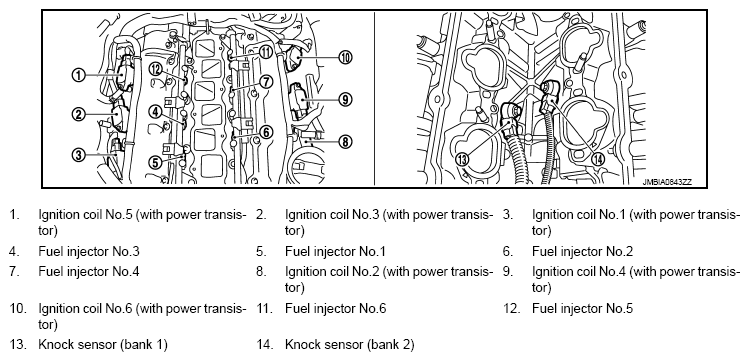

Fig 12: Identifying Intake Valve Timing Control Components Location (12 Of 22)

G08757736

Courtesy of NISSAN NORTH AMERICA, INC.

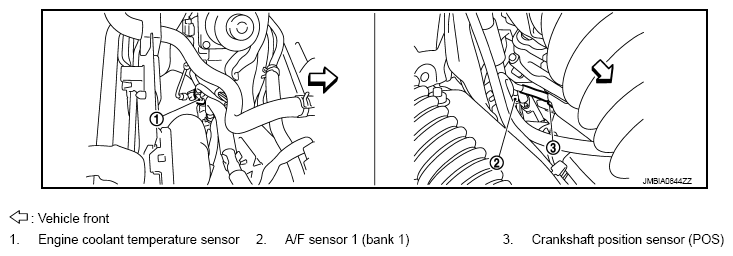

Fig 13: Identifying Intake Valve Timing Control Components Location (13 Of 22)

G08757737

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Intake Valve Timing Control Components Location (14 Of 22)

G08757738

Courtesy of NISSAN NORTH AMERICA, INC.

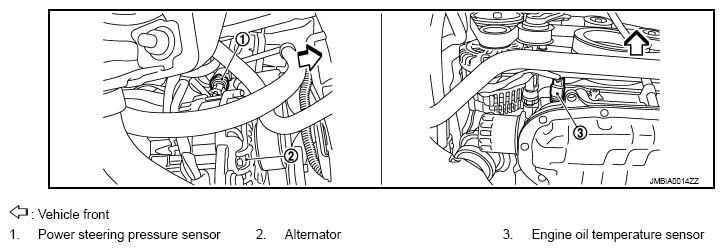

Fig 15: Identifying Intake Valve Timing Control Components Location (15 Of 22)

G08757739

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Intake Valve Timing Control Components Location (16 Of 22)

G08757740

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Intake Valve Timing Control Components Location (17 Of 22)

G08757741

Courtesy of NISSAN NORTH AMERICA, INC.

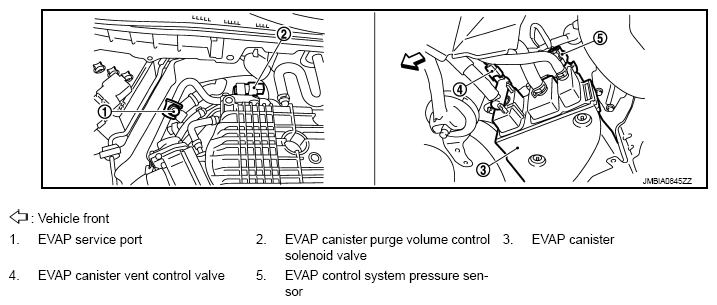

Fig 18: Identifying Intake Valve Timing Control Components Location (18 Of 22)

G08757742

Courtesy of NISSAN NORTH AMERICA, INC.

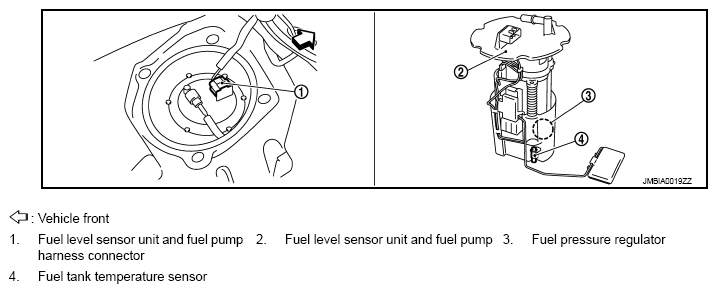

Fig 19: Identifying Intake Valve Timing Control Components Location (19 Of 22)

G08757743

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Intake Valve Timing Control Components Location (20 Of 22)

G08757744

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Intake Valve Timing Control Components Location (21 Of 22)

G08757745

Courtesy of NISSAN NORTH AMERICA, INC.

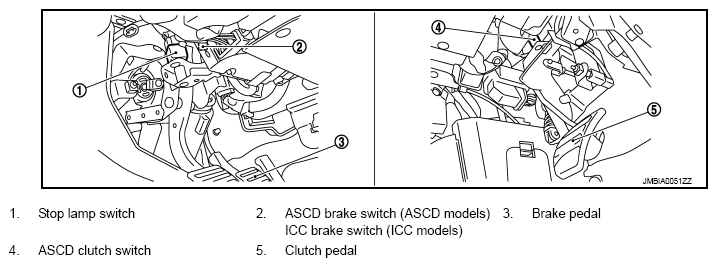

Fig 22: Identifying Intake Valve Timing Control Components Location (22 Of 22)

G08757746

Courtesy of NISSAN NORTH AMERICA, INC.
