Exploded View

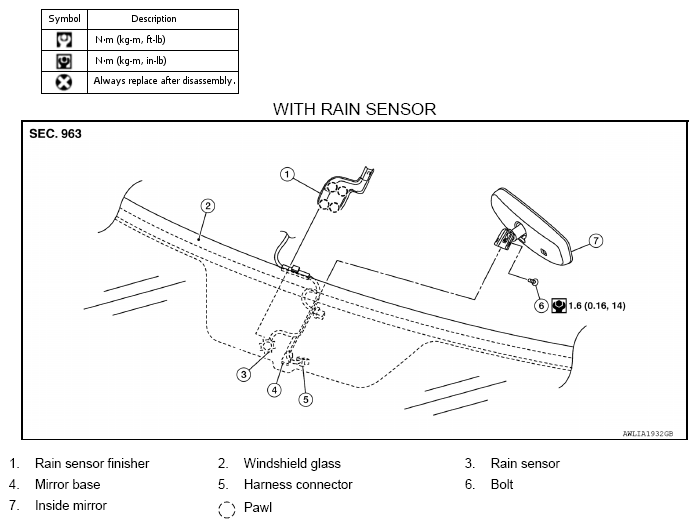

Fig 1: Exploded View Of Inside Mirror (With Rain Sensor)
G08856962Courtesy of NISSAN NORTH AMERICA, INC.

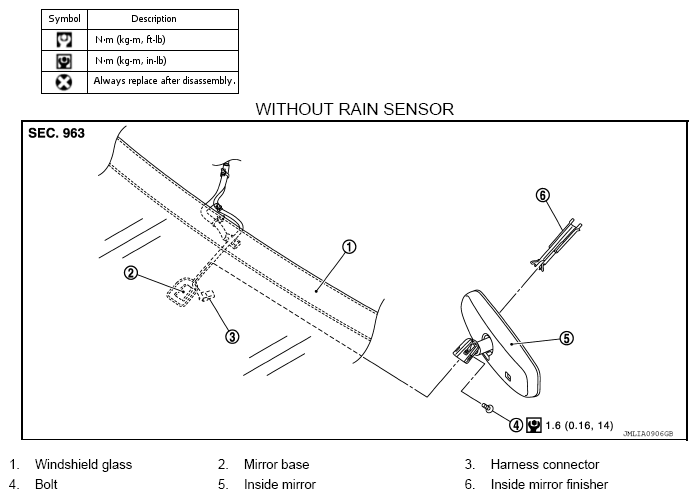

Fig 2: Exploded View Of Inside Mirror (Without Rain Sensor)
G08856963Courtesy of NISSAN NORTH AMERICA, INC.
