Engine Control System (Introduction) (VQ37VHR)
>>
System Description
>>
System
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

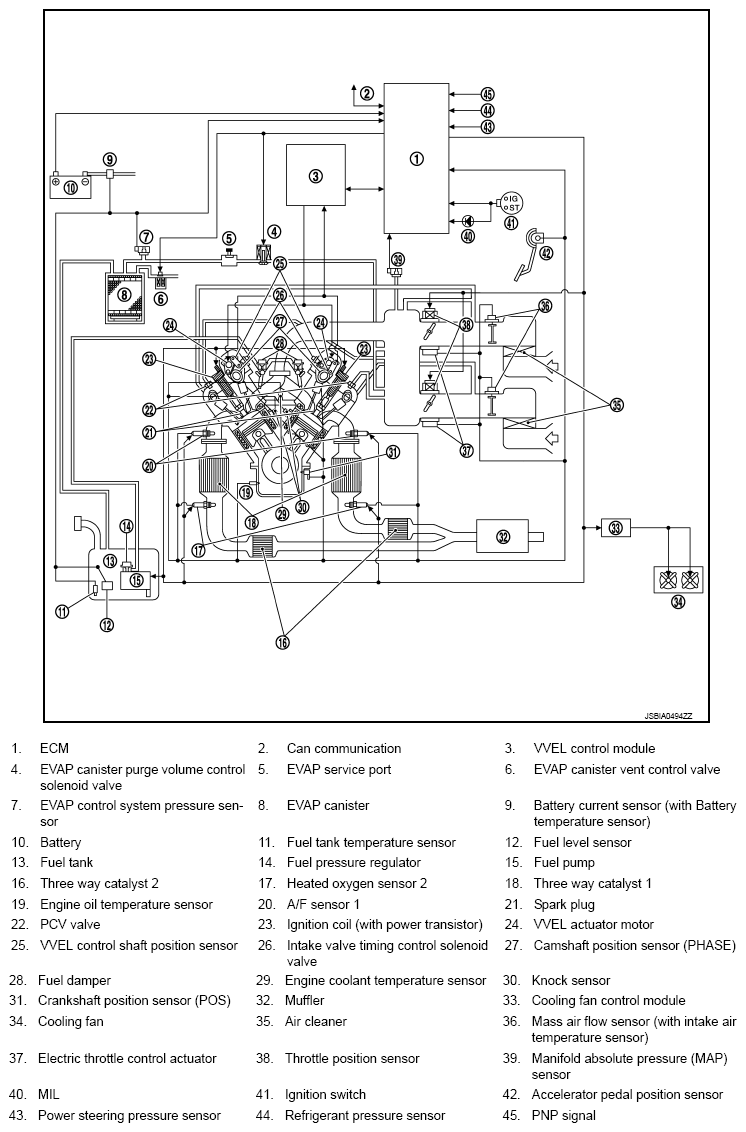

ENGINE CONTROL SYSTEM: System Diagram
Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
