Component Description

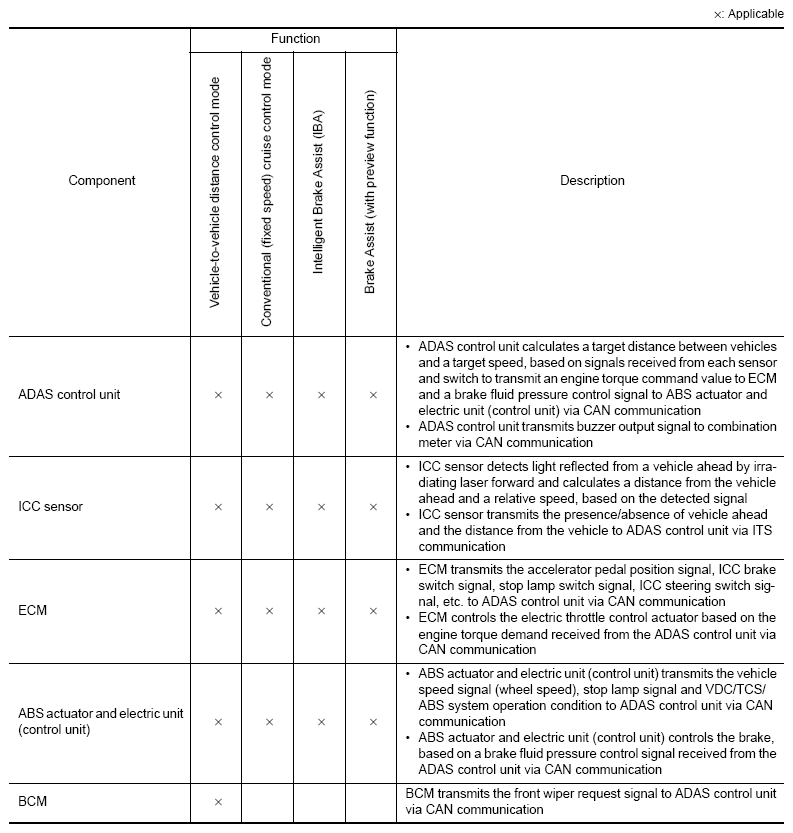

Fig 1: Intelligent Brake Assist System Component Description Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

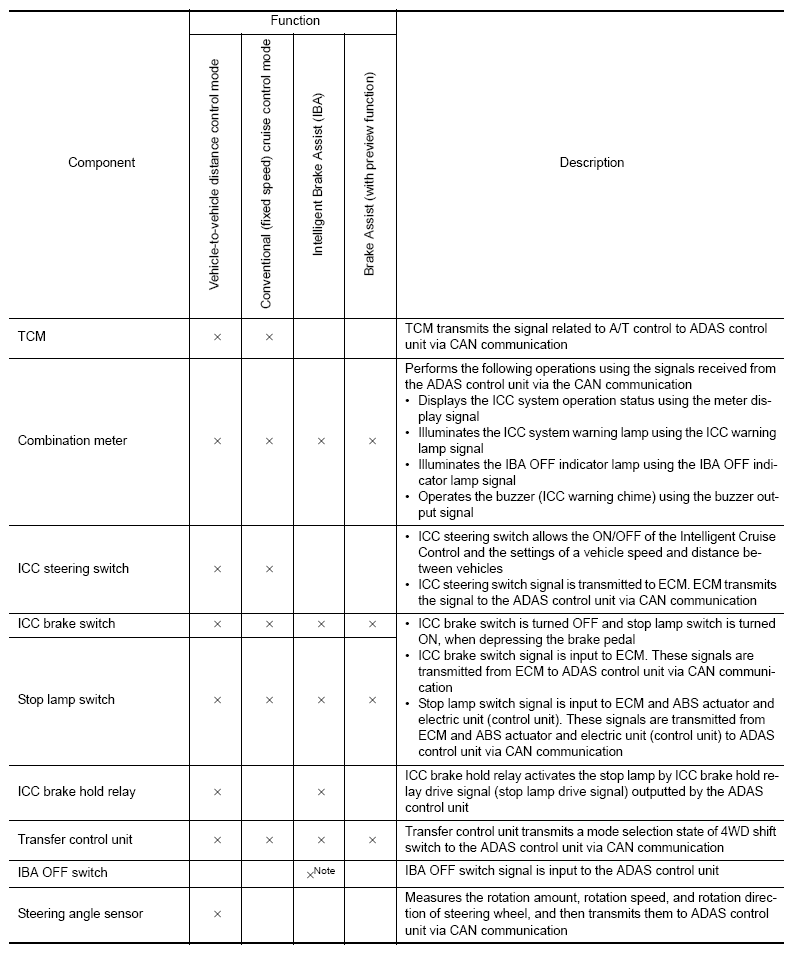

Fig 2: Intelligent Brake Assist System Component Description Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Only IBA system uses
