Exploded View

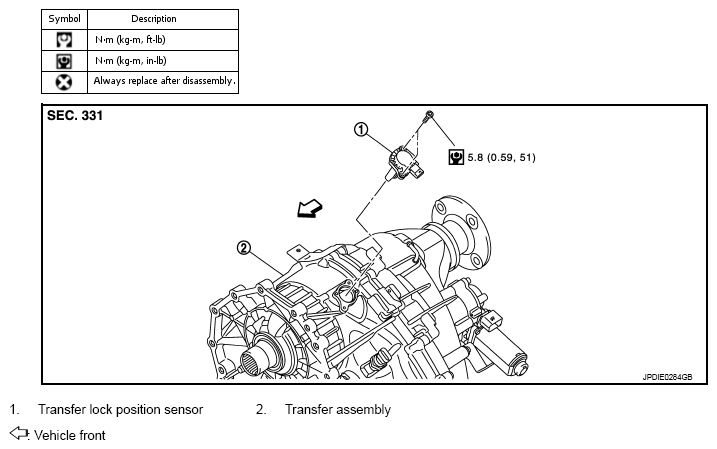

Fig 1: Transfer Lock Position Sensor With Torque Specifications
G08855519Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
