Exploded View

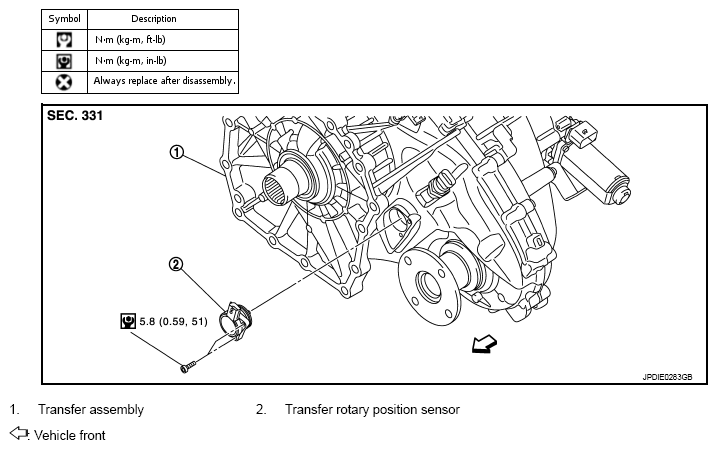

Fig 1: Exploded View Of Transfer Rotary Position Sensor With Torque Specification
G08855515Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
