Exploded View

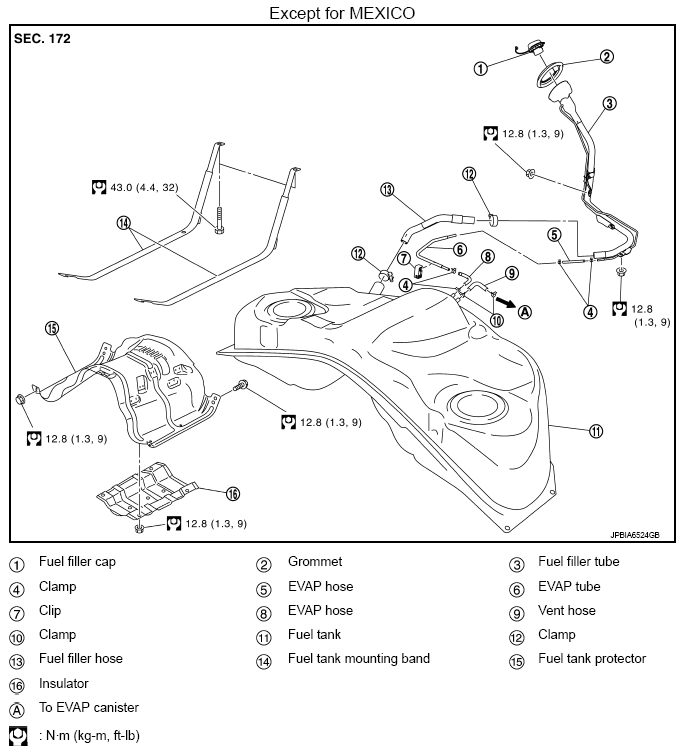

Fig 1: Exploded View Of Fuel Tank (Except For Mexico)
G09160207Courtesy of NISSAN NORTH AMERICA, INC.

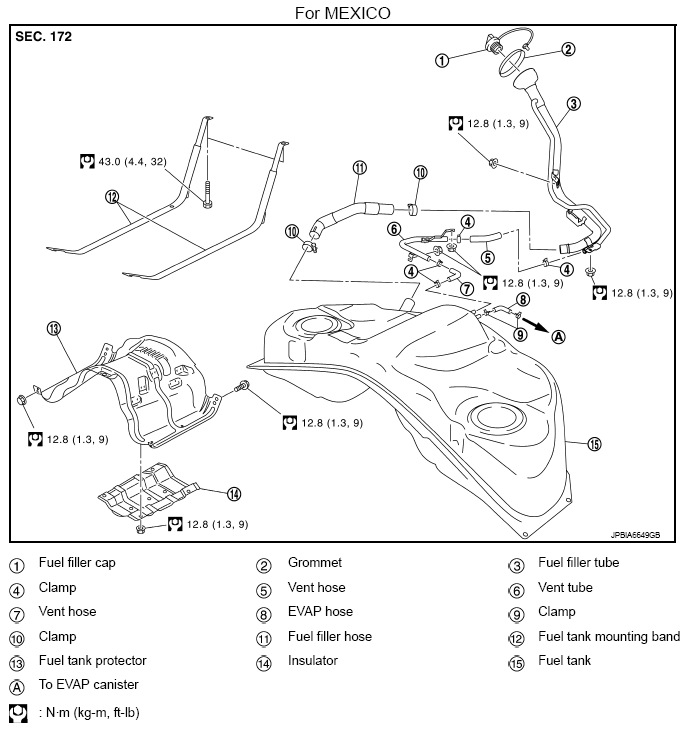

Fig 2: Exploded View Of Fuel Tank (For Mexico)
G09160208Courtesy of NISSAN NORTH AMERICA, INC.
