DTC Detection Logic

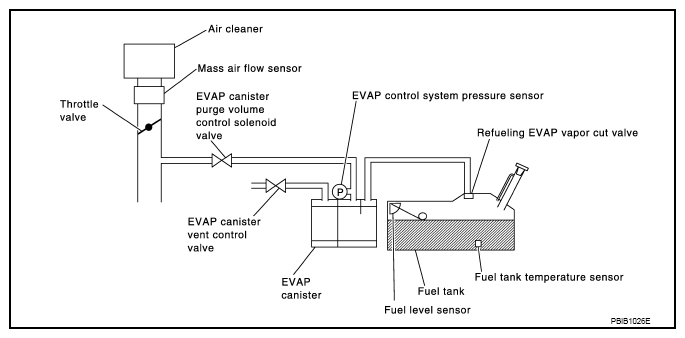

In this evaporative emission (EVAP) control system, purge flow occurs during non-closed throttle conditions. Purge volume is related to air intake volume. Under normal purge conditions (non-closed throttle), the EVAP canister purge volume control solenoid valve is open to admit purge flow. Purge flow exposes the EVAP control system pressure sensor to intake manifold vacuum.
Under normal conditions (non-closed throttle), sensor output voltage indicates if pressure drop and purge flow are adequate. If not, a malfunction is determined.
DTC DETECTION CONDITION
| DTC No. | CONSULT screen terms (Trouble diagnosis content) | DTC detecting condition |
|---|---|---|
| P0441 | EVAP PURG FLOW/MON (Evaporative emission system incorrect purge flow) | EVAP control system does not operate properly, EVAP control system has a leak between intake manifold and EVAP control system pressure sensor. |
