System Description
>>
Power Window System
>>
Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Parts Location

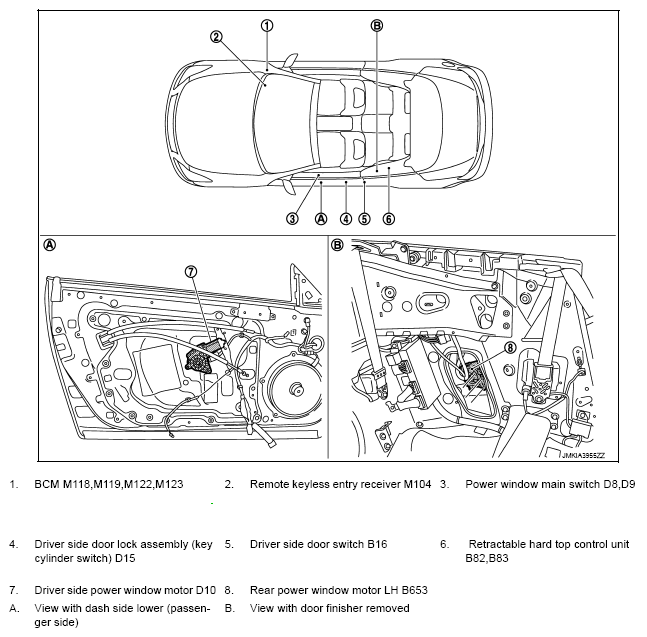

Fig 1: Power Window Control System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
