Q60 Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System (Convertible)
>>
Removal And Installation
>>
Steering Wheel
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

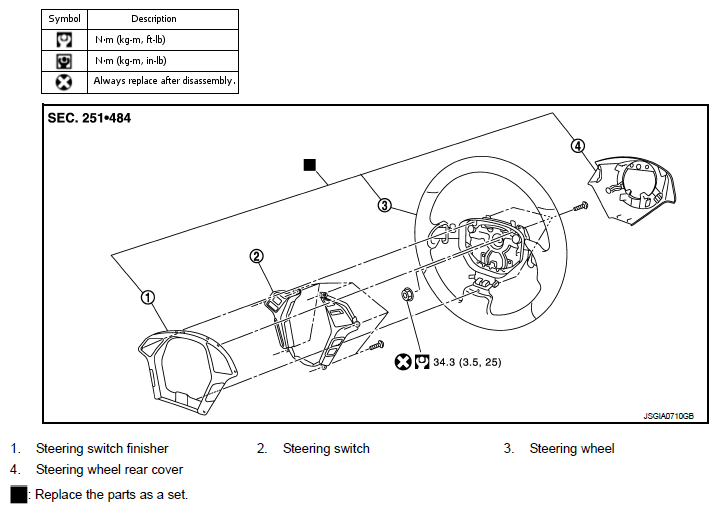

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
