Rear Regulator
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

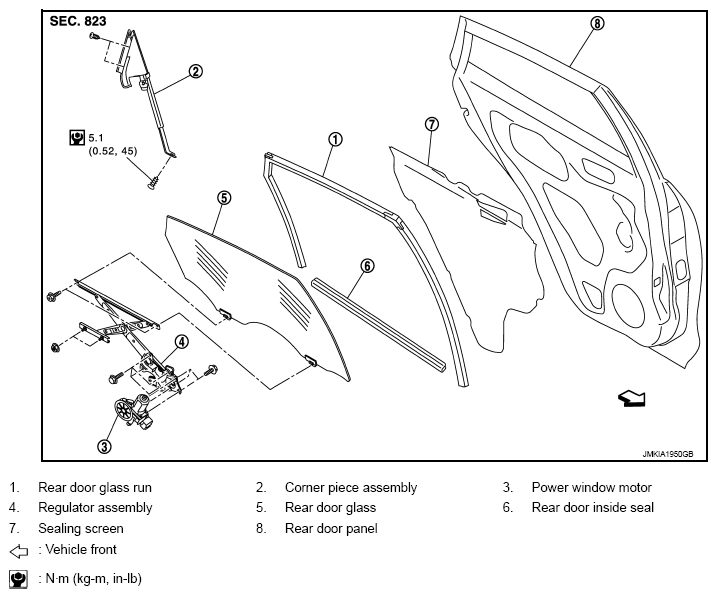

Fig 1: Exploded View Of Rear Regulator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
