Exploded View

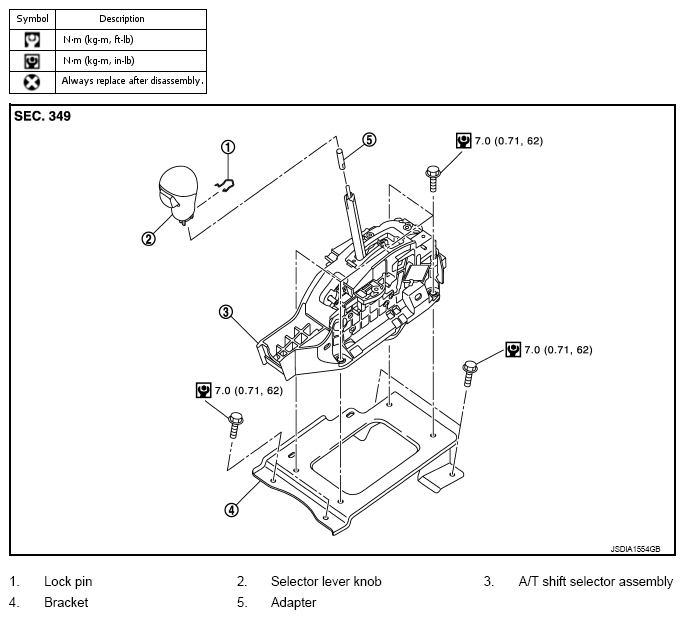

Fig 1: Exploded View Of A/T Shift Selector With Torque Specifications
G09178252Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
