A/T CONTROL SYSTEM: System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/T CONTROL SYSTEM: System Diagram

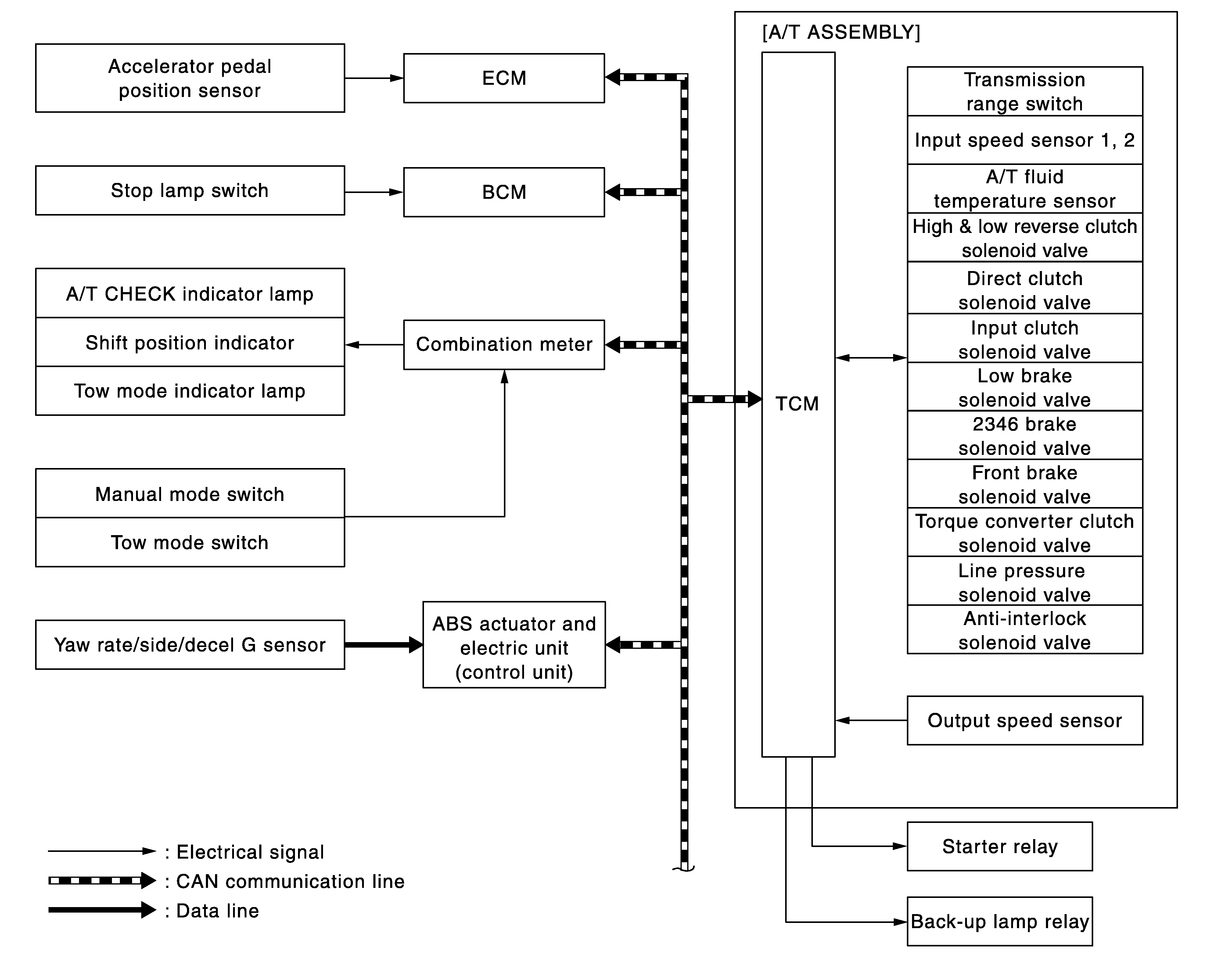

Fig 1: A/T Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
